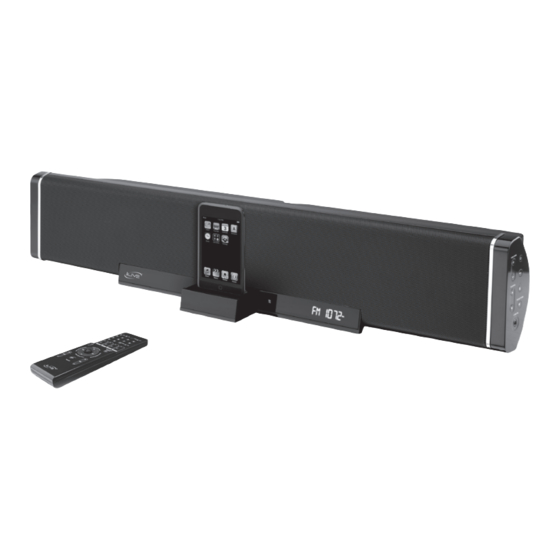

Bar speaker for ipod
Hide thumbs Also See for IT188B:
Table of Contents

Advertisement

Quick Links

USER'S GUIDE
V:1401-0813-10
IT188B
Bar Speaker for iPod
For the most up-to-date version of this User's Guide, go to www.ilive.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IT188B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iLive IT188B

Summary of Contents for iLive IT188B

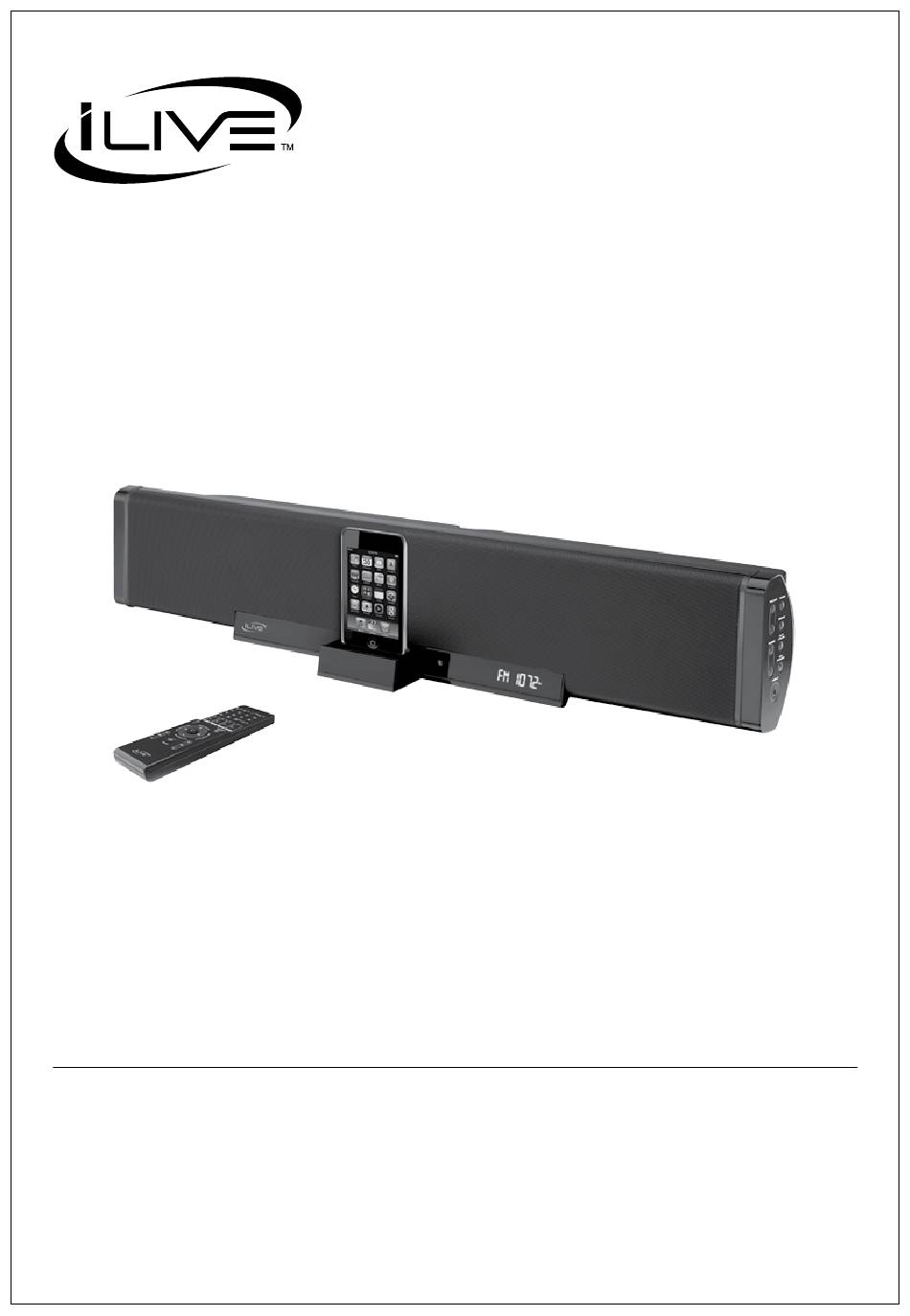

  • Page 1 USER’S GUIDE V:1401-0813-10 IT188B Bar Speaker for iPod For the most up-to-date version of this User’s Guide, go to www.ilive.net...

  • Page 2: Warnings And Precautions

    Warnings and Precautions • CAUTION: TO PREVENT ELECTRIC SHOCK, • WARNING: Lithium batteries, like all rechargeable MATCH WIDE BLADE OF PLUG TO WIDE SLOT, batteries are recyclable and should be recycled or FULLY INSERT. disposed of in normal household waste. Contact your local government for disposal or recycling practices in • WARNING: To reduce the risk of fire or electric shock, your area.

  • Page 3: Important Safety Instructions

    Important Safety Instructions Read these Instructions. FCC Warnings Keep these Instructions. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s Heed all Warnings. authority to operate the equipment. Follow all instructions. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Do not use this apparatus near water.

  • Page 4: Bar Speaker For Ipod

    Bar Speaker for iPod Features • Made for iPod • Plays and charges iPod • Motoried dock for iPod • 2.1 channel system • Magnetically shielded full-range stereo speakers • Integrated subwoofer • AM/FM radio • Station memory presets (10) •...

  • Page 5: Table Of Contents

    Table of Contents Bar Speaker for iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Features Included Table of Contents .

  • Page 6: Introduction

    Introduction LCD DIspLAy MotorIzeD DoCk For ipod CoMposIte VIDeo output suBWooFer output reset Button FM AntennA ConneCtIon Press the Reset rCA stereo AuDIo Button using a paper outputs AM AntennA clip or like object to ConneCtIon rCA stereo AuDIo restore the unit to it’s Inputs default settings.
  • Page 7 Mute sourCe Press to decrease the Press to switch between audio output volume AM/FM radio, iPod, AV1, on the unit entirely. and AV2 modes. FUNCTION MUTE poWer ipod DrAWer Press to turn the unit off Press to open or close and on.

  • Page 8: Setup

    Setup power Plug the attached AC cord into a standard AC power outlet to power the bar speaker. remote power Requires 2 AAA batteries (included)

  • Page 9: Ipod

    iPod Docking an ipod Locate the numbered adapter that fits the iPod that will be docked. Each included adapter has a number on it, indicating which iPod model that adapter is compatible with. See the separate adapter chart to identify which adapter is needed.

  • Page 10: Clock

    Clock setting the Clock With the unit powered off, press the tIMe set button on the remote The hour will begin to blink on the LCD display, indicating it can be adjusted. Press the FWD and rWD buttons to adjust the hour. Press the tIMe set button.

  • Page 11: Radio

    Radio saving a station as a preset from the tuning the AM/FM radio Bar speaker Press the poWer button to turn the Follow the instructions for Tuning the bar speaker on. AM/FM Radio. Press the sourCe button to switch Press and hold the pLAy button. the bar speaker to radio mode.

  • Page 12: Video

    Video Composite Video output When connecting two products using an RCA Cable, match the colored ports with Audio In Video In the same colored connection. (Red to Red, White to White, and Yellow to Yellow) Connect the RCA Cable to the Stereo RCA Outputs and RCA Composite Video Output on the unit, and to the audio/video inputs on the Television.

  • Page 13: Audio

    Audio rCA stereo Audio Inputs Television, DVD Player, When connecting two products using an Set-Top Box, or Game System RCA Cable, match the colored ports with the same colored connection. (Red to Red, White to White, and Yellow to Yellow) Audio Out Audio Out Connect a stereo RCA cable (not...

  • Page 14: Mounting The Bar Speaker

    Mounting the Bar Speaker Important notes We recommend having this bar speaker professionally mounted. The included spacers should be used at your discretion to extend the face of the bar speaker farther from the wall. These are typically used when mounting the bar speaker under a television, and the face of the bar speaker needs to be flush with the face of the television.

  • Page 15: Getting Started

    Mark the wall at the center of the studs using the PENCIL. Line the level up on both of your marks to make sure they are level. If they’re IT188B not, adjust the marks as needed to make them level. After you’ve double checked your...

  • Page 16: Company Information

    Spanish, or French, visit the support section at www.ilive.net. Para transferir esta guía de usuario en inglés, español, o francés, visite la sección de la ayuda en www.ilive.net. Pour télécharger ce guide de l’utilisateur en anglais, espagnol, ou français, visitez la section de soutien chez www.ilive.net.
