IH328B
INSTRUCTION MANUAL
Contents
Warnings and Precautions ............................................................................... 2
Important Safety Instructions ............................................................................ 3
In the Box & Features ....................................................................................... 4
Powering the Unit & Connecting the Speakers ................................................ 5
Listening to the AM/FM Radio .......................................................................... 8
Saving AM/FM Radio Stations to the Unit's Memory ........................................ 8
Setting the Clock & Setting the Timer ............................................................... 9
Using the Video Output .................................................................................. 10
Connecting to an Audio Player using the Aux Input ....................................... 10
Changing the Remote Battery .........................................................................11
Location of Controls & Control Definitions ................................................. 12-19
Service Information......................................................................................... 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IH328B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iLive IH328B

Summary of Contents for iLive IH328B

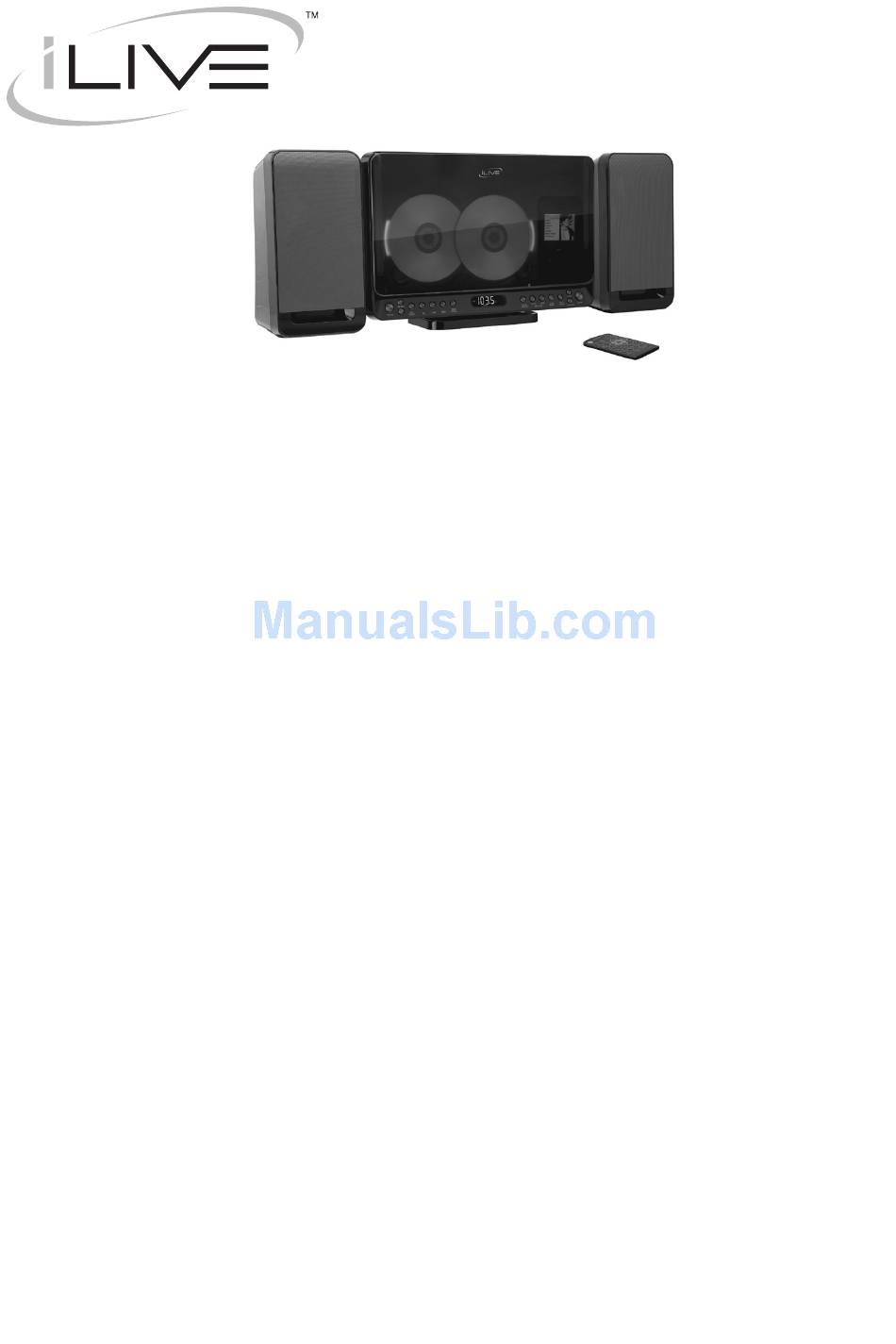

  • Page 1: Table Of Contents

    IH328B INSTRUCTION MANUAL Contents Warnings and Precautions ... 2 Important Safety Instructions ... 3 In the Box & Features ... 4 Powering the Unit & Connecting the Speakers ... 5 Docking an iPod & Playing a docked iPod ... 6 Playing a CD &...

  • Page 2: Warnings And Precautions

    Warnings and Precautions TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. This symbol, located on back or bottom of the unit, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 3: Important Safety Instructions

    Important Safety Instructions 1. Read Instructions - All the safety and operating instruction should be read before the product is operated. . Retain Instructions - The safety and operating instruction should be retained for future reference. 3. Heed Warnings - All warning on the product and in the operating instructions should be adhered to.

  • Page 4: In The Box & Features

    In the Box Speaker Features Certified iPod Connector installed for iPod docking Recharge Circuit for iPod/mini/nano/ photo/video Controls connected iPod players iPod Authentication IC installed CD Playback Vertical-Load -Disc Player Motorized Disc/iPod Dock Door Plays CD/CD-R/CD-RW Audio Tracks Programmable CD Tracks Song Skip &...

  • Page 5: Powering The Unit & Connecting The Speakers

    Powering the Unit Power the unit by connecting it to a standard AC outlet (10V ~ 60Hz) via the attached AC cord. Connecting the Speakers Connect the speakers by inserting the speakers wires into the speaker connection inputs. The color of the speaker wire needs to correspond to the color of the connection input.

  • Page 6: Docking An Ipod & Playing A Docked Ipod

    Docking an iPod 1. Locate the numbered Bracket that fits the iPod that will be docked. Each included Bracket has a number on it, indicating which iPod model that bracket is compatible with. See the separate bracket chart page to identify which bracket is needed. . Press the Open/Close Button to open the CD/iPod door on the unit. 3. Snap the Bracket into place over the iPod connector in the Dock for iPod. All Brackets will only fit one way onto the Dock.

  • Page 7: Playing A Cd & Programming A Cd

    Playing a CD 1. Press the Standby Button to turn the unit on. . Press the Open/Close Button to open the CD/iPod door. 3. Load a CD into the CD player. Press the Open/Close Button to close the CD/iPod door. Always load the CD into the left opening first. A second CD should only be loaded into the CD opening on the right.

  • Page 8: Listening To The Am/Fm Radio

    Listening to the AM/FM Radio 1. Press the Standby Button to turn the unit on. . Press the Function Button to switch the unit to radio mode. 3. Press the Stop/Band Button to switch between AM and FM radio. 4. Press the Skip/Search/Tune Buttons to tune the AM or FM radio. Saving AM/FM Radio Stations to the Unit’s Memory 1.

  • Page 9: Setting The Clock & Setting The Timer

    Setting the Clock 1. Press the Standby Button to turn the unit off. . Press and hold the Mem/Clk Adj Button. 3. Press the Skip/Search/Tune Buttons to select 1 hour or 4 hour. 4. Press the Mem/Clk Adj Button. 5. Press the Skip/Search/Tune Buttons to adjust the hour. 6.

  • Page 10: Using The Video Output

    Using the Video Output When connecting two products using an RCA Cable, match the colored ports with the same colored connection. (Red to Red, White to White, and Yellow to Yellow) 1. Connect an RCA Cable to the RCA Composite Video Output on the unit, and to the video input on the Television. . Turn the unit on by pressing the Standby Button. 3. Change the television to the correct video input setting. 4.

  • Page 11: Changing The Remote Battery

    Changing the Remote Battery WARNING: Danger of explosion if the remote control’s batteries are incorrectly installed. Replace only with the same or equivalent battery. Push the Release Button and pull out the Battery Compartment to access the battery. Replace the old battery with an equivalent new battery (CR05). The positive side of the battery, as indicated by a plus symbol, must be facing up when inserted into the remote.

  • Page 12: Location Of Controls & Control Definitions

    Location of Controls Location of Controls 1 Rep Disc Button Press the Rep Disc Button consecutively in CD mode to repeat all discs. Press the Rep Disc Button to display the time in radio mode. 2 Disc Select Button Press the Disc Select Button in CD mode to switch between disc 1 and disc . 3 Mem/Clk Adj Button Press the Mem/Clk Adj Button to save a radio station to the units memory.

  • Page 13: Control Definitions

    Control Definitions 4 Sleep/Timer Button Press the Sleep/Timer Button consecutively to set the sleep timer between 10 and 90 minutes. 5 EQ Button (Rock, Classic, Jazz, Pop) Press the EQ Button to switch between the units preset equalizer settings. 6 Volume Buttons Press the Volume Buttons to adjust the volume of the unit.
  • Page 14 Location of Controls...
  • Page 15 Control Definitions 15 External Speakers The External Speakers connect to the unit to amplify music or radio played from the unit. 16 Dual CD Player The Dual CD Player allows two CDs to be loaded into the unit at the same time. 17 AC Power Cord Use the AC Power Cord to plug the unit into a standard AC outlet (10V ~ 60Hz).
  • Page 16 Location of Controls...
  • Page 17 Control Definitions 24 Sleep/Timer Button Press the Sleep/Timer Button consecutively to set the sleep timer between 10 and 90 minutes. 25 Standby Button Press the Standby Button to turn the unit off and on. 26 Mute Button Press the Mute Button to mute the unit’s volume. 27 Play/Pause/Mem Up Button Press the Play/Pause/Mem Up Button to play or pause an loaded iPod or CD.
  • Page 18 Location of Controls...
  • Page 19 Control Definitions 36 Function Button Press the Function Button to switch between CD, radio, and aux mode. 37 Open Button Press the Open Button to open and close the CD/iPod door. 38 iPod Button Press the iPod Button to switch the unit to iPod mode. 39 Stop/Band Button Press the Stop Button to stop a CD during play.

  • Page 20: Service Information

    SRS Labs, Inc. All other trademarks appearing herein are the property of their respective owners. Para descargar este manual de instrucción en inglés, español, o francés visite la sección de la ayu- da en www.ilive.net. Pour télécharger manuel d’instruction en anglais, espagnol,...
