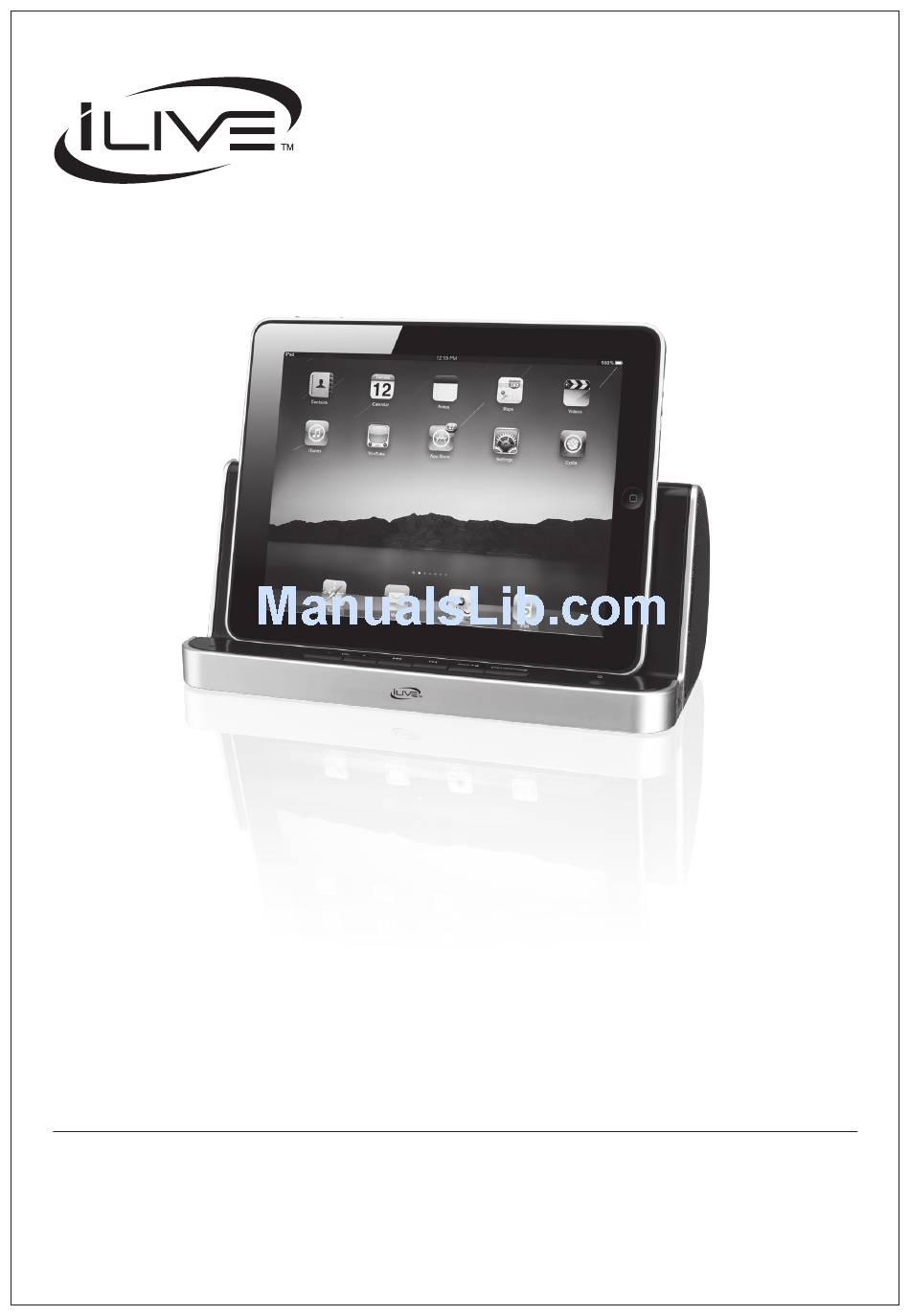

Meijer.com USER’S GUIDE V:1532-0830-11-450 ISB311B Bluetooth Speaker and Charging Station For the most up-to-date version of this User’s Guide, go to www.ilive.net...
Meijer.com Warnings and Precautions FCC Warnings • CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance • WARNING: Apparatus shall not be exposed to dripping could void the user’s authority to operate the equipment.
Meijer.com Bluetooth Speaker and Charging Station Features Included • Handsfree speakerphone • Micro-USB to USB cable • Echo cancellation • Mini-USB to USB cable • Supports Bluetooth v2.1 • AC/DC power adapter • Supports Enhanced Data Rate (EDR) • Warranty •...
Meijer.com Introduction Volume Press to increase or decrease the volume. Skip Press to skip between tracks. Pair/Play/Pause Press and hold to begin connecting a Bluetooth device. Press to play or pause. Speakerphone Press to activate the speakerphone function. Power Press to power the unit on or off.
Page 6
Meijer.com USB Port (5V500mA) USB Port (2.1 A) Pairing Indicator Power Indicator 3.5 mm Audio Input Requires a 3.5mm audio cable (not included). AC/DC Input...
Meijer.com Setup Power AC/DC power input: requires an AC/ DC power adapter (included). DC IN 5V LINE IN Power and Pairing Indicator Lights Status Power Indicator Pairing Indicator Power Off Solid red light No light Power On Solid green light Slowly flashing blue light Ready to Pair Solid green light...
3 feet of the unit. When pairing, remain within 3 feet of the unit. Using the native controls on your Bluetooth device, select the “ISB311B” Using the native controls on your in your Bluetooth settings to pair. Bluetooth device, select the “ISB311B”...
Meijer.com Using Bluetooth Playing Audio Wirelessly Using the Speakerphone Follow the instructions in Follow the instructions for Pairing a Bluetooth Device. Pairing a Bluetooth Device. When a call is received, a ringtone Use the native controls on will sound through the speakers. the connected Bluetooth Device to select a track.
Meijer.com Charging Charging a Device Make sure the unit is plugged into the wall. Using the appropriate USB charging cable (Micro-USB to USB and Mini-USB to USB cables included), connect one end to the device and the other to one of the two USB Ports on the unit.
Meijer.com 3.5 mm Audio Input Using the 3.5mm Audio Input Plug one end of a 3.5 mm audio input cable (not included) into the 3.5 mm Audio Input on the unit. Plug the other end of the cable into the audio output/headphone output on an MP3 Player or other audio source.
Para transferir esta guía de usuario en inglés, español, o francés, visite la sección de la ayuda en www.ilive.net. Pour télécharger ce guide de l’utilisateur Environmental Commitment to ‘Protect en anglais, espagnol, ou français, visitez for Today and Sustain for Tomorrow’...
