Summary of Contents for Mosaic Picket Rocker FSMVPT2089

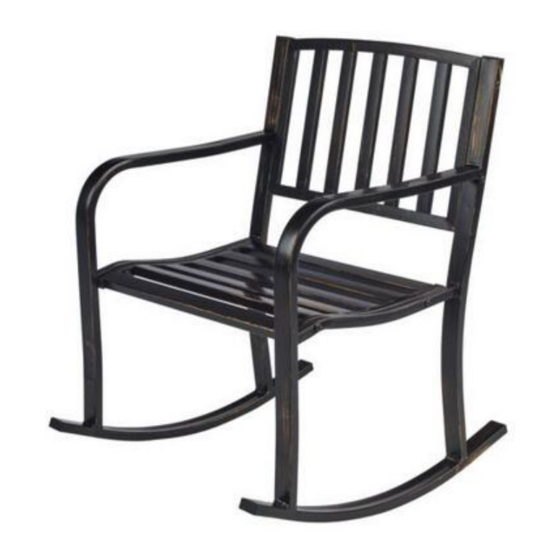

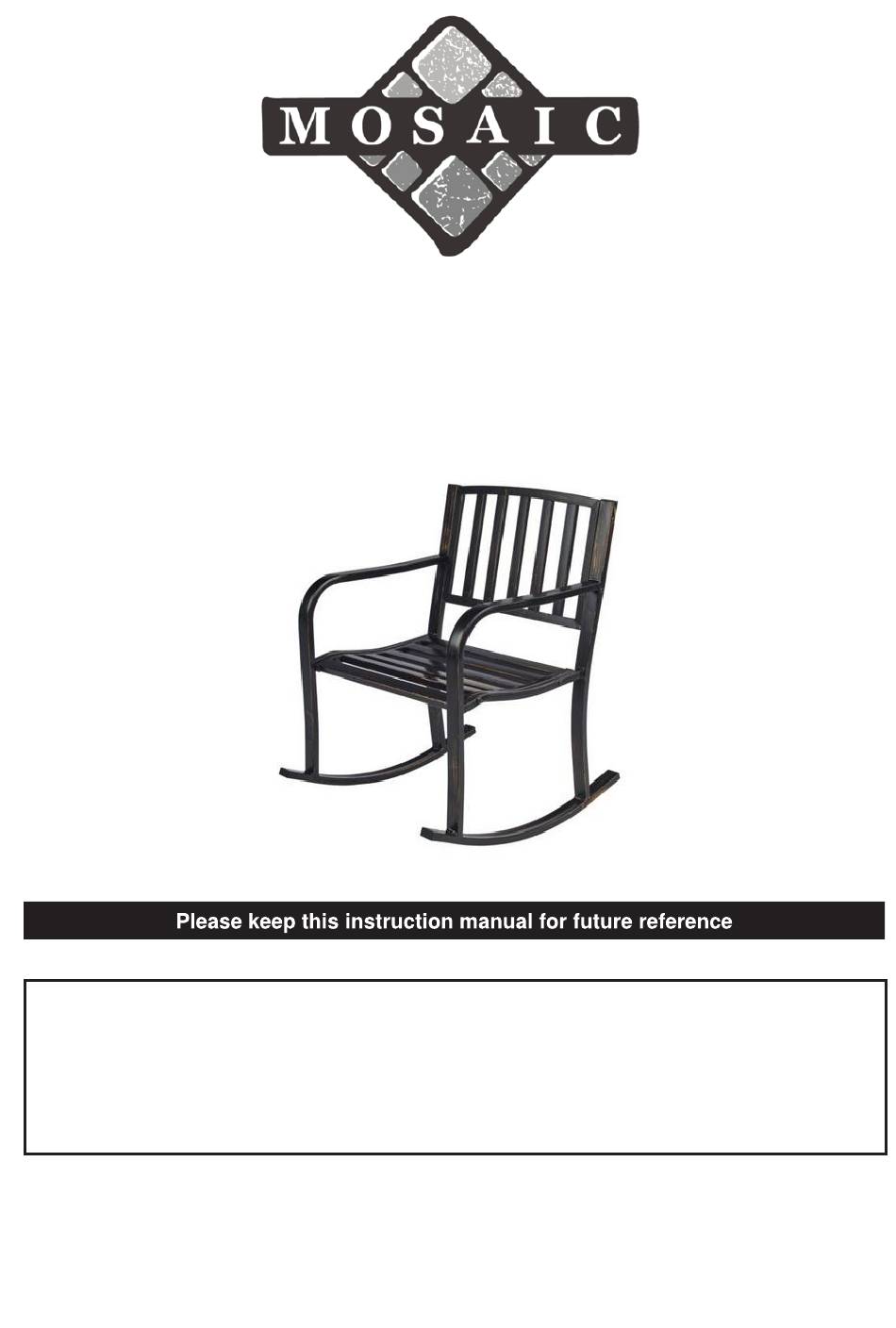

- Page 1 Assembly Instructions & User’s Manual Picket Rocker FSMVPT2089 Customer Service: (888) 922-2336, 7:00am to 12:00am CST (daily) Live Chat at: www. academy.com Email: customerservice@academy.com Made in China...
- Page 2 Table Of Contents Warnings ......................2 Tools and Parts....................2-3 Assembly Instructions..................4 Care and Maintenance..................5 Warranty Information..................5 Note: Before beginning assembly of product, make sure all parts are present. Compare parts with package content list and hardware contents above. If any part is missing or damaged do not attempt to assemble the unit.
- Page 3 This rocker requires adult assembly. Keep screws and parts away from children. Please read this manual before assembly or use. Do not tighten nuts or screws until assembly is complete. SKU#: 106762679 Style#: FSMVPT2089 Weight limit: 350 LB Tools Required (Included) Page 2 of 5...
- Page 4 Right leg Left leg Rocker seat Rocker back 70mm bolts 50mm bolts Hexagonal nuts Washers End caps Page 3 of 5...
- Page 5 Step 1: Attach the rocker back (D) to the left leg (B) using two 70mm bolts(E), two washers (H) and two hexagonal nuts (G). Repeat this step to attach the rocker back to the right leg (A). Hand tighten only. Step 2: Attach the rocker seat (C) to the left leg (B) using two 50mm bolts(F), two...
- Page 6 The rocker should be cleaned on a regular basis to promote safe use and prolong product life. Wipe the frame with a smooth damp cloth and air dry. Do not use abrasive cleaners as they may damage or scratch the surface paint. Do not leave this product in harsh weather conditions for extended periods.
