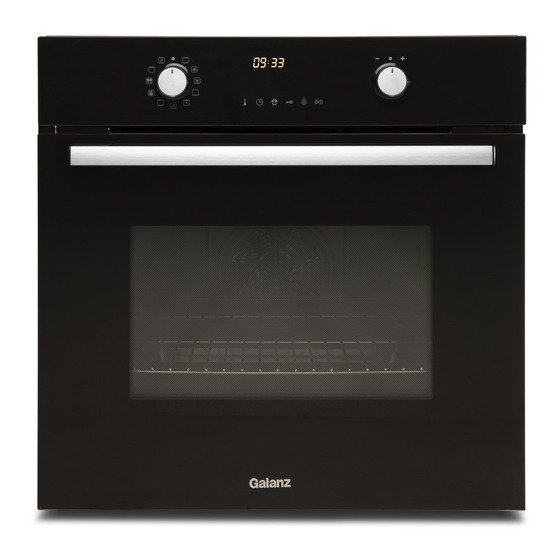

- Page 1 BIOUK003B User Instruction Manual Built-in Electric Oven Model: BIOUK003B Please carefully read these instructions before installing and operating the oven.
- Page 2 BIOUK003B...
-
Page 3: Table Of Contents
BIOUK003B CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..........4 SPECIFICATIONS ................7 INSTALLATION ................7 PARTS NAMES ................10 CONTROL PANEL ................. 10 OPERATING INSTRUCTIONS ............11 SETTING THE CLOCK ................ 12 PRESET FUNCTION ................12 OVEN LAMP ..................13 CHILD LOCK ..................13 MULTI-FUNCTION SETTING .............. -
Page 4: Important Safety Instructions
BIOUK003B IMPORTANT SAFETY INSTRUCTIONS General Warnings 1. When unpacking the oven, ensure you keep packing materials such as plastic bags, polystyrene or nails out of the reach of children. 2. To avoid the possibility of fire and explosion, do not put combustible items into, near or onto the oven. - Page 5 BIOUK003B the temperature of accessible surfaces may be high. Care should be taken to avoid touching the outer surface and heating elements inside the oven. 14. The appliance is not intended to be operated by means of an external timer or separate remote-control system.
- Page 6 BIOUK003B Hints for Cooking 1. When the oven is first switched on, it may emit acrid smelling fumes from the bonding agent used for insulating the panels around the oven. This is completely normal; if it does occur, wait for the fumes to clear before putting food into oven.
-
Page 7: Specifications
BIOUK003B SPECIFICATIONS 220-240V~ 50Hz Power Supply: 3000W Rated power output: Outside Dimensions: 595mm(H)×595mm(W)×570mm(D) Oven Cavity Dimensions: 340mm(H)×470mm(W)×410mm(D) Oven Capacity: 65Litres Gross Weight: Approx.41.5 kg Net Weight: Approx.36.5 kg INSTALLATION Installation and electrical connection must be carried out by qualified professional technical personnel. - Page 8 BIOUK003B...
- Page 9 BIOUK003B a) For correct operation of the oven, the kitchen housing must be suitable. b) The panels of the kitchen unit that are next to the oven must be made of a heat resistant material. Ensure that the glue of units made of veneered wood can withstand 120 ℃...
-
Page 10: Parts Names
BIOUK003B PARTS NAMES 1. Control panel 5. Oven cavity 2. Heater tubes 6. Door handle 3. Cavity sealing ring 7. Grill rack 4. Convection fan 8. Oil collector... - Page 11 BIOUK003B CONTROL PANEL Button Name Function Image Use this button to set the Temperature temperature Use this button to set the clock Clock and cooking time Use this button to start the preset Timer function Use this button to set or release...
-
Page 12: Operating Instructions
BIOUK003B -/+ Knob 1. Turn to adjust time and select different temperature. 2. Turn it to “●” and press the knob to hide it. OPERATING INSTRUCTIONS Attentions: When the oven is switched on, the system will emit a sound, the display shows the function of the corresponding function knob settings (if the left knob corresponds to reset function "●", only... -
Page 13: Setting The Clock
BIOUK003B Take care of escaping steam when opening the oven door during cooking or at the end of the cooking cycle. Save electricity mode: After 1 minute of in-operation the display will show the power-saving mode and the oven will go into standby. Turn any button or press any pad once to end. -
Page 14: Oven Lamp
BIOUK003B programme to start at 15:30 with 2 hours cooking time: Steps: 1. Place the food into oven, close the door. 2. Turn FUNCTION knob to select “Back Convection” function, “ ”displays. 3. Press 【 】 pad once, initial temperature will flash. Turn Knob “-/+”... -
Page 15: Multi-Function Setting
BIOUK003B MULTI-FUNCTION SETTING This function allows you to set 11 different programmes. At the end of cooking, the fan will work for approximately 3 minutes to cool the cavity. Working methods, temperature range and setting steps are shown below: WORKING... -
Page 16: Steam Cleaning
BIOUK003B The electric oven has 11 cooking programmes and a reset function. Select the cooking programme by turning the left function knob. Press 【 】and【 】 pads to change the cooking temperature and cooking time. Press 【 】 once, the current temperature flashes for 10 seconds.Turn the “-/+”... - Page 17 BIOUK003B 3. Turn the FUNCTION knob to select “ ” programme. 4. Press【 】pad once, and then turn the “-/+” knob to enter 5 minutes. 5. Press pad once to confirm. 6. Once the programme is complete, do not open the oven door for20 minutes.
-
Page 18: Cleaning And Care
BIOUK003B CLEANING AND CARE General Instructions 1. Ensure that the appliance is switched off and unplugged before replacing the lamp or cleaning to avoid the possibility of electric shock. 2. Wipe the oven using a soft, damp cloth or sponge and a little washing-up liquid. - Page 19 BIOUK003B 12. For safety reasons, do not clean the appliance with steam jet or high-pressure cleaning equipment. 13. Do not use aggressive cleaning products, scratchy sponges or rough cleaning cloths. 14. When the oven isscrapped, to avoid the possibility of injury, destroy the lock device and cut off the outside cable.
- Page 20 BIOUK003B Cleaning the Oven Door and Glass Panel Use a mild cleaning fluid and sponge or cloth to clean and dry the oven door.Do not use steel wire or corrosive cleaners and scrapers as this will damage the surface of the oven.The oven door can be removed for cleaning (see below).Do not use corrosive or abrasive...
- Page 21 BIOUK003B 2 (see figure 3). 6. Clean the top (shutter) with a suitable stainless steel cleaner and water. C. Installing the Oven Door 1. Ensure the glass panels are reinstalled in the correct order. 2. Reinstall the top (shutter) and tighten the bolts.
- Page 22 BIOUK003B D. Cleaning the Oven Cavity Sealing Ring To ensure correct performance, the oven cavity is equipped with a sealing ring which should be cleaned and checked regularly for any damage. The sealing ring can be removed for cleaning. If the seal joint is damaged or shows signs of aging, please contact the after-sales service department for a replacement.
-
Page 23: How To Use Accessories
BIOUK003B HOW TO USE ACCESSORIES A. Installation around layer frame (see figure 1): Install the left and right layer frame respectively into the cavity fixed screw position B. Grill Rack insert location and layer (see figure 2): C. Installing the Grill (See figure 3): 1. - Page 24 BIOUK003B D. Correct cooking tray Please ensure a suitable cooking tray is used. If required, cover the food to avoid splashes. E. Choosing the correct container The thickness of container, electrical conductivity and the colour will affect the effect of cooking. Please keep in mind: 1.
-
Page 25: Troubleshooting Tips
BIOUK003B TROUBLESHOOTING TIPS Please refer to the following table for assistance with some common problems before calling the after-sales service department. Failures Possible reasons Suggestions to handle Ensure the oven is switched The oven is not switched The oven does not... - Page 26 BIOUK003B Produced for: Galanz (UK) Ltd 54 Clarendon Road, WD17 1DU The user manual can also be checked and downloaded from our website: www.galanz.co.uk...
- Page 27 BIOUK003B...
- Page 28 BIOUK003B Galanz (UK) Ltd | sales@uk.galanz.com...
