Summary of Contents for Galanz GTS311S2EWAQ18

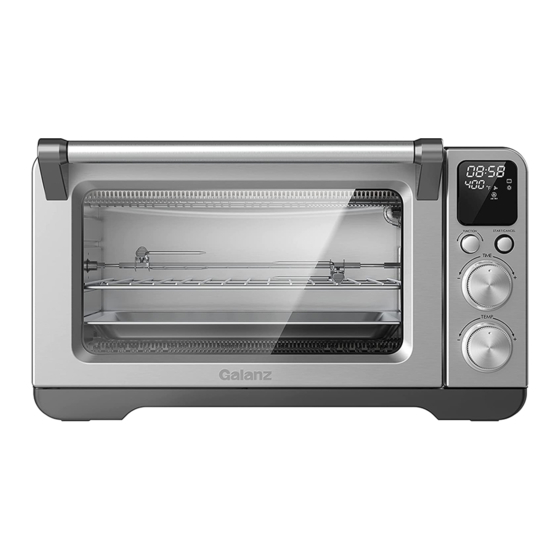

- Page 1 Model: GTS311S2EWAQ18 Toaster Oven User Manual Thank you for purchasing a Galanz product. Please read this manual carefully for correct usage and safety, and keep for future reference. For service, support and warranty information, call 800-562-0738. @2020 Galanz Americas Limited Company.
-
Page 2: Table Of Contents
Important Safety Instructions......................2 Warning ..........................2 Read before using........................3 Grounding Instructions ......................4 Electrical Connections......................4 Installation Guide ........................5 Important Tips ........................5 Product Diagram ........................6 Control Panel .........................7 Operation Instructions ........................8 Toast............................8 Bagel ............................9 Air Fry.............................10 Conv............................11 Bake............................12 Roast ............................13 Broil............................14 Rotiss............................15 Keep warm.......................... -
Page 3: Important Safety Instructions
If there are any scratches or nicks, stop using it and Please keep the toaster oven away from heat sources such as contact Galanz at 1-800-562-0738. Please operate the appliance in a well ventilated area. Please heating appliances or fire. -
Page 4: Read Before Using
READ BEFORE USING Be careful not to be burned by hot surfaces of the working oven. Read this manual carefully before using the appliance. This is a Y-connection appliance. Damage to the power cord needs to be fixed by professionals. Open oven door and remove all printed documents and papers Do not operate the appliance with an external timer or a from inside. -
Page 5: Grounding Instructions
ELECTRICAL CONNECTIONS GROUNDING INSTRUCTIONS A short power cord is provided to reduce risk of becoming This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing entangled or tripping over a long cord, an extension cord may be an escape wire for the electric current. -
Page 6: Installation Guide
INSTALLATION GUIDE IMPORTANT TIPS For gourmet results please cook food that has already been Make sure that all the packing materials are removed from the defrosted. inside of the toaster oven. Frozen food and thick cuts of meat take longer to cook. This oven must be placed on a flat, stable surface. -
Page 7: Product Diagram
1. Oven Rack Display screen Place your oven safe cookware here. Function knob 2. Air Fry Rack Use this for Air Frying foods like chicken wings or cutlets. TIME knob 3. Baking and Roasting Pan For baking and roasting meat, fish and other foods. You can also TEMP knob utilize this pan to catch drippings during Air Fry and Rotisserie programs. -
Page 8: Control Panel
FUNCTION KNOB This knob can be used to cycle through the cooking functions.There will be an audible beep when it is turned. TIME The time can be adjusted by turning this knob after the selection of the cooking function. Turn the knob left or right to adjust the time Time will adjust in increasements of +/-30 seconds below 10 minutes, +/-1 minute for 10-30minutes, +/-5 minutes for 30 –... -
Page 9: Operation Instructions
Toast Toast Accessory Guide: For Toast function, six browning levels can be selected.The default temperature is 480ºF. Press the START/CANCEL button to start. Example: Toast to Level 6 of Browning M I N In standby mode, turn the FUNCTION dial to choose TOAST program. -
Page 10: Bagel
Bagel Accessory Guide: For Bagel function, six browning levels can be selected.The default temperature is 480ºF. Press the START/CANCEL button to start. Example: Bagel to Level 6 of Browning MI N In standby mode, turn the FUNCTION dial to choose BAGEL program. -
Page 11: Air Fry
Turn the TIME dial to choose Air Fry time 30 minutes. Accessory Guide: MI N TIME For Air Fry function, cooking temperature can be selected between 350°F and 400°F. The longest cooking time is 90 minutes. Example: Use Air fry function to cook for 30 minutes at 375°F. Press START/CANCEL button to start preheating or press again In standby mode, turn the... -
Page 12: Conv
Turn the TIME dial to choose Conv time 45 minutes. Accessory Guide: MI N TIME For Convection function, cooking temperature can be selected between150°F and 450°F. The longest cooking time is 90 minutes. Example: Use Conveciton function to cook for 45 minutes Press START/CANCEL button at 375°F. -
Page 13: Bake
Turn the TIME dial to choose Bake time 40 minutes. Accessory Guide: MI N TIME For Bake function, cooking temperature can be selected between 275°F and 425°F. The longest cooking time is 90 minutes. Example: Use Bake function to cook for 40 minutes at 375°F. Press START/CANCEL button to start preheating or press again In standby mode, turn the... -
Page 14: Roast
Turn the TIME dial to choose Roast time 40 minutes. Accessory Guide: M I N TIME For Roast function, cooking temperature can be selected between 150°F and 450°F. The longest cooking time is 90 minutes. Example：Use Roast function to cook for 40 minutes at 375°F. Press START/CANCEL button to start preheating or press again In standby mode, turn the... -
Page 15: Broil
Broil Accessory Guide: When using the Broil function the cooking temperature can not be selected. The default temperature is 450°F.The longest cooking time is 30 minutes. Press START/CANCEL button to Example: Use Broil function to cook for 15 minutes. start cooking. In standby mode, turn the MI N FUNCTION dial to choose BROIL... -
Page 16: Rotiss
Rotiss Accessory Guide: For Rotisserie function, cooking temperature can be selected between 150°F and 450°F. The longest cooking time is 90 minutes. Tips: 1.Place the food tray in the lower rack position to collect drippings. 2.①Place the whole chicken (or other food) on the rotisserie shaft ②Place the rotisserie forks on either side of the shaft and insert them into the chicken to secure it on the shaft.Truss the chicken with butcher's twine so that the wings and legs are held together. -
Page 17: Keep Warm
Keep Warm Accessory Guide: Turn the TIME dial to choose time 40 minutes. For Keep Warm function, cooking temperature can be selected between 125°F and 175°F. The longest cooking time is 90 M I N minutes. TIME Example: Use Keep Warm function to cook for 40 minutes at 150°F. -
Page 18: Dehy
Dehy Dehy Accessory Guide: When using the Dehy function the cooking temperature can not be selected. The default temperature is 150°F.The longest cooking time is 12 hours. Press START/CANCEL button to Example: Use Dehy function to cook for 10 hours at 150°F. start cooking. -
Page 19: Pizza
Turn the TIME dial to choose Pizza time 20 minutes. Accessory Guide: MI N TIME For Pizza function, cooking temperature can be selected between 350°F and 450°F. The longest cooking time is 90 minutes. Example: Use Pizza function to cook for 20 minutes at 375°F. Press START/CANCEL button to start preheating or press again In standby mode, turn the... -
Page 20: Cookies
Turn the TIME dial to choose Cookies time 20 minutes. Accessory Guide: M I N TIME For Cookie function, cooking temperature can be selected between 200°F and 450°F. The longest cooking time is 90 minutes. Example: Use Cookie function to cook for 20 minutes at 375°F. Press START/CANCEL button to start preheating or press again In standby mode, turn the... -
Page 21: Product Warranty
This warranty applies to products sold by Galanz Americas in the purchase price and does not include any: U.S. This warranty is in lieu of any other warranty and expressly Retail offered extended warranties applies to the individual product only. - Page 22 Please mail this warranty card to address below within 30 days of purchase. Galanz Americas, 55 Challenger Road, Suite 503, Ridgefield Park, NJ 07660. PLEASE PRINT CLEARLY. Name_________________________________________________________ Address_______________________________________________________ City________________________________State_________Zip___________ Phone___________________Email_________________________________ Model Number_____________________Serial Number__________________ Purchase Location________________________________________________ You must attach a copy of your purchase receipt to validate your registration.
- Page 24 ©2020 Galanz Americas Limited Company...
