Microsensor MPM489 Operation Manual page 6

M20×1.5（ G1/2）
SW24
27
27
SW27
M20×1.5-6g
Exd
3.2 Installation
3.2.1 Check before Installation
a) The measuring pressure is in the measurement range;
b) The measuring medium is compatible with construction;
c) The measuring medium would not jam the pressure-leading hole.
3.2.2 Installation Method
Usually the transmitter should be mounted vertically up to the horizontal
direction. If the condition is unavailable, the allowed max. mount slope
angle from transmitter to the horizontal direction is 30 degree. It is not
recommended to mount the transmitter invertedly.
Take the pressure port M20×1.5 male with water line sealing of MPM489
pressure transmitter as an example, it can be directly installed on the
measuring pipe joint. In order to facilitate the installation and
maintenance, should be install shut-off valve between the connector and
the pipeline (see Figure 2).
27
SW27
M20×1.5-6g
Cable

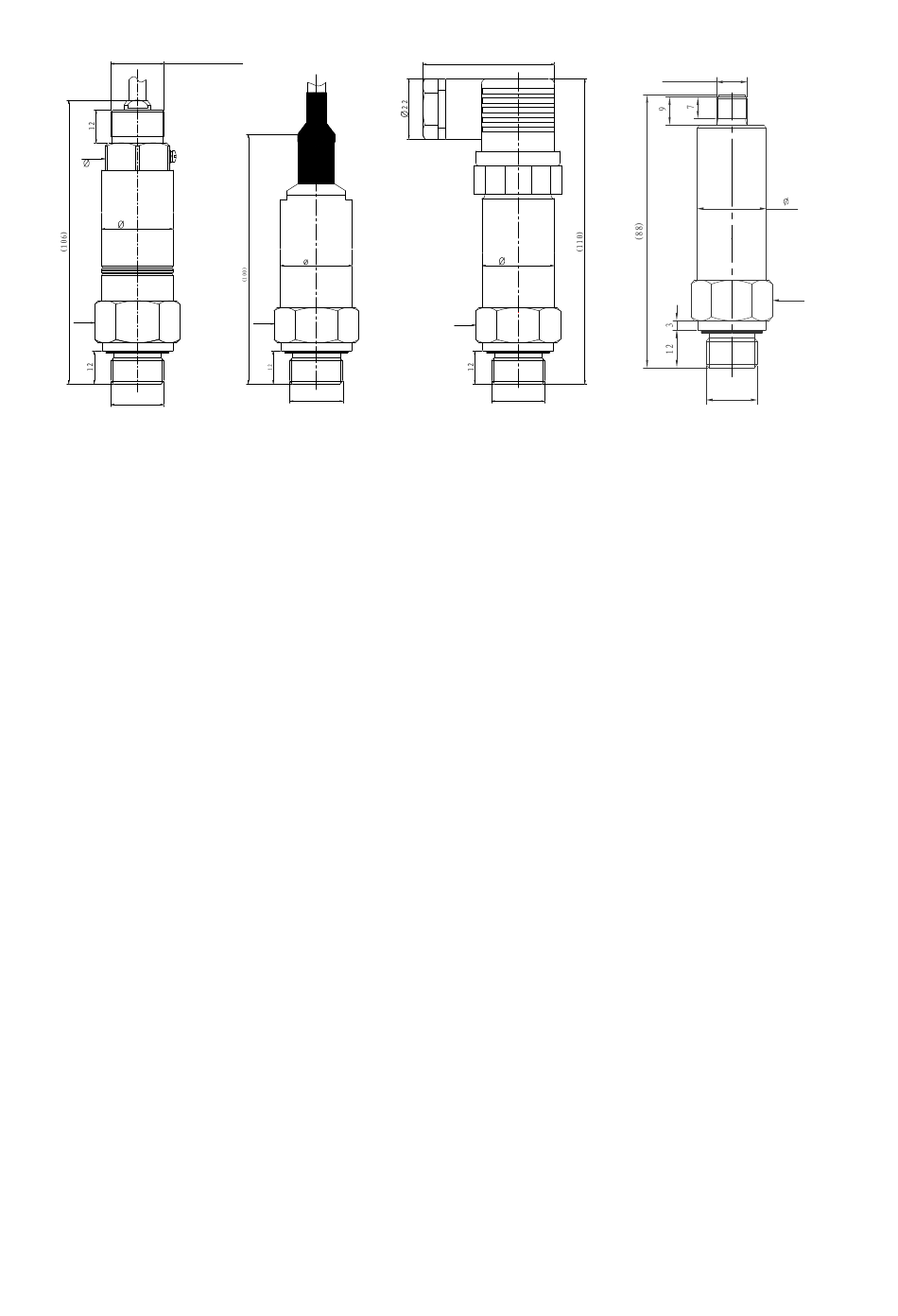

Fig. 1
（50）
27
SW27
M20×1.5-6g
4-pin Plug
4
M12×1
27
SW27
G1/2
M12x1 Plug
