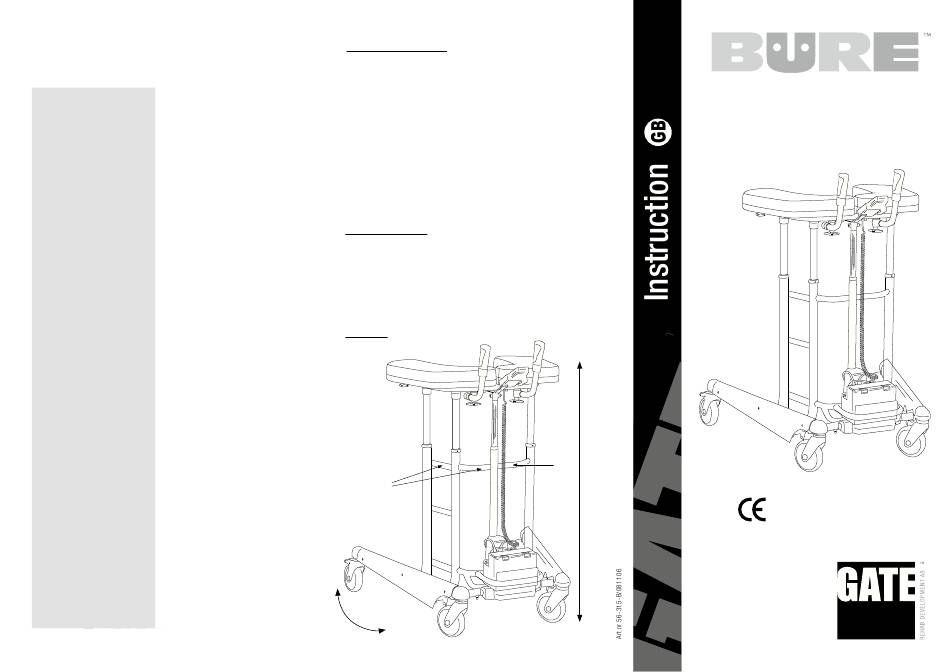

Gate Bure EXTRA 56-315 Instructions

Maintenance Bure EXTRA 56-315
Maintenance once per year)
CONTROL THAT/IF MEASURE
General
The table is stable
No noise when manoeuvring
The table is plane
All wheels are in contact with the surface
The table isn't dirty Clean with mild detergent
(no petroleum products)
Make sure that the charge cable is connected
to the wiring Complement with new cable, the cable
should always be connected to the
wiring (IP 65 classification)
Make sure that the hand control is connected Connect or complement with new
to the wiring hand control
Make sure that all connections are made See the wiring diagram in the technical
according to the wiring diagram manual
Battery and motors aren't loose Tighten and complement with new screws
Armrest platforms
Is complete and clean Clean and change parts if necessary
Widening armrest platforms is working complement with locking knobs/washers
Handles
Grip aren't damaged/dirty Clean with lukewarm soft soap solution
(no petroleum products) Change handles
Handle adjustment is working Complement with locking knobs/washers
Height adjustment
High/low is working- the table Change steering sleeve (in the frame)
is stable in highest height adjustment or change stopper
No play between vertical frame
and bottom frame Tighten the locking screws
Attachment of the electrical motor should be
without a play
Regulate the height with the hand control Make sure that the battery/hand control/
The motor should run softly motor is connected correctly according
with the same speed to the wiring diagram
Charge the battery Contact your retailer
Frame parts
No mechanical damage If there are any damages- contact your
Retailer
No scratches If there are- use the touch up paint
End cover/bottomframe is tight Complement with new covers
Wheel/brake
The wheels rolls easy/the wheel threading Clean and change wheel when needed
isn't damaged (be aware that the wheels are always
locked with chemical glue or locking screws)
The wheels are capsuled-we do not
recommend dismounting the wheels-change
the complete package of wheels.
The wheels are tightened in the bottom frame Tighten the wheel bolt- complement
with looking washers or chemical glue
The blocking brake is working on all wheels Change the complete package of wheels.
Maintenance general
Wipe off the walking table and the armrest platform
when needed -use a mild detergent.
The product should always feel stable – if the walking table is
leaning or is noisy- call for Service staff.
Change broken parts immediately- should be done by competent staff
Walking table with electric motor- should NEVER be used when charging
The product is only to be used indoor.
Max. userweight
Bure Extra ................240 kg
Measure
Lift states the
appropriate grip when
lifting the walking table
when transporting-
NB always be two
persons when lifting.
LIFT
Swing radius
77 cm /
2 = 37,5 cm
LIFT
Height
Max
132 cm
Min
92 cm
