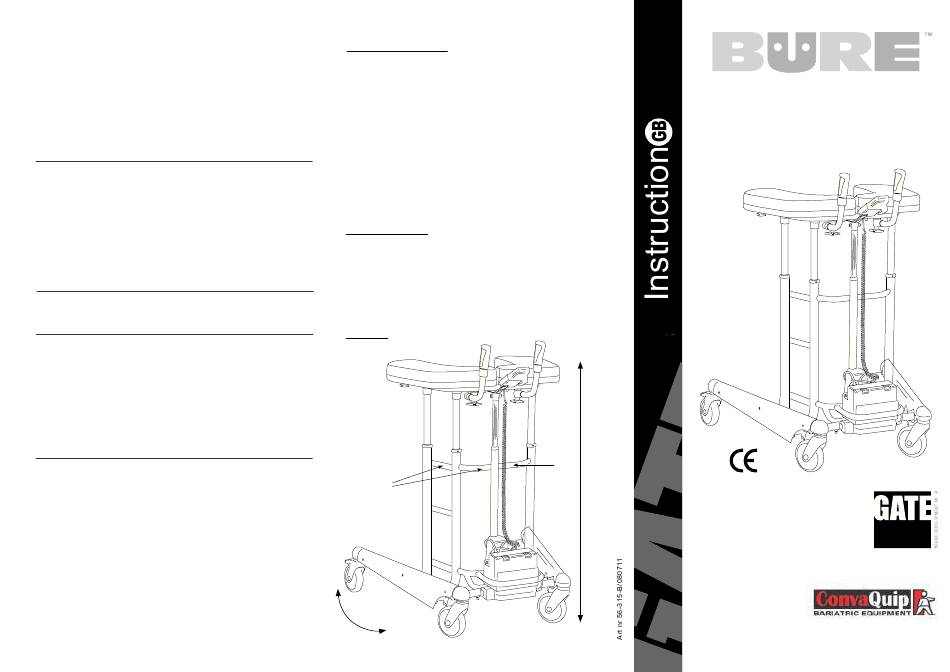

Gate BURE EXTRA Instructions

Maintenance Bure EXTRA 56-315 / STW530
(Maintenance once per year)
CONTROL THAT/IF MEASURE
General
The table is stable
No noise when manoeuvring
Clean with mild detergent
The table is plane
(no petroleum products)
All wheels are in contact with the
surface.
The table isn't dirty
Complement with new cable, the cable
Make sure that the charge cable
should always be connected to the
is connected to the wiring
wiring (IP 65 classication)
Connect or complement with new
Make sure that the hand control is
hand control.
connected to the wiring
Make sure that all connections are
See the wiring diagram in the technical
made according to the wiring
manual.
diagram
Tighten and complement with new screws
Battery and motors aren't loose
Armrest platforms
Is complete and clean Clean and change parts if necessary
Widening armrest platforms is complement with locking knobs/washers
working
Handles
Grip aren't damaged/dirty Clean with lukewarm soft soap solution
(no petroleum products) Change handles
Handle Adjustment is working Complement with locking knobs/washers
Height adjustment
High/low is working- the table is Change steering sleeve (in the frame)
or change stopper
stable in highest height adjustment
No play between vertical frame
Tighten the locking screws
and bottom frame.
Attachment of the electrical motor
should be without a play.
Regulate the height with the hand Make sure that the battery/hand control/
control.
motor is connected correctly according
The motor should run softly to the wiring diagram.
Charge the battery Contact your dealer
with the same speed.
Frame parts
No mechanical damage If there are any damages- contact your
Retailer
No scratches If there are- use the touch up paint
End cover/bottomframe is tight Complement with new covers
Wheel/brake
The wheels rolls easy/the wheel Clean and change wheel when needed
threading isn't damaged (be aware that the wheels are always
locked with chemical glue or locking screws)
The wheels are capsuled-we do not
recommend dismounting the wheels-change
the complete package of wheels.
The wheels are tightened in the bottom Tighten the wheel bolt- complement
with looking washers or chemical glue
frame
The blocking brake is working on all Change the complete package of wheels.
wheels

Maintenance general

Wipe off the walking table and the armrest platform
when needed -use a mild detergent.
The product should always feel stable – if the walking table is
leaning or is noisy- call for Service staff.
Change broken parts immediately- should be done by
competent staff
Walking table with electric motor- should NEVER be used when
charging
The product is only to be used indoor.
Max. userweight
............530 lb
Bure Extra
Measure
Lift states the
appropriate grip when
lifting the walking table
when transporting-
NB always be two
persons when lifting.
LIFT
Swing radius
30 in /
2 = 14.75 in
LIFT
Height
Max
