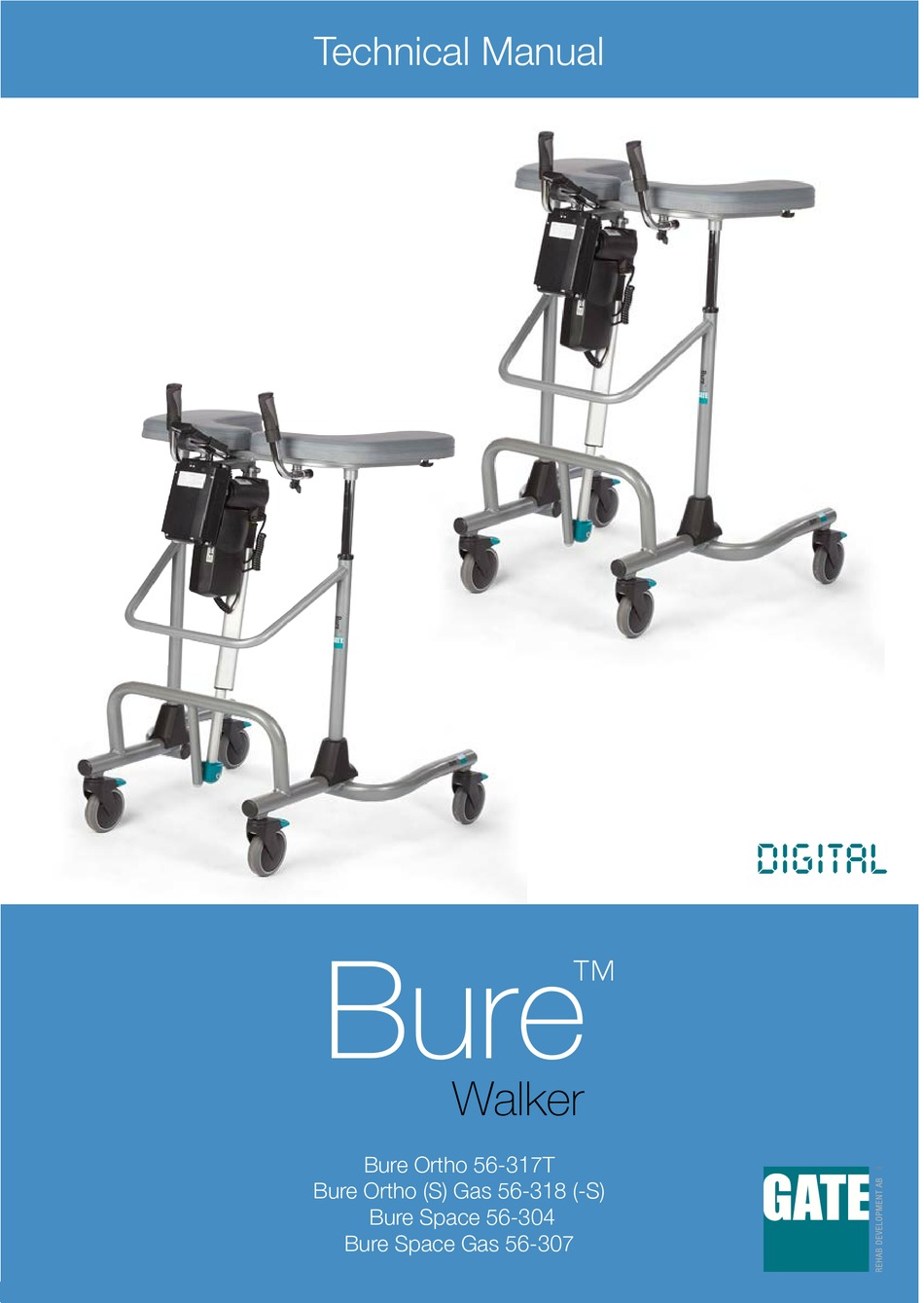

- Page 1 Technical Manual digital Bure ™ Walker Bure Ortho 56-317T Bure Ortho (S) Gas 56-318 (-S) Bure Space 56-304 Bure Space Gas 56-307...
-
Page 3: Parts List
Parts list Detaljförteckning • • • Arm rest plate Bolts Battery a) Armstödsplatta b) ratt c) plastbricka Låsvred för höjdjustering Plastic washer Protective cover Knob Base frame Holder/ remote d) Handtag+grepp e) klämma f) ratt a) Gaskolv b) handtag c) arm/hus control d) skruv + brickax2 + mutter Upper frame... -
Page 4: Spare Parts
Spare parts No. Part No. Description 57-357-R Arm rest plate, right 56-357-L Arm rest plate, left 57-904 Plastic washer/Arm support widening 56-364 Knob for adj. width of arm rest plates 57-356 Upper frame 57-816 Attachment bolt, M10x40 57-803 Serrated washer 7, 9,10 56-353 Handle kit (2 pairs incl. - Page 5 Accessories Part No. Description 56-326-0 Handbrake kit/2 handles 56-326-1 Handbrake kit/One-handed brake 56-327 Frame elevation kit, 70 mm 56-393 Footplate, short, Bure Ortho/Space 56-383 Footplate, long, Bure Ortho/Space 56-392 Drip holder 56-335 Attachment for drip holder 56-336 Oxygen holder 56-337 Side support, adjustable 56-338 Drip rod complete with attachment...
- Page 6 Other instructions T-Motion Control box wiring Remove the control box cover to make the connections as described below. Use a screwdriver or similar; refer to the special labels on the control box. 1. Socket for the raise/lower actuator. NOTE! Make sure that plugs are connected to the correct sockets otherwise the actuators can be damaged.
-
Page 7: Safety Instructions
(metals, plastics, electronics) should be recycled). Warranty We provide two years’ warranty for Gate Rehab Development AB Industrigatan 2, SE-330 21 Reftele manufacturing faults (does not apply to wear parts). For further information Tel: +46 371 31800 info@gaterd.se... - Page 8 ”LYFT” anger lämpligt grepp vid lyft gåbordet vid transport. Would you like to know more? OBS! Var minst två personer vid lyft. Contact us at: Tel: +46 371 31800 Gate Rehab Development AB Industrigatan 2 | SE-330 21 Reftele info@gaterd.com | www.gaterd.com WE DO BETTER.
