Itronix GoBook III Product Support Bulletin

Maximizing battery life with the enhanced hi-bright display

Maximizing Battery Life with the Enhanced Hi-Bright Display

Introduction

When using portable electronic devices, it is critical to maximize battery life and run time. Displays typically have one of the most

significant impacts on power consumption and battery life in mobile computing. The GoBook III's new Enhanced Hi-Bright display

option outputs significantly higher brightness levels than the previous model. This increase in brightness naturally increases the

power demand on the system battery. However, proper power management practices maximize battery run times. There are several

methods to consider with power management efforts. Below are two recommended methods you can utilize to conserve power and

increase battery run time.

Set your Display to turn off after two (2) minutes of inactivity when running on battery power. To do this:

Select Start, Run...

In the Run dialogue box, enter "powercfg.cpl" and click OK. This opens the Power Options Properties dialogue box.

Select the Power Schemes tab.

In the Turn off monitor drop down menu under Running on batteries, select After 2 mins (see figure 1 below).

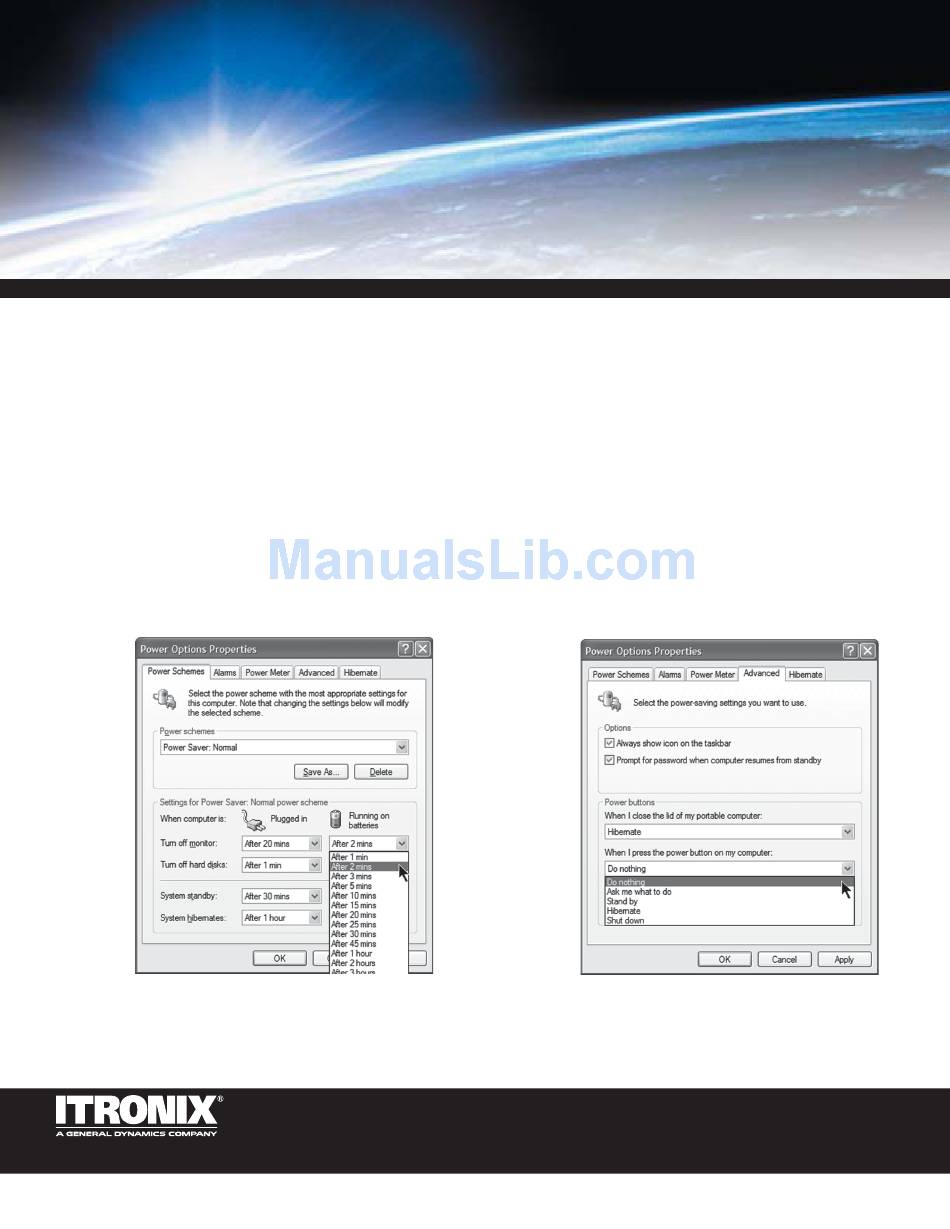

Figure 1

Next, select the Advanced tab.

In the "When I press the power button on my computer" drop down menu, select "Do nothing" (see figure 2 above).

Click OK

Notes To turn the monitor back on after it turns off due to inactivity, press any key on the keyboard. Step 6 above ensures the

system is not inadvertently powered off improperly when the display has been powered off due to inactivity.

12825 E. Mirabeau Parkway • Spokane Valley, WA 99216 • 509.624.6600 • 800.441.1309

Technical Bulletin

Figure 2

97-0122-001

2006 April 20

Table of Contents

Do you have a question about the GoBook III and is the answer not in the manual?

Page 1 When using portable electronic devices, it is critical to maximize battery life and run time. Displays typically have one of the most significant impacts on power consumption and battery life in mobile computing. The GoBook III’s new Enhanced Hi-Bright display option outputs significantly higher brightness levels than the previous model.
Page 2 Power Management Method 2 Limit the display brightness level by disabling High Brightness mode in the CMOS Setup utility. To do this: Power on or restart the computer. Shortly after the computer begins booting, the following prompt appears on the computer display, “Press DEL to enter Setup. Press TAB to show POST information”...
