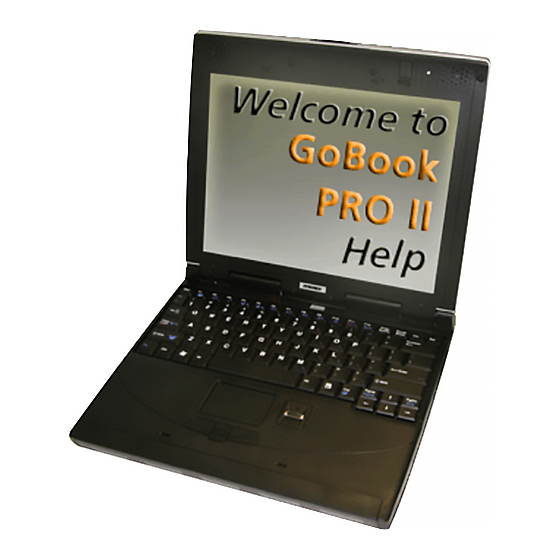

Itronix GoBook PRO II User Manual
  1. Manuals
  2. Brands
  3. Itronix Manuals
  4. Laptop
  5. GoBook PRO II
  6. User manual

Itronix GoBook PRO II User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Users' Manual
Model
IX600
Itronix Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoBook PRO II and is the answer not in the manual?

Questions and answers

Related Manuals for Itronix GoBook PRO II

Summary of Contents for Itronix GoBook PRO II

  • Page 1 Users’ Manual Model IX600 Itronix Corporation...

  • Page 2: Unpacking Your System

    Designed for a wide range of general, business, and personal productivity applications, the semi-rugged, wireless ready GoBook PRO II is an ideal choice wherever you need a computer; in the office, at home, and on the road.
  • Page 3 Standard Options Where to Look For Information 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Features This computer was designed with the user in mind. Here are just a few of its many features:...
  • Page 4 GoBook PRO II Help Page 3 of 100 3. Slide the battery locks toward the outside of the computer to lock the battery. Attaching AC Power: 1. Connect the AC adapter power cord to the AC insert picture adapter. 2. Connect the AC adapter to the DC power port on the rear panel of your computer.

  • Page 5: Loading Windows

    If you turn off the computer and want to turn it on again, wait at least two seconds before powering up. CAUTION Shutting off the computer improperly may result in data loss. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Loading Windows This section is for installing the Windows operating system only.

  • Page 6: Startup Problems

    NOTE The Power LED on the AC adapter should be lit as well as the External Power Indicator the GoBook PRO II if the AC adapter is connected and functioning properly. Additionally, one of the power icons should appear in the task tray.
  • Page 7 GoBook PRO II Help Page 6 of 100 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

  • Page 8: Tips For New Owners

    It should be a detachable type: UL listed/CSA certified, type SPT-2, rated 7A 125V minimum, VDE approved or its equivalent. Maximum length is 15 feet (4.6 meters). Ergonomics 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Tips for New Owners Take responsibility for backup Back up files often.

  • Page 9: Front View

    This chapter introduces the different components and controls of your notebook computer, including the hardware components, the software, and the audio and video systems. Before you begin using your GoBook PRO II, read this chapter to familiarize yourself with the main components installed in the system.
  • Page 10 GoBook PRO II Help Page 9 of 100 # Feature Description Speakers Photo Sensor Keyboard Light Touch Screen Display Fingerprint Optional feature Scanner Touchpad Bluetooth / Diversity for EVDO Antenna...

  • Page 11: Top View

    LEDs Lights that turn on, of or blink to show the status of the computer and its functions 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Top View Hover the mouse over each number on the picture to see a description...

  • Page 12: Left Side View

    GoBook PRO II Help Page 11 of 100 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. ® GoBook PRO II Help Left Side View Hover the mouse over each number on the picture to see a description...

  • Page 13: Back Edge View

    3. DVD-ROM drive 7. Shoulder strap hole 4. DVD-ROM drive lock 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Back Edge View Hover the mouse over each number on the picture to see a description...
  • Page 14 Slide this latch to the left to remove the battery. NOTE You must first unlock the battery. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. Keyboard Basics The GoBook PRO II computer features: Full size keys 85-key US keyboard; 87-key international keyboard...

  • Page 15: Keyboard Ergonomics

    GoBook PRO II Help Page 14 of 100 Mouse keys and cursor control keys USB port that enables you to connect an external keyboard Keyboard ergonomics Located below the keyboard, the wide and curved palm rest is ergonomically designed to provide you with a very comfortable place to rest your hands while you type.

  • Page 16: Arrow Keys

    Press the tab key to move from one field or text box to another. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Arrow Keys...

  • Page 17: Quick Launch Buttons

    WLAN,and WWAN radios. NOTE If radio wakeup is enabled, radio power will turn back on before the system suspends. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Quick Launch Buttons Five Quick Launch Buttons, located at the top of the keyboard, launch frequently used applications.

  • Page 18: Icon Description

    GoBook PRO II Help Page 17 of 100 cover is closed so you don't have to worry about the GoBook PRO II getting turned on accidentally. # Item Icon Description 1 Wireless This button is used to enable or disable the wireless LAN Communication (optional) function.

  • Page 19: Windows Keys

    Ł or ¯ respectively. Scroll Lock does not work with some (Fn-F12) applications. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Windows Keys The keyboard has two keys that perform Windows- specific functions.

  • Page 20: Keyboard Light

    GoBook PRO II Help Page 19 of 100 ® GoBook PRO II Help Keyboard Light 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Restarting the Computer Restarting the Computer Press… To do this CTRL+ALT+DEL twice Soft reboot the computer.
  • Page 21 GoBook PRO II Help Page 20 of 100 Blinking Computer has suspended to RAM Green External Steady Power is on and external power is applied from one of Power Green the following: 1. The AC Adapter connected to a wall outlet, or 2.
  • Page 22 GoBook PRO II Help Page 21 of 100 Communication Green 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Touchpad The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor responds as you move your finger over of the touchpad.

  • Page 23: Touchpad Basics

    GoBook PRO II Help Page 22 of 100 Move the pointer to the desired location. Tap the touchpad twice quickly as if you were double- clicking, however do not remove your finger after the second tap. Move the cursor to the desired location.

  • Page 24: The Graphics System

    The touchpad is sensitive to finger movements. It responds best to light touches. Tapping too hard will not increase the touchpad's responsiveness. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help The Graphics System Your computer has a high-performance graphics system that can easily handle the demands of today's multimedia computing.

  • Page 25: Simultaneous Display

    Auto Dim Feature To save the battery power, your GoBook PRO II automatically dims the display when the computer is not attached to external power. NOTE You may still use the display brightness function keys (Fn+F6 and Fn+F7) to adjust display brightness.

  • Page 26: Cursor Visibility

    NOTE To change the speed of the mouse, from the Start Menu select Settings, Control Panel, and then choose Mouse to make adjustments. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. ® GoBook PRO II Help Memory Adding memory allows the computer to operate faster, handle more tasks simultaneously, and work more smoothly with large files.

  • Page 27: Inserting A Memory Card

    2. Windows: Right click on my computer and select properties. The bottom of the system Properties General tab lists the memory detected by Windows. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. ® GoBook PRO II Help Audio Your computer includes 16-bit high-fidelity stereo audio.

  • Page 28: Adjusting The Volume

    72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help The PC Card Slot The computer has a built-in CardBus PC Card slot on the left panel of the computer that can accommodate one Type II PC Card.
  • Page 29 3. Press the slot eject button once (1) to pop it out (2); then press it again (3) to eject the PC Card. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. ® GoBook PRO II Help Memory Stick/SD combo slot (option)

  • Page 30: Ports And Connectors

    2. Press the card further into the slot to release the card (you hear a click); then pull out and remove the card. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. Ports and Connectors Ports and Connectors Connection Location...

  • Page 31: Attaching Power

    Connect the DC power cable from the AC adapter or the vehicle adapter to this jack. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Attaching an External Monitor or Video Device...

  • Page 32: Using Simultaneous Display

    GoBook PRO II Help Page 31 of 100 1. The 15-pin VGA port can be used to connect your computer to an external monitor. See Graphics System for more information. 2. S-Video technology provides sharper video image on a video or television device than traditional TV-out connections, provided your video display device supports S-Video input.
  • Page 33 GoBook PRO II Help Page 32 of 100 Using the VGA monitor port. 1. Locate the 15-pin VGA monitor port on the left side of your notebook and connect the video signal cable from the external monitor (or the VGA adapter) to the monitor port.

  • Page 34: Attaching Usb Devices

    GoBook PRO II Help Page 33 of 100 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. ® GoBook PRO II Help Attaching USB Devices The Universal Serial Bus (USB) is the latest standard for attaching keyboards, mice, scanners, and other devices to a PC.

  • Page 35: Fax/Data Modem

    To use the network feature, connect an Ethernet cable from the network jack on the rear of the computer to a network jack or hub on your network. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Fax/data modem You can use the fax/modem to connect to the Internet to send and receive data using the 56 Kbps V.90...

  • Page 36: Attaching Audio Devices

    CAUTION To eliminate electromagnetic waves, it is strongly recommended that you thread the USB cable or phone cord through the clip provided when using USB peripherals, audio-out jack or connecting to a phone line. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Attaching Audio Devices 1.

  • Page 37: External Keyboard

    See your peripheral's documentation for details. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. External keyboard This computer has a keyboard with full-sized keys and an embedded keypad. If you feel more comfortable using a desktop keyboard, you can connect a USB external keyboard to an available USB...

  • Page 38: External Pointing Device

    ® PRO II Help Attaching Mobile Phone Earphones insert picture with callout of port If your GoBook PRO II has an integrated GPRS radio, you can plug in mobile phone three-pin earphones to the GPRS-in jack to receive phone calls.

  • Page 39: Securing Your Computer

    GoBook PRO II Help Page 38 of 100 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. ® GoBook PRO II Help Securing Your Computer Your computer includes a Kensington lock hole to be used with a standard Kensington lock. You can connect the notebook to a large object with the Kensington lock to prevent theft of your notebook.

  • Page 40: Fingerprint Scanner (Option)

    GoBook PRO II Help Page 39 of 100 Supervisor Password secures your computer against unauthorized entry to critical parameters in BIOS Utility. User Password secures your computer against unauthorized use, and allows limited access to the BIOS Utility. Hard Disk Password protects your data by preventing unauthorized access to your hard disk, even if the hard disk is physically removed from the computer and installed in another computer.
  • Page 41 NOTE The radios do NOT function in suspend mode. ® GoBook PRO II Help Antennas The GoBook PRO II has several embedded antenna options to support wireless communications. Antenna CRMA Express Antenna GPS Antenna WLAN Antennas Bluetooth / Diversity for EVDO...
  • Page 42 Page 41 of 100 CAUTION Please avoid hitting wireless communication antennas as this may adversely affect communications quality. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Bluetooth Bluetooth systems create a personal-area network (PAN), or piconet, that may fill a room or may encompass no more distance than that between the cell phone on a belt-clip and the headset on your head.

  • Page 43: Improving Radio Coverage

    Bluetooth signal, making the standard useful for controlling several devices in different rooms. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help GPRS Network...
  • Page 44 GoBook PRO II Help Page 43 of 100 Wireless connectivity between radio-equipped portable terminals and host computers is unique and maintaining this wireless connectivity over a wide area is fundamental to the usefulness of the network. As such, the scope and reliability of radio coverage is a primary concern. Therefore, one of the most important features of the wireless network is the degree of radio coverage provided.

  • Page 45: When To Use Landline Communication

    If these tips do not improve radio signal strength, switch to landline communication. Switching to landline communication is faster than searching for and trying to improve the radio signal. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. ® GoBook PRO II Help...
  • Page 46 GoBook PRO II Help Page 45 of 100 limitations, such as older buildings, leased space, or temporary sites Any company that needs the flexibility and cost savings offered by wireless, building-to-building bridge to avoid expensive trenches, leased lines, or right-of-way issues WLANs use a transmission medium, just like wired LANs.

  • Page 47: Fast Infrared

    When the user leaves the vehicle, the computer is connected to the vehicle using a WLAN connection. The vehicle can either contain a store of information or simply be a pass through to the WAN. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Fast Infrared...

  • Page 48: Battery Pack Characteristics

    72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. Operating with Battery Power The computer operates on AC or battery power. This chapter contains the information you need to know to operate the computer on battery power.

  • Page 49: Using A Battery Pack For The First Time

    WARNING Do not expose battery packs to temperatures below 0ºC (32ºF) or above 60ºC (140ºF). This may adversely affect the battery pack. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Installing and removing the battery pack Important! Before removing the battery pack, make sure that you have an AC adapter connected to the computer;...

  • Page 50: Battery Calibration

    Battery Calibration will take from 10 to 16 hours, depending on how much power the battery may already contain. NOTE For optimum performance, we recommend calibrating the battery every three months. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved.

  • Page 51: Battery Charging

    This ensures a fully charged battery for use the next day. When you use the AC adapter to connect your GoBook PRO II to a power outlet, the internal battery will automatically begin to recharge. While the battery is charging, the Battery Power Indicator will be active after 6-12 seconds and will stay solid orange.

  • Page 52: When To Replace The Battery

    However, working in a hot environment, or working for long periods may raise the temperature. The GoBook PRO II takes the following steps to lower temperature: 1. The cooling fan turns on automatically. You may feel air coming from a vent at the left side of the computer when this happens.

  • Page 53: Monitoring Battery Power

    GoBook PRO II Help Page 52 of 100 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Monitoring Battery Power There are two ways to monitor how much power the battery has left: 1. Select Start, Settings, Control Panel, Power Options; then select the Power Meter.

  • Page 54: Battery-Low Warning

    GoBook PRO II Help Page 53 of 100 charge/recharge cycle and improves recharge efficiency. Follow these suggestions to optimize and maximize battery power: Purchase an extra battery pack. Use the AC adapter whenever possible so that the battery is reserved for on- the-go computing.

  • Page 55: Power Management

    3. Power off the computer. Power management The GoBook PRO II has power management capability so you can reduce the amount of energy used, especially during periods of inactivity. Effective use of power management options can greatly conserve and extend your battery life.

  • Page 56: Initiating Suspend Mode

    72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Battery Tips...

  • Page 57: Tip 2. Prevent Wasted Power

    GoBook PRO II Help Page 56 of 100 Tip 1. Avoid excessive heat and cold Your battery will last longer during the day if it is used, charged and stored between 50°F and 86° F (10°C and 30°C). Charge the battery nightly where the temperature will remain around 68°F (20°C). Your battery may not last as long through the day if you charge it at higher or lower temperatures.
  • Page 58 GoBook PRO II Help Page 57 of 100 Identifying power wasting programs What to do if applications are keeping the CPU busy Tip 3. Calibrate your battery Over time, the accuracy of the Windows battery gas gauge may be affected by repeated charging and discharging of the battery.

  • Page 59: Launch Manager

    GoBook PRO II Help Page 58 of 100 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. System Software This chapter discusses the important system utilities bundled with your computer. GoBook ® PRO II Help Launch Manager Launch Manager allows you to set the launch keys (excluding the wireless LAN button) located to the left of the keyboard.

  • Page 60: Using The Setup Utility

    The GoBook PRO II is configured with a set of default values. You may be able to increase system performance by changing some of the timing values in the Setup Utility, but this can be limited by the kind of hardware you are using.

  • Page 61: Key Function

    For optimum settings, press F9 to load setup defaults; then press F10 to save the changes and exit the BIOS Setup Utility. NOTE Don't forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved.

  • Page 62: Setting Passwords

    GoBook PRO II Help Page 61 of 100 ® GoBook PRO II Help Most Used Setup Options The following are the most frequently used options in the BIOS Setup Utility. Setting passwords You can set, change or remove passwords in the Security menu.

  • Page 63: The Main Menu

    F5 or F6 to change its order. Items with a “+” sign can be further expanded. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help The Main Menu...
  • Page 64 GoBook PRO II Help Page 63 of 100 Setting Function Field System Time Sets the system time. Format: HH:MM:SS ( Hour : Minute : Second ) System Date Sets the system date. Format: MM/DD/YYYY ( Month/Day/Year ) Boot Display Auto...

  • Page 65: The Advanced Menu

    Users could choose if they want to Disabled display the "F12 to enter Multi Boot Menu" message during post. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help The Advanced Menu Field Setting...
  • Page 66 GoBook PRO II Help Page 65 of 100 menu Primary Slave sub- Configure Peripherals menu Stealth Mode Configuration sub- Configure Stealth Mode menu I/O Device Configuration sub- Configure I/O Devices menu Photo Sensor Control sub- Set photo sensor settings menu...

  • Page 67: Primary Master

    GoBook PRO II Help Page 66 of 100 resume from a suspended state when the lid is opened. Primary Master Primary Slave...
  • Page 68 GoBook PRO II Help Page 67 of 100 Stealth Mode Configuration Field Setting Function Stealth Mode Disabled Enabled...
  • Page 69 GoBook PRO II Help Page 68 of 100 System Beeps Audio Display Backlight Brightness Off Wireless Devices I/O Device Configuration Field Setting Function...
  • Page 70 Photo Sensor Control Field Setting Function 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help The Information Page This page displays information about your computer from what kind of CPU and how much memory the...
  • Page 71 GoBook PRO II Help Page 70 of 100 Field Description CPU Type Displays the CPU information System Memory Displays the current system memory Extended Memory Displays the current extended memory HDD Serial Displays the primary master HDD serial number Number If there is no primary master HDD, it displays ‘None’...

  • Page 72: The Security Menu

    GoBook PRO II Help Page 71 of 100 Product Name Displays the Product Name (up to 15 characters). This is "IX625" Manufacturer Displays the Manufacturer Name (up to 15 characters). This is Itronix Name UUID Display the UUID (16 Byte Hex-Digital) 72_0128_001 16 May 2005 ©...

  • Page 73: External Monitor

    This chapter also includes information on upgrading key components to keep your computer in step with the latest technology. The GoBook PRO II computer has several equipment and accessory options to further enhance your mobile computing experience. Go to the...
  • Page 74 GoBook PRO II Help Page 73 of 100 displayed on the other external display. To use simultaneous display, connect an external display device to the external monitor port or S-video output jack. You can then toggle the display output location by pressing Fn-F3 to make the image appear on both the computer LCD and external display device.
  • Page 75 This will not effect normal operation of the LCD. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. S-video The S-video port allows you to output to a television or display devices that support S-video input. This is useful if you want to do some presentations or watch movies on a bigger screen.

  • Page 76: Audio Devices

    (or an audio line-in device) into the line-in jack. Amplified speakers or headphones connect to the line-out jack. The line-out jack also supports digital audio output (S/PDIF). 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help USB devices The computer has three USB (Universal Serial Bus) 2.0 ports on the rear of the computer, that allow you...

  • Page 77: Ieee 1394 Devices

    GoBook PRO II Help Page 76 of 100 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help IEEE 1394 devices The computer's fast IEEE 1394 ports allow you to connect IEEE 1394 supported devices like a digital video camera or external storage devices.

  • Page 78: Selecting The Right Surge Protection

    The compact AC adapter charges your battery pack and supplies power to your computer. You can order a spare AC adapter so you do not need to carry it from the office to your home or destination. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. ® GoBook PRO II Help...

  • Page 79: Selecting The Right Equipment

    Consider obtaining a protected equipment coverage policy which insures the equipment in the event of surge damage The devices that will be attached to the computer also need to be surge protected 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. GoBook ® PRO II Help Key component upgrades Your computer delivers superior power and performance.

  • Page 80: Hard Disk Upgrade

    The computer uses a 9.5mm 2.5-inch Enhanced-IDE hard disk. Please consult your dealer if you need to upgrade your hard disk. 72_0128_001 16 May 2005 © 2005 Itronix Corporation. All rights reserved. Moving with your computer This chapter gives you tips and hints on things to consider when moving around or traveling with your computer.

  • Page 81: Disconnecting From The Desktop

    GoBook PRO II Help Page 80 of 100 Disconnecting from the desktop Follow these steps to disconnect your computer from external accessories: 1. Save your work in progress. 2. Shut down the operating system. 3. Turn off the computer. 4. Disconnect the cord from the AC adapter.

  • Page 82: Traveling With The Computer

    GoBook PRO II Help Page 81 of 100 Preparing the computer After disconnecting the computer from your desktop, follow these steps to prepare the computer for the trip home: 1. Remove all media from the drives. Failure to remove the media can damage the drive head.

  • Page 83: Traveling Internationally With The Computer

    GoBook PRO II Help Page 82 of 100 Preparing the computer Prepare the computer as if you were taking it home. Be sure the battery in the computer is charged. Airport security may require you to turn on your computer when bringing it into the gate area.

  • Page 84: Post Messages

    Power On Self Test (POST) Windows Applications POST Messages When the GoBook PRO II computer restarts, it tests its hardware components. This test is called the Power On Self Test (POST) . If the system finds an error during this test, it displays an error message.
  • Page 85 GoBook PRO II Help Page 84 of 100 Extended RAM Failed at offset: nnnn System battery is dead - Replace and run SETUP System CMOS checksum bad - Default configuration used System timer error Real time clock error Check date and time settings...

  • Page 86: Windows Messages

    Troubleshooting This section is designed to help you determine and fix problems you might encounter while operating the GoBook PRO II computer. Try the following things in order: First look through the categories in this section for a solution. If you don’t find a solution for your situation here, try one of the resources listed below.
  • Page 87 GoBook PRO II Help Page 86 of 100 If you still cannot resolve your problem, contact the help desk at your organization. WARNING Do not attempt to open and service the computer by yourself. Contact your dealer or an authorized service center for assistance.
  • Page 88 GoBook PRO II Help Page 87 of 100 3. Connect the AC adapter to the computer and an AC wall outlet, and then turn on the computer by pressing the Power Button. 4. Reinstall the battery. 5. Allow the system to remain idle for one hour with the AC adapter connected to the computer.

  • Page 89: Frequently Asked Questions

    GoBook PRO II Help Page 88 of 100 The underlined, inverse, and hypertext characters are difficult to read on the screen The display appears to have random pixels darkened after scrolling I changed my display resolution, but I see no difference on the screen...

  • Page 90: Landline Modems

    GoBook PRO II Help Page 89 of 100 I can’t save files because the disk is full Report this situation to your supervisor or your organization’s help desk. Keyboard Something unexpected happens when I press a key You may have pressed a key combination that performs a Windows function. Make sure you are...
  • Page 91 , check the electrical outlet you are using to make sure it is working properly. If the GoBook PRO II computer does not turn on, restart the computer by holding down the Power Button for at least 4 seconds and then release it.
  • Page 92 GoBook PRO II Help Page 91 of 100 Reset the correct date and time by choosing the Date/Time icon from Control Panel and making the appropriate changes. I receive an “out of memory” error message Too many applications may be running at the same time. Close applications you don’t need.

  • Page 93: Care And Maintenance

    GoBook PRO II Help Page 92 of 100 ® GoBook PRO II Help Care and Maintenance You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:...

  • Page 94: Taking Care Of Your Ac Adapter

    GoBook PRO II Help Page 93 of 100 Do not spill water or any liquid on the computer. Do not subject the computer to heavy shock and vibration. Do not expose the computer to dust and dirt. Do not place objects on top of the computer.

  • Page 95: Client Care Center (Ccc)

    16 May 2005 © 2005 Itronix Corporation. All rights reserved. Service and Support Our commitment at Itronix is to provide you, our client, with both the products and support services necessary for success in your enterprise. Client Care Center The Itronix Client Care Center strives to consistently provide world-class service and continually make improvements thanks to valuable input and ideas from our customer base.

  • Page 96: Product Support - Downloads

    Product Support - Downloads Itronix Corporation makes it easy to get the software updates you need to keep your configuration current and get the most from your Itronix product. Simply go to the Notebooks section of the Product Support downloads page on the Itronix website.
  • Page 97 This document is printed in the U.S.A. Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to Itronix to notify any person of such revision or changes. Itronix Corporation does not assume responsibility for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual.
  • Page 98 This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The GoBook PRO II (IX600) computer complies with Part 68 of the FCC Rules. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment.
  • Page 99 Ringer Equivalence Numbers of all the devices does not exceed 5. The GoBook PRO II (IX600) computer may be connected to the telephone network using the RJ-11 jack provided.
  • Page 100 Warnings and Cautions WARNING It is important that only authorized Itronix personnel attempt repairs on Itronix equipment as this might void any maintenance contract with your company. Unauthorized service personnel might be subject to shock hazard on some Itronix equipment if removal of protective covers is attempted.
  • Page 101 Page 100 of 100...
