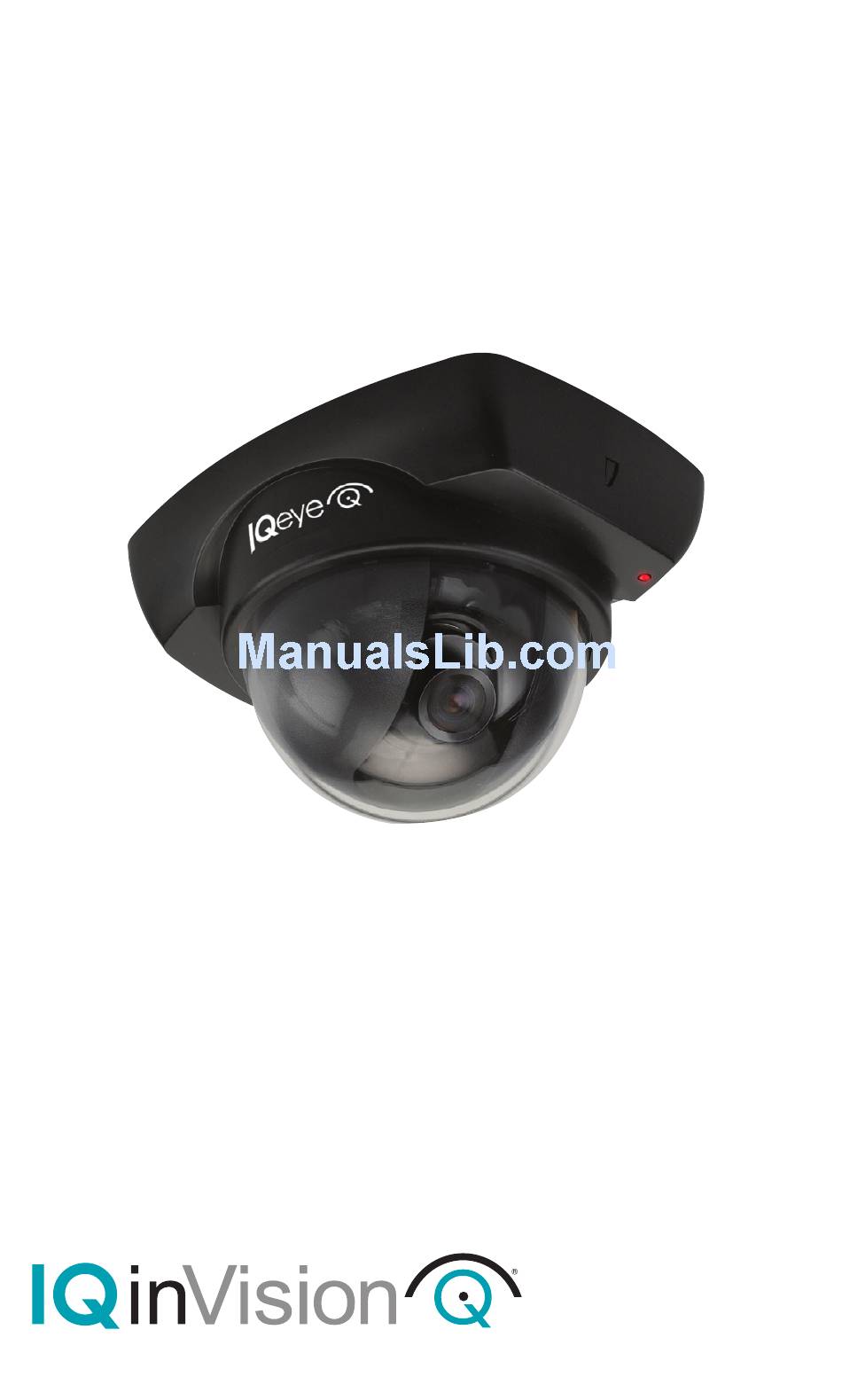

- Page 1 IQeye Mini Dome Part of the IQeye BASIC LINE of Network Surveillance Products Installation and Operating Instructions When you can’t afford to miss a thing. Series ™...
-
Page 2: Important Safeguards
Important Safeguards CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! CAUTION: BEWARE OF RISK OF ELECTRICAL SHOCK. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Due to product size and space limitations, this label may not appear on all products. The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 3: Table Of Contents
9. PC Configuration ...11 10. VLC for H.264 Stream ...14 11. Warranty ...15 1. Service If the unit needs repair service or parts, the customer should contact IQinVision for authorization to return, as well as shipping instructions. IQinVision 33122 Valle Road... -
Page 4: Unpacking
2. Unpacking The IQeye Mini Dome should include the following: Standard Camera Model 1. IQeye Mini Dome Camera with plastic black trim ring 2. Additional plastic trim ring in beige 3. IQeye Mini Dome Installation and Operating Instructions 4. Mini-CD with IQeye PC Tools 5. -
Page 5: Description
2. If the optional IQeye Mini Dome IQD4-PB (black) or IQD4-PG (beige) Pendant Mount Adapter Pack is purchased, the package should include the following (for use with Standard Camera Model only): A. Qty (5) Pendant Mount Adapters B. Qty (10) Screws - Two Per Pendant Mount C. -
Page 6: Mounting Options
5. Mounting Options The IQeye Mini Dome is designed to be used in one of the following configurations: 1. Surface mounted to any interior durable surface wall. 2. Surface mounted to a plenum or other durable ceiling surface. 3. Mounted to the IQeye Mini Single-Gang Box Wall Mount Adapter (P/N IQD4-WB or IQD4-WG). - Page 7 Interior Vandal Camera Model: using the supplied Torx T-10 security wrench loosen the two tamper-proof screws holding the dome cover to the camera assembly. Note that these screws are not captively held to the dome cover. If lost, two spare tamper-proof screws are provided. If using a PoE Ethernet cable coming through the wall, be sure to run this cable through the cable pass-through in the camera base plate and connect it to the Ethernet port on the camera as shown in Image 6.2.
- Page 8 2. Mount the IQeye Mini Dome camera base to the desired wall or ceiling surface using the supplied or equivalent mounting hardware. 3. Remove the camera shroud by placing the palm over the top of the shroud, then gently squeezing the two tabs toward the front of the shroud toward the center of the camera.
-
Page 9: Wall Mount Installation
Interior Vandal Camera Model: position the dome cover so the dome cover screws line up with the matching receiving holes on the mounting plate. Tighten the dome cover to the mounting plate using the supplied Torx T-10 security wrench. Note: The cover fits in only one orientation. Do not apply excessive force or damage to the trim cover may occur. - Page 10 2. Pull the PoE Ethernet cable through the cable pass-through in the camera base plate and connect it to the camera’s Ethernet port. 3. Attach the camera base plate to the wall mount using the supplied qty. (2) machine screws. 4.
-
Page 11: Pc Configuration
Power Source Warning: Note that the IQeye Mini Dome camera can only be powered with a standard IEEE 802.3af PoE injector or PoE switch. It CANNOT BE POWERED with DC, AC or with the IQinVision proprietary IQpoet injector. 3. IQeye Mini Dome field of view and focus adjustment must be performed using a browser to view the camera image. - Page 12 B. Click the “Scan for IQeye cameras on my network” to find IQeye cameras. The detected cameras will be displayed in the IQfinder window. Select a camera from the list and click the “Assign IP” to edit the selected camera’s IP settings. C.
- Page 13 D. To view a camera “Double click” on a camera entry or highlight a camera in the list and click the “Web Page” button. . The “Live” page will be displayed through your default browser (IE recommended). It is also possible to open Internet Explorer and enter the IP address of the IQeye...
-
Page 14: Vlc For H.264 Stream
10. VLC for H.264 Stream (H.264 720p Camera Models Only) 1. Using VLC for H.264 Stream A. To prepare the camera to serve an H.264 stream, install VLC Player (Version 1.0.1 or higher) from https://videolan.org/vlc/ and use default installation parameters. B. -
Page 15: Warranty
(“Warranty Period”). The original purchaser shall without undue delay notify IQinVision of any defect which appears according to IQinVision’s RMA Handling procedure, failure to which shall mean that the purchaser loses its right to have the defect remedied. A valid form of a bill of sale or receipt from an authorized retailer/distributor with the date of the original purchase must be presented to obtain warranty service. - Page 16 When you can’t afford to miss a thing. ® 33122 Valle Road San Juan Capistrano, CA 92675-4853 USA phone +1.949.369.8100 www.iqeye.com fax +1.949.369.8105 Part Number: 901-0226 Rev B...
