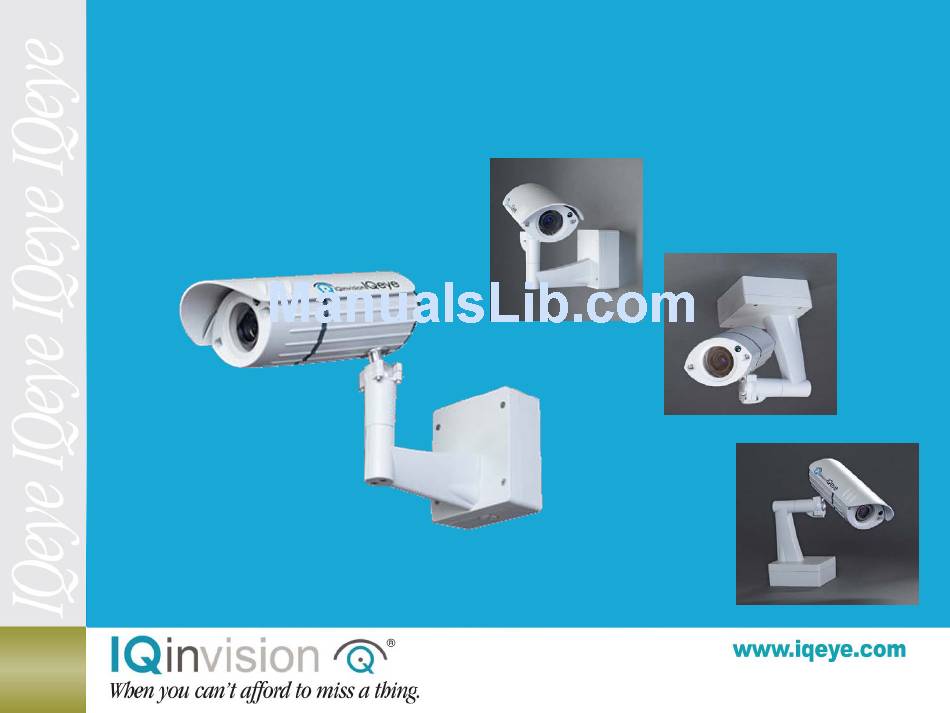

- Page 1 IQeye Sentinel Series Product Overview...
-
Page 2: Cool Features
Sentinel Series All-weather megapixel IP camera COOL FEATURES: • Based on the popular IQeye700 Series line • Super easy to install • Redundant environmental protection • Amazingly versatile • Unique & efficient glass de-fogging technology • Robust. Attractive. Full-featured... -
Page 3: Easy Installation
Sentinel Series Easy Installation Install Junction Box Make Connections Close Junction Box Adjust Camera Position Remove Lens Cover Set FOV and Focus Close Lens Cover DONE! All major required tools for installation (3mm Allen Wrench, Punch Down Tool) are included! -
Page 4: Ease-Of-Installation
Sentinel Series ease-of-installation STEP 1: INSTALL JUNCTION BOX Determine how you want the Junction Box mounted ( see photos Ceiling Mount Wall Mount Parapet Mount Install the Junction Box using supplied 2” slotted hex screws (we even threw in a mounting... - Page 5 Sentinel Series ease-of-installation INSTALL JUNCTION BOX (cont.) Feed PoE CAT 5 Cable through right side Heyco fitting Use supplied punch down tool to connect CAT 5 or crimp a CAT 5 connector onto the cable and plug it in Ethernet via RJ-45...
- Page 6 Sentinel Series ease-of-installation STEP 2: MAKE CONNECTIONS Connect the pre-wired CAT 5 connector from the camera to the labeled “camera side” connector Connect the 8 pin Aux/IO connector from the camera to the labeled “camera side” connector STEP 3: CLOSE JUNCTION BOX...
- Page 7 Sentinel Series ease-of-installation STEP 4: ADJUST CAMERA POSITION STEP 5: REMOVE LENS COVER Using the 3mm hex tool, loosen the two screws on the front of the lens cover Slide the lens cover out and let it drop on its captive leashes...
- Page 8 Sentinel Series ease-of-installation STEP 7: CLOSE LENS COVER STEP 8: DONE! Entire installation, including mounting the Junction Box, takes less than 20 minutes...
-
Page 9: Technical Features
Sentinel Series TECHNICAL FEATURES • Available from 1.3 to 5Mpix, Indoor or Day/Night • IP66/NEMA 5 (-22°F/-30°C to +122°F/50°C) • < 6 Watts total power, 12-24V AC or DC • IEEE 802.3af PoE compliant • IQfocus utility, Alarm I/O •... - Page 10 Sentinel Series Ordering Guide...
- Page 11 Sentinel Series Accessories Pole Mount Adapter - IQ800-PMA • The only pole mount designed exclusively for the IQinVision Sentinel Series • Powder coated galvanized steel construction for weather resistance and long-life use. • Comes with two 48” stainless steel straps with buckles for mounting on pole up to 14 inches in diameter.
- Page 12 Sentinel Accessories Pole Junction Box Cover • Fits any Sentinel Series Junction Box • Allows installation of back box days, weeks or even months prior to actual camera installation • Sturdy powder-coated cast- aluminum means cover can be used over and over again •...
- Page 13 Resources Want More Info? Try these following helpful links • Sentinel Data Sheet: http://www.iqeye.com/iqeye/images/uploads/File/Sales_Datasheets/Sentinel _Datasheet.pdf • Sentinel Installation Guide: http://www.iqeye.com/iqeye/images/uploads/File/Sales_Datasheets/Sentinel -Install-Guide.pdf • IQinVision Camera Reference Manual: http://www.iqeye.com/iqeye/images/uploads/File/manuals/reference.pdf • More info can be found at www.iqeye.com/sentinelseries.html • Sales & Technical Support Email: Sales@iqeye.com...
