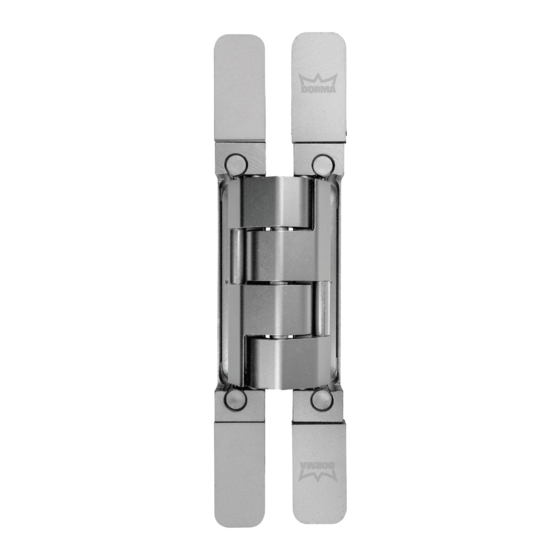

Summary of Contents for Dormakaba CONCEALEO AS 350
- Page 1 CONCEALEO ® Hinges The concealed solution for perfect closure.
- Page 2 Concealeo hinges Two strong global brands– Our new product portfolio All supported by a Dorma and Kaba – have includes everything from comprehensive service network. combined forces and are now locks and keys to a fully offering you a comprehensive networked electronic access portfolio of smart &...
- Page 3 Table of Contents Table of contents ConCealeo® aS 350 ConCealeo® BS 250 ConCealeo® CH 200 ConCealeo® CS 300 ConCealeo® aH 300 ConCealeo® BH 200 ConCealeo® CH 150 CONCEALEO CONNECT dormakaba CONCEALEO CONNECT KÜ – Cable transition Robust stainless steel spiral with stainless steel receptacle for inserting flexible connecting cables up to 8 mm Ø.
- Page 4 Concealeo hinges...
- Page 5 Hinge Characteristics ConCealeo® HInGe CHaRaCTeRISTICS Concealed Fixings Ensuring no visible screws Piston Guides for design aesthetics For maximum efficiency. For silent operation. Five axis Joint Designed for long-term Solid Machined Piece maintenance-free operation For strength Four Knuckle Joint To prevent twisting or tilting,...
-
Page 6: Ordering Guide
Model / Weight all door weights. dormakaba only uses transversally and channel the opening and Finish true steel for the hinge's body which is closing forces in circular fashion in all machined, not cast. -
Page 7: Weight Capacity
Tested to RC2 SPECIFICATION TEXT Concealed hinges to be dormakaba Concealeo series with 3D adjustment, solid metal machined body fully concealed when door is in closed position. Invisible screws fixings, suitable for minimum 40mm thick doors, with possibility to open 180°. - Page 8 Tested to RC2 SPECIFICATION TEXT Concealed hinges to be dormakaba Concealeo series with 3D adjustment, solid metal machined body fully concealed when door is in closed position. Invisible screws fixings, suitable for minimum 40mm thick doors, with possibility to open 180°.
- Page 9 Note: CH150 is not fire rated hinge SPECIFICATION TEXT Concealed hinges to be dormakaba Concealeo series with 3D adjustment, solid metal machined body fully concealed when door is in closed position. Invisible screws fixings, suitable for minimum 45mm thick doors, with possibility to open 180°.
- Page 10 <<1mm>> Adjustment SPECIFICATION TEXT Concealed hinges to be dormakaba Concealeo series with 3D adjustment, solid metal machined body fully concealed when door is in closed position. Invisible screws fixings, suitable for minimum 35mm thick doors, with possibility to open 180°. The 3D adjustment limits to be ±3mm in sides, ± 3mm in height and ±1mm in compression.
- Page 11 Adjustment SPECIFICATION TEXT Top View Concealed hinges to be dormakaba Concealeo series with 3D adjustment, solid metal machined body fully concealed when door is in closed position. Invisible Radius 12mm screws fixings, suitable for minimum 35mm thick doors, with possibility to open 180°.
- Page 12 'Silent' Soundless closing 'Discrete Design' Plates Cover Plates Adjustment SPECIFICATION TEXT Concealed hinges to be dormakaba Concealeo series with 3D adjustment, solid On Door Leaf metal machined body fully concealed when door is in closed position. Invisible Radius On Frame 7.5 mm...
- Page 13 Maintenance free bearings Top View SPECIFICATION TEXT Concealed hinges to be dormakaba Concealeo series with 2D adjustment, solid metal machined body fully concealed when door is in closed position. Screws fixings, suitable for minimum 40mm thick doors, with possibility to open 180°. The 2D adjustment limits to be ±3mm insides and ±...
- Page 14 Concealeo Connect CONCEALEO® CONNECT KÜ – Cable transition Robust stainless steel spiral with stainless steel receptacle for inserting flexible connecting cables up to 8 mm Ø. Ensures a pinch-free and tamper- proof connection between panel and door and window frames KÜ...
- Page 15 Accessories CONCEALEO® ACCESSORIES Safety plate for CONCEALEO® Screwing of concealed hinge into wooden frames used where the door is installed in cladding structure, or when the frame part is a cladding not enough to receive a hinge Safety Plate - Section drawing...
- Page 16 Hinge Placement CONCEALEO® Hinge placement for standard door weight As a standard, we recommend installing two hinges per door. Top and bottom hinges should be located 150mm and 250mm respectively from top and bottom edge of the door. Adding third or more hinges does not increase the rated capacity.
- Page 17 Group Hofwisenstrasse 24 www.dormakaba.com/mea 8153 Rümlang, Switzerland...
