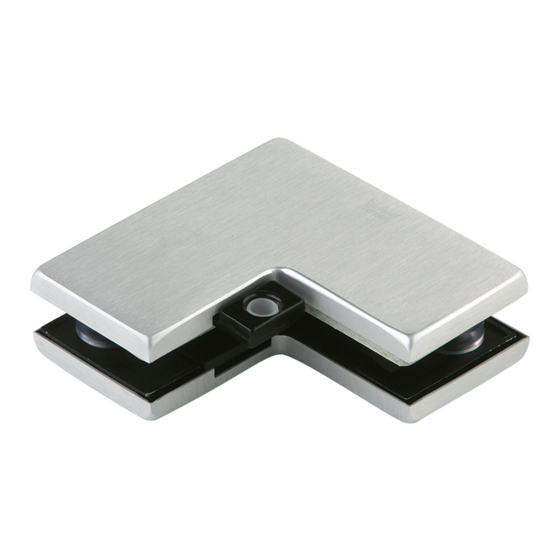

- Page 1 Universal Patch Fittings PT60/61 Overpanel and Sidelite with/without fin Installation instructions 833005 – 07-2019 | EN |...
-
Page 2: Table Of Contents
Universal Patch Fittings PT60/61 Table of Contents Installation Instructions Table of contents 1 Technical specifications Overview 1.1.1 General information 1.1.2 Intended use 1.1.3 Glass requirements/fittings/mounting 1.1.4 Requirements for glass panel 1.1.5 Safety instructions 1.1.6 Symbols used - Safety/Installation 1.1.7 Maintenance, care, repair 1.1.8 Disposal... -
Page 3: Technical Specifications
These instructions are for installation of the Universal • Due to crushing hazards and possible injury caused PT60/61 Connector for Overpanel and Sidelite with/ by breakage of glass during mounting, without Fin Patch Fittings for the following mounting corresponding protective clothing (especially gloves and style versions: and protective goggles) is required. -
Page 4: Door Dimensions & Options
Universal Patch Fittings PT60/61 Technical specifications Installation Instructions Door dimensions & options PT60 with Stop PT60 with Blank PT30 PT30 PT60 PT60 PT20 PT20 PT10 PT10 Stop Blank assembly assembly PT61 with Stop PT61 with Blank PT30 PT30 PT61... -
Page 5: Installation Instructions
Universal Patch Fittings PT60/61 Overall Installation Instructions 2 Installation instructions Overall Fig. 1 PT60 Shown 2.5 Fasteners (3x included) 2.1 Covers 2.4 Blank/stop 2.2 Patch plates (application dependent) 2.6 Glass grommets (3x included) 2.3 Gaskets Fig. 2 PT61 Shown 2.4 Blank/stop... -
Page 6: Install Inserts And Fitting Gaskets
Universal Patch Fittings PT60/61 Install inserts Installation Instructions Install gaskets Install fittings Install inserts and fitting gaskets Fig. 3 Glass gasket (2mm or 3mm) Fin gasket NOTE: Stop (1mm) assembly shown Stop/blank assembly 2.2.1 Snap stop or blank assemblies into patch 2.2.4... -
Page 7: Install Patch Fitting Covers
Universal Patch Fittings PT60/61 Install fin fittings Installation Instructions Install fin covers Install patch fitting covers Fig. 5 Cover Set screw Adhesive Hex key size Hole in cover Set screw 1.5mm 2.4.1 Remove adhesive backing. 2.4.4 Back out set screw to hold cover in place. -
Page 8: Install Fittings Onto Fin
Universal Patch Fittings PT60/61 Install fin fittings Installation Instructions Install fin covers Install fittings onto fin Fig. 7 Torque value Fin glass Fittings 10 ft lbs [15Nm] Hex key size Fin plate Glass grommets 2.6.1 Hold fin glass in place. - Page 9 DORMA USA, Inc. 1 Dorma Drive, Drawer AC Reamstown, PA 17567 T: 717-336-3881 F: 717-336-2106 www.dormakaba.com...
