Dormakaba MUTO Comfort Mounting Instructions

1 Information about this document
1.1 Contents and purpose
This manual describes the mounting, operation and
safe running of the integrated locking device.
The manual's picture section is partly supported by
text in this section of the manual.
NOTE
• The manual shows how to mount the
locking device on the left side of the main
closing edge (HSK-L). The mounting on
the right main closing edge (HSK-R) is
performed mirror-inverted.
• In this manual the mounting is shown
using the example of MUTO Premium XL
80/150. The manual is also valid for MUTO
Comfort L 80.
• Differences in mounting are shown
accordingly.
1.2 Target group
The target group of these mounting instructions is
qualified personnel who have been specially trained in
glazing installation.
1.3 Other applicable documents
• Mounting instructions for MUTO Comfort/Premium
integrated locking device (picture section)
• Mounting instructions for MUTO sliding door system
• Maintenance manual for manual sliding doors
1.4 Documents storage
This manual must be kept during the service life of the
product and must be passed on with the product.
MUTO Comfort / Premium
Integrated locking device
Mounting instructions
2 Safety
2.1 Intended use
• Only use the locking device in indoor areas and
prevent the effects of humidity, dust and sun or
other heat radiation.
• Only load the locking device up to the specified
power limit. Overloading can lead to destruction,
fire or electrical accident.
• When planning and installing electrical systems, the
relevant standards and directives of the country in
which the system is installed must be observed. The
applicable accident prevention regulations must be
observed.
• The locking device may only be operated with type
AAA 1.5 volt lithium batteries.
2.2 Limitations on use
• The locking device is not suitable for use in
emergency and escape routes.
3 Product description
The described locking device is part of a building
installation and is operated with a battery pack (3 V).
The MUTO locking device set may only be used in
combination with DORMOTION.
Always mount the locking device and battery pack
on the outside so that manual unlocking/locking via
the control unit can be operated from outside (see
Chapter 3.4).

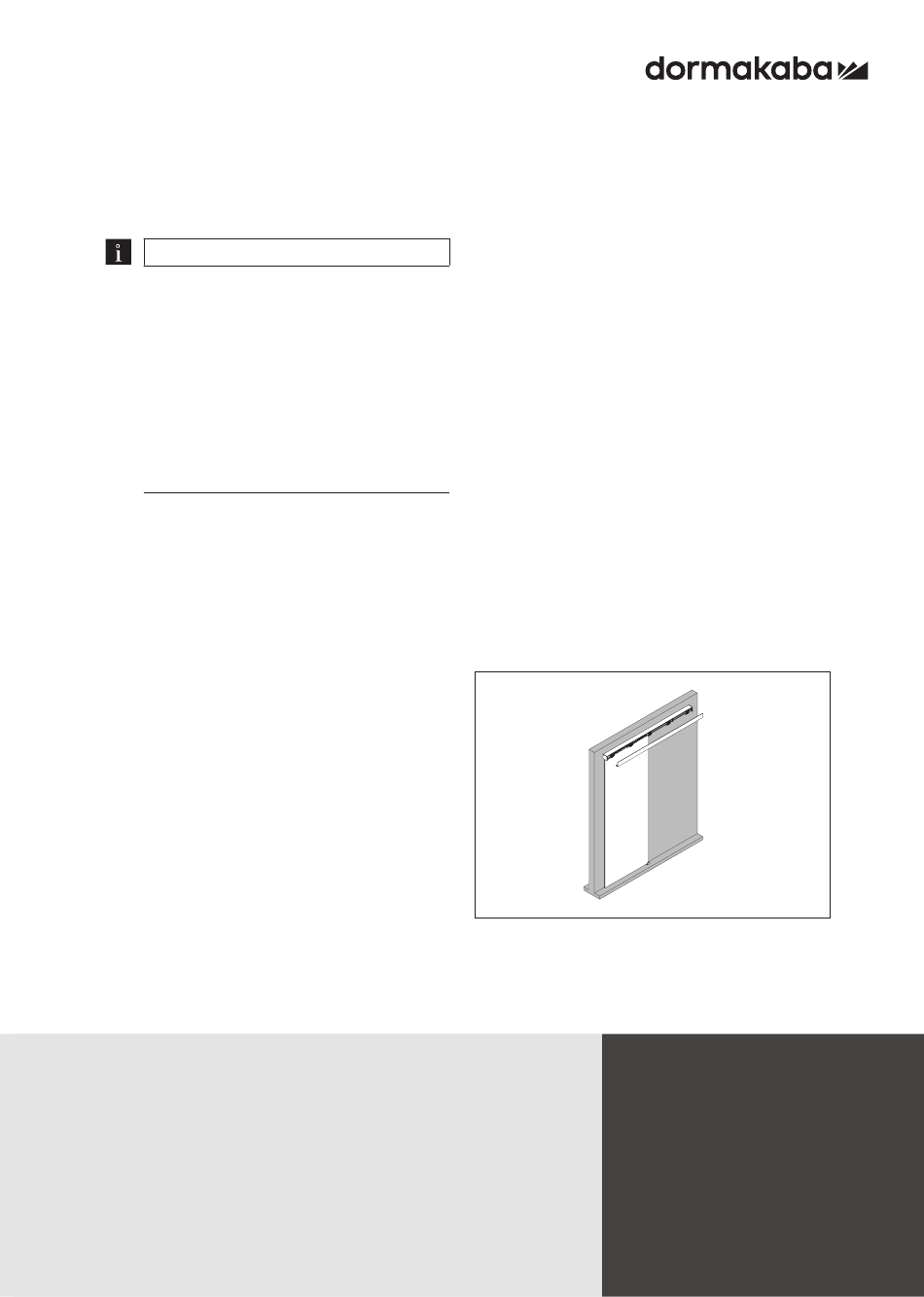

outside
Fig. 1 Locking device outside
