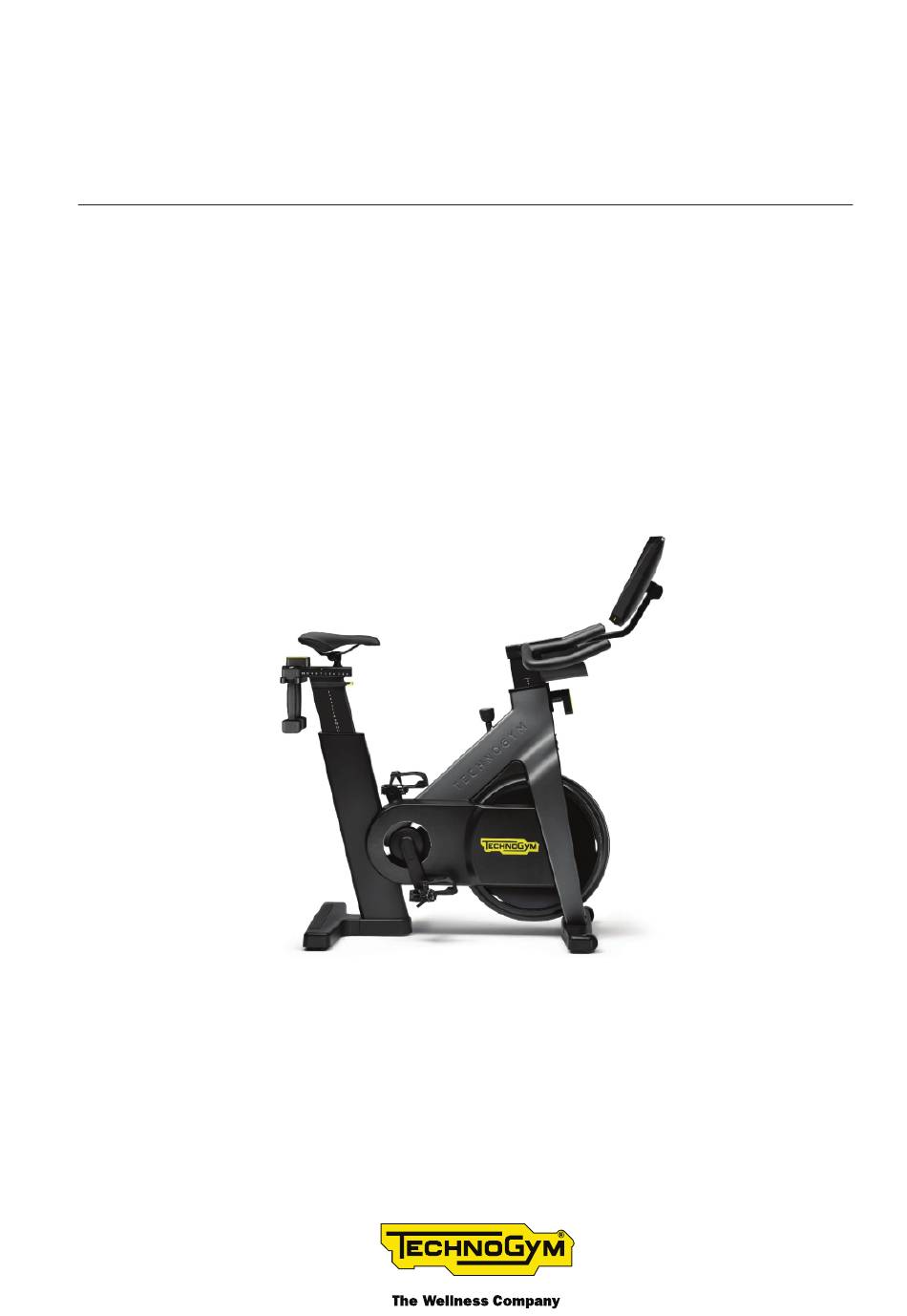

- Page 1 TECHNOGYM BIKE LIVE Pre-Installation Requirements Product Code: D93T Rev: 1.0 Date: 20-01-2021 Document Code: PIR-00161-EN...
-
Page 3: Table Of Contents
FIREWALL / ROUTER RULES FOR ACCESS TO MYWELLNESS CLOUD ....19 PROXY ........................19 ACCOUNT REQUIREMENTS ................21 TECHNOGYM ACCOUNT (BUSINESS TO CONSUMER (B2C)) .......21 SALEFORCE ACCOUNT ID (BUSINESS TO BUSINESS (B2B)) .......21 ACKNOWLEDGEMENT AND ACCEPTANCE ...........23 LIST OF CHANGES FOR MANUAL REVISION ..........25 REVISION 1.0 ......................25... - Page 4 TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 - 4 - PIR-00161-EN - Uncontrolled copy if printed...
- Page 5 This document contains proprietary information that is covered by copyright. All rights re- served. No part of this document may be circulated, copied, reproduced or translated into another language without the prior written consent of Technogym. Additional information may be included in the After Sales technical documents, available in the official ‘After Sales documents repository’.
- Page 6 TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 Blank page - 6 - PIR-00161-EN - Uncontrolled copy if printed...
-
Page 7: General Warnings
TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 GENERAL WARNINGS 1.1 INTRODUCTION This manual includes informative notes with specific meanings: Safety signs classified according to the relative seriousness of the potential hazards: DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. - Page 8 TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 Blank page - 8 - PIR-00161-EN - Uncontrolled copy if printed...
-
Page 9: Network Design - Configuration And Installation
For this purpose, Technogym will contact the customer a few days before the date set for instal- lation, to acquire the information related to the installation status of the network for the equipment and thus check that everything that has been requested to perform installation of the equipment is provided and operational. - Page 10 TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 Blank page - 10 - PIR-00161-EN - Uncontrolled copy if printed...
-
Page 11: Display
TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 DISPLAY The TECHNOGYM BIKE product is fitted with 21.5-inch Live display: Fig. 1 PIR-00161-EN - Uncontrolled copy if printed - 11 -... - Page 12 TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 Blank page - 12 - PIR-00161-EN - Uncontrolled copy if printed...
-
Page 13: Electrical And Technical Data / Requirements
TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 ELECTRICAL AND TECHNICAL DATA / REQUIREMENTS 4.1 DATA & REQUIREMENTS TECHNOGYM BIKE RESTYLING Power Source (Equipment input) 12V 5A Power Supply Unit Input (Electrical Network): 100÷240Vac 50/60Hz 2A Output: 12V 5A Weight of the product... -
Page 14: Positioning Of Power Inlet
TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 4.2.1 Positioning of Power Inlet Fig. 2 - Positioning of power inlet 4.3 PLACE OF USAGE Install and use the product in an environment that meets the requirements below: • Free space - at least 60 cm wide - around the product;... -
Page 15: Network Requirements
5.1 INTRODUCTION TECHNOGYM BIKE supports both wireless and wired internet connection. In all cases, the network must be installed and configured by the customer before Technogym deliv- ers the product, in accordance with the technical specifications set out below. 5.2 ETHERNET CABLED NETWORK Connect the product to the wired network, taking into account the following requirements: •... -
Page 16: Wi-Fi Network Requirements
TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 5.3 WI-FI NETWORK REQUIREMENTS Connect the product to the Wi-Fi network, taking into account the following requirements: • Standard: IEEE 802.11 a/b/g/n/ac at 5GHz or 2.4GHz; • Security Protocol: WEP, WPA/WPA2, open (free) network;... -
Page 17: Facility / Hotel (Business To Business (B2B))
TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 5.4.1 Facility / Hotel (Business to Business (B2B)) The wireless network should be installed and configured only by specialised companies and expert technicians. ▪ The equipment must not be more than 25-30 metres LOS (line of sight) away from the Access Point (analyse possible problems due to the presence of walls or other obstacles between the Access Point and the equipment). - Page 18 TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 In general: Internet Speed requirements for streaming N°1 Equipment 5 Mbps or more for the best audio and video experience: HD quality (up to 1080p) 3 Mbps for viewing medium quality (standard definition video, DVD quality) 1.5 Mbps...
-
Page 19: Firewall / Router Rules For Access To Mywellness Cloud
TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 5.7 FIREWALL / ROUTER RULES FOR ACCESS TO MYWELLNESS CLOUD The Firewall\Router installed locally must be configured with ports 80 and 443 open. Open these ports also on the devices of the related ISP (Internet Service Provider). - Page 20 TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 Blank Page - 20 - PIR-00161-EN - Uncontrolled copy if printed...
-
Page 21: Account Requirements
6.1 TECHNOGYM ACCOUNT (BUSINESS TO CONSUMER (B2C)) ▪ The customer must create the Technogym Account on the Technogym site, at the time of sale of equipment. This Account is fundamental to unlock the equipment, during the first Login; ▪ The Technogym Customer Service Department must create the Salesforce ID Account of the customer, at the time of sale of equipment. - Page 22 TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 Blank Page - 22 - PIR-00161-EN - Uncontrolled copy if printed...
-
Page 23: Acknowledgement And Acceptance
TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 ACKNOWLEDGEMENT AND ACCEPTANCE Date: ____________________________________________ Acknowledged and accepted __________________________ PIR-00161-EN - Uncontrolled copy if printed - 23 -... - Page 24 TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 Blank page - 24 - PIR-00161-EN - Uncontrolled copy if printed...
-
Page 25: List Of Changes For Manual Revision
TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 LIST OF CHANGES FOR MANUAL REVISION The main changes made to this manual, are listed below in chronological order. 8.1 REVISION 1.0 First released version. PIR-00161-EN - Uncontrolled copy if printed - 25 -... - Page 26 TECHNOGYM BIKE LIVE Pre-Installation Requirements Rev. 1.0 Blank page - 26 - PIR-00161-EN - Uncontrolled copy if printed...
