Summary of Contents for Technogym Bike Excite Live

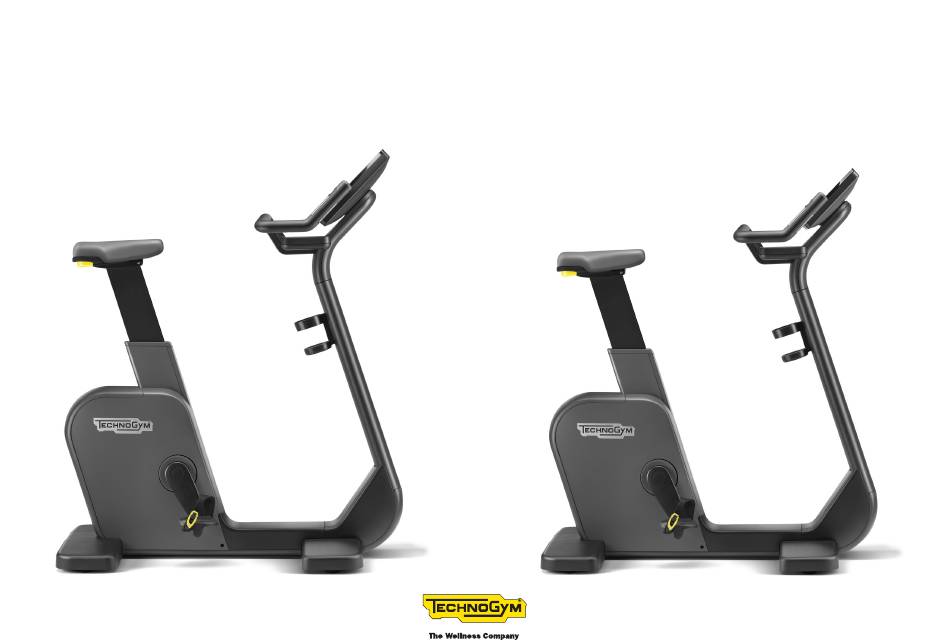

  • Page 1 BIKE EXCITE LIVE ® User Manual...
  • Page 2: Table Of Contents

    Using the heart rate monitor ....................11 Troubleshooting ..........................25 Using the wireless charger .......................12 Technical Support Service .......................26 Technical specifications ......................13 Storing the product ........................27 Turning the product ON and OFF ..................14 Disposing of the product ......................27 Place of usage ...........................15 BIKE EXCITE LIVE...
  • Page 3: Important Safety Instructions

    Please read all instructions before using the product. These instructions were Do not use any accessories other than those recommended by Technogym. written to ensure the safety of the user and to protect the product. Never turn on the product if it has a damaged cable or plug, if it is not working When using an electrical appliance, basic precautions should be always correctly, if it has been knocked over or damaged, or if it has fallen in water.
  • Page 4: Personal Safety

    Tie long hair back. Keep garments or towels away from moving parts. Technogym is not responsible for any harm due to any failures or damage caused by unauthorised maintenance, misuse, accident, negligence, improper When using the product, other people must remain at a safe distance.
  • Page 5: Manufacturer And Product Identification

    A - Manufacturer’s name and address B - Place of manufacture Technogym S.p.A. via Calcinaro 2861, Cesena (FC) - Italy Made in Italy C - Description of product BIKE LIVE 16 P...
  • Page 6: Product Description

    Display (A). Enables you to view and manage workout and entertainment information, settings and content. The touch-screen interface lets you include content offered by the Technogym App Store. Handlebar (B). Provides stability when you climb in and out of the product.
  • Page 7 Headphone plug (L). To connect your headphones and listen to audio content. Headphones with microphone can also be used. USB port (M). Technogym key slot (N). The device reads workout data from the Technogym key and saves the results of the current exercise. NFC sensor / RFID reader (P).
  • Page 8 Fast Track Controls (K). Enable you to change the level of difficulty of the exercise without taking your hands off the handlebar. USB port (M). Technogym key slot (N). The device reads workout data from the Technogym key and saves the results of the current exercise. NFC sensor / RFID reader (P).
  • Page 9: Using The Product

    The Bike must only be used for the purpose for which it was designed and made: as a cycle ergometer. Any other use is to be considered inappropriate and therefore dangerous. BIKE EXCITE LIVE...
  • Page 10 Models 9000, 7000, 900, 700. Raise and lower the clasp buckle several times (Q) to tighten the pedal strap. Keep the clasp buckle raised (R) to loosen the pedal strap. Models 5000, 500. Introduce the strap slot into the pedal tab. BIKE EXCITE LIVE...
  • Page 11: Using The Heart Rate Monitor

    Do not use the heart rate monitor if you have a cardiac support device such as a pacemaker or similar. Diminish the intensity of your exercise if a message reporting that the heart rate is too high appears. BIKE EXCITE LIVE...
  • Page 12: Using The Wireless Charger

    Do not leave magnetic cards in the vicinity of the charger. Magnetic fields can cause damage to magnetic cards such as credit cards and boarding passes. Do not use the wireless charger for other than its intended purposes. The wireless charger is available in the 9000 model. BIKE EXCITE LIVE...
  • Page 13: Technical Specifications

    Bike is a commercial device, designed for indoor use in residential and professional environments. It is classified as a class SA device according to ISO EN 20957-1. 598 mm (24") Mains powered product Power supply 100-240 Vac 50/60 Hz Maximum input power 160 VA Fuses 2 x 3.15A (F) BIKE EXCITE LIVE...
  • Page 14: Turning The Product On And Off

    “0” position (off). Take the power plug out of the socket to isolate the product. Self-powered product Start pedalling to turn on the product. To turn the product off, stop pedalling. BIKE EXCITE LIVE...
  • Page 15: Place Of Usage

    Do not operate where spray products or oxygen are being used. In order to guarantee the Manufacturer’s performance specifications, do not use the product in areas where the presence of short waves or similar interference is high. BIKE EXCITE LIVE...
  • Page 16: Moving The Product

    After moving the product, always check it is level to safeguard correct operation. WARNINGS Move the product very carefully, because it may become unstable and tip over. Do not lift or move the product from the stabilisers or display. BIKE EXCITE LIVE...
  • Page 17: Levelling The Product

    Adjust the feet as shown in the illustration in order to level the product. Loosen the locknut (B). Screw or unscrew the foot (A) until the frame is in a stable position. After adjusting, tighten the lock nut (B). BIKE EXCITE LIVE...
  • Page 18: Electrical Connection

    The wall socket must be located in a place where the product may be easily and safely plugged in and unplugged. The power switch must be in the 0 position (OFF) before plugging in the product. Check the state of the power cable periodically. BIKE EXCITE LIVE...
  • Page 19 4.75 mm (0.19 in) Jack inner hole diameter 1.7 mm (0.067 in) Jack length 11 mm (0.43 in) ± 0.5 WARNINGS Only use devices that meet current standards. Do not use power adapters with characteristics other than those specified. BIKE EXCITE LIVE...
  • Page 20 Improper connection of the earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or maintenance technician if you are in doubt whether the product is properly grounded. Do not modify the plug provided with the product; if it does not fit the socket, have a proper socket installed by a qualified electrician. BIKE EXCITE LIVE...
  • Page 21: Other Connections

    The wall socket for the antenna cable must be located in a position where the plug can be inserted and removed with ease. Fasten the cables with cable ties. WARNING Connected devices must comply with international standards. BIKE EXCITE LIVE...
  • Page 22: Routine Maintenance

    Contact the Technogym Technical Support Service for information about any maintenance operations not described in this manual. Cleaning The product should always be kept clean and free of dust, in compliance with common health and hygiene standards.
  • Page 23: Periodic Maintenance

    Periodic maintenance WARNINGS Periodic maintenance, adjustment and lubrication operations must be performed by the Technogym Technical Support Service. Before servicing, turn off the product by moving the switch to the 0 position and take the power plug out of the...
  • Page 24 WARNINGS Fuses must be replaced by the Technogym Technical Support Service. Before making the replacement, turn off the product by moving the switch to the 0 position and take the power plug out of the wall socket.
  • Page 25: Troubleshooting

    Contact the Technogym Technical Support Service. The product does not turn on (mains powered model) The power supply cable is not plugged in properly. Check the connection. To replace a blown fuse, contact the Technogym Technical Blown fuse Support Service. The product is not level.
  • Page 26: Technical Support Service

    WARNING: Replace with the same type and rating of fuse: 2 x 3,15A (F) 250 V Massage and exercise machine: 2AD3 Item Code DFCU3Q5TANFQEA10 When you contact the Technogym Technical Support Service, you must give the following 03/20 S/N DFCU3Q020000061 information:...
  • Page 27: Storing The Product

    Under the provisions put into effect by the European Union Member States, private citizens resident within the European Union may take used electrical and electronic equipment to authorised collection centres. If the product is used for commercial purposes, contact your reseller or the Technogym Customer Service, in the various Countries, to arrange for collection and disposal of waste from electrical and electronic equipment.
  • Page 28 BIKE_EXCITE_LIVE_en_AA 0SM01162...
