Croydex WC257022 Assembly Instructions

Thank you for purchasing this Croydex product. Please follow the fixing and care instructions to ensure
that your bathroom product is fitted safely and that it retains its high quality finish. Please retain this
leaflet for future reference.
This instruction leaflet applies to the following product:
WC257022 (White)

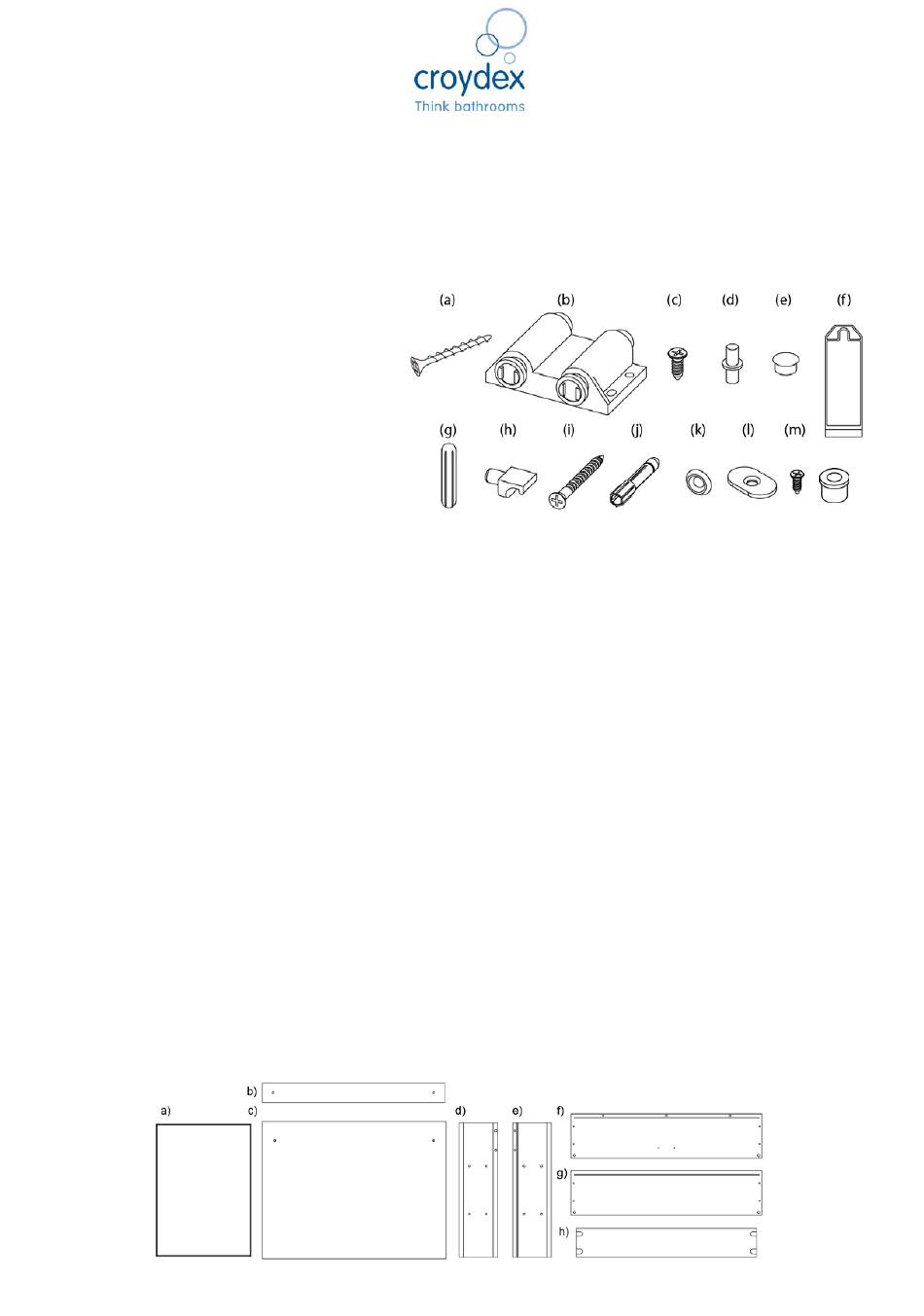

Fixing Pack Contents

(a) 8 x Fixing screws
(b) 1 x Magnetic catch
(c) 4 x Magnetic catch Screws
(d) 4 x Mirrored door pivot pins
(e) 8 x screw caps
(f) 1 x Glue sachet
(g) 7 x Wooden dowels
(h) 4 x Shelf supports
(i) 2 x Wall fixing screws
(j) 2 x Wall plugs
(k) 2 x Washers
(l)
2 x Magnetic door plate
(m)
2 x Magnetic door plate screws
(n) 2 x Pivot pin bush

Tools Required

Drill; 6mm Masonry Drill Bit; 6mm Ceramic Drill Bit (optional); Cross Head Screwdriver; Large Flat Head
Screwdriver; Bradawl; Pencil, Spirit Level.
KEEP DIY TOOLS OUT OF THE REACH OF CHILDREN

Home Safety Advice

•
It is recommended that two people fit the cabinet to ensure that it is fitted safely.
•
Always take care when using an electric drill, particularly in the bathroom. Always check for
hidden cables and pipe work before drilling and take extreme care if there is any water in the
working area.
•
It is advisable to use a residual current circuit breaker (RCCB).
•
Always wear suitable eye protection when drilling.
•
If the product is to be fitted on a ceramic tiled wall, a ceramic drill bit should be used. Always
ensure that the drill hole passes through the central tiled area rather than through the grouted
area. To prevent unnecessary damage to the tile, mask the area around the hole with tape
before drilling.
•
Do not strike the product with hard or sharp objects.
•
Do not overload the cabinet. Maximum safe working load is 10kg evenly distributed if mounted
on to a solid wall. If mounted on to a cavity wall reduce the load to 5kg evenly distributed.

Component Key

(a) Mirrored Doors, (b) Strengthening Baton, (c) Backing Board, (d) Side Panel, (e) Side Panel,
(f) Top Panel, (g) Base Panel, (h) Shelf.

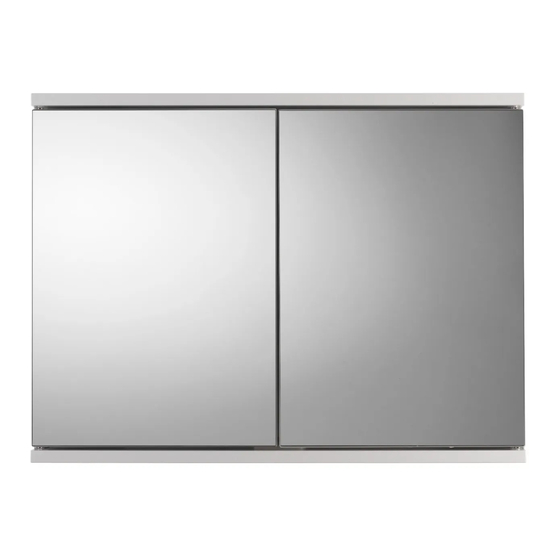

Double Door Cabinet
(n)
