Thank you for purchasing this Croydex product. Please follow the fixing and care instructions to ensure
your cabinet is fitted safely and retains its high quality finish.
Please retain this leaflet for future reference.
This installation guide applies to the following cabinets:

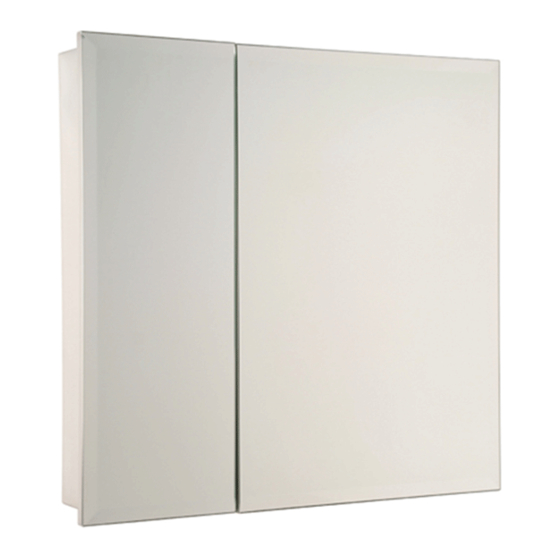

WC216105 - Dempsey Double Door Cabinet 610mm x 610mm (24" x 24")
WC225605 - Harper Triple Door Cabinet 914mm x 760mm (36" x 30")
Tools required - not supplied
Pencil; Tape Measure; Philips Screwdriver; Flat Head Screwdriver; Spanner / Wrench 7mm ; Drill;
8mm Drill Bit, 11mm Drill Bit; (Ceramic drill bit optional).
KEEP DIY TOOLS OUT OF THE REACH OF CHILDREN
Home Safety Advice
- It is recommended that two people fit this product to ensure that it is fitted safely.
- Always take care when using power tools, particularly in the bathroom.
- Always check for hidden cables and pipework before drilling and take extreme care if there is any
water in the working area.
- It is advisable to use a residual current circuit breaker (RCCB).
- Always wear suitable eye protection when drilling.
- If the product is to be fitted on a ceramic tiled wall, a ceramic drill bit should be used.
- Always ensure that the drill hole passes through the central tiled area rather than through the grouted
area. To prevent damage to the tile, mask the area around the hole with tape before drilling.
- Do not strike the product with hard or sharp objects.
Product Care
To retain the best quality finish, clean product regularly with a soft damp cloth.
Do not use abrasive or chemical cleaners as these will damage the product.
1
