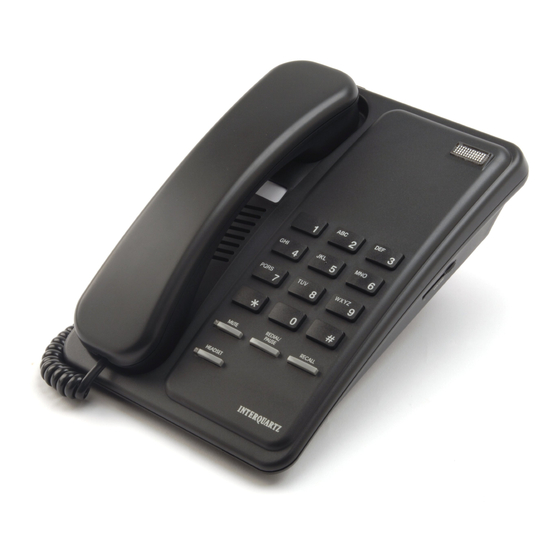

Interquartz enterprise 98390 Operating Instructions Manual
Hide thumbs
Also See for enterprise 98390:
- Operating instructions manual (15 pages) ,
- Specifications (1 page) ,
- Features (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Interquartz enterprise 98390
Summary of Contents for Interquartz enterprise 98390
- Page 1 Model 98390 OPERATING INSTRUCTIONS...
-
Page 2: Table Of Contents
This Interquartz telephone has been manufactured to very high standards and is very easy to use. Please read this manual carefully to find out how to use the features. Contents 1. Important notes ................2 Intended use ..................2 Telephone facilities ................2 REN Number .................. -
Page 3: Important Notes
This apparatus is intended for use on 2 wire analogue PSTN and PABX circuits within the United Kingdom. Declaration of Conformity Interquartz (UK) Limited declares under its sole responsibility that this product Model: ENTERPRISE Is in conformity with the following relevant harmonised standards Health &... -
Page 4: Ren Number
REN number The Ren number of this telephone is 1. If you wish to connect any other equipment to the line, simply add the REN numbers of each piece together and ensure that the total does not exceed 4. If too many phones are connected to the line, the circuit may be overloaded and your telephone may not ring. -
Page 5: Installation
2. Installation This telephone is designed to plug straight into a modular style socket. If you do not have one of these sockets, they can be obtained from your Network Supplier. A card is included for this purpose. Simply complete it and send it to your Network Supplier. -
Page 6: Figure 3 Handset Retainer For Wall Mount
To enable the handset to be supported in the cradle when the phone is mounted on the wall, follow the procedure shown in Figure 3 to reserve the HANDSET RETAINER. 1. Use your thumb to press the 2. Push the HANDSET RETAINER HANDSET RETAINER out of the slot 4. -
Page 7: Telephone Features
3. Telephone Features Ringer Indicator Flashes when the telephone rings with an incoming call. Ringer Volume Switch Located on the base of the unit (see Figure 4). Move switch to select no sound (OFF), muted sound (LOW) or full sound (HIGH) for ringing on incoming call. -
Page 8: Operation
Redial / Pause Button When pressed as the first button - redials last number dialled Otherwise, it serves as a pause button inserting a 3.6 second pause in the number sequence. 4. Operation To dial a number, lift the handset, wait for the tone and then key in the number required. -
Page 9: Pabx & System Usage
5. PABX & System Usage This telephone can be used behind a PABX or on a network that utilises the recall function. There are many such systems and whilst it is likely that no problems will be encountered, it cannot be guaranteed that the telephone will operate correctly under all circumstances and any cases of difficulty should be referred to your supplier. -
Page 10: Maintenance And Problem Solving
Voice messaging When used behind a PABX, this telephone will respond to voice messaging systems on many PABX types, giving a visual signal of a message waiting. Your telephone manager will be aware of which system is relevant to your organisation and will adjust or advise you on the adjustment of your telephone accordingly. -
Page 11: Warranty And Service
April) 1995. Under the six year warranty, cover will apply until 10 April 2001. A warranty is designed to cover either manufacturing faults or component defects. It is not designed to cover fair wear and tear. The Interquartz warranty is no exception. - Page 12 This warranty is in addition to any statutory rights This telephone is approved to EEC directive 1999/5/EC Distributed in the United Kingdom by Interquartz (UK) Limited Manufactured by International Quartz Limited A Subsidiary of Chiaphua Industries Ltd. 3C39001UXT12B...
