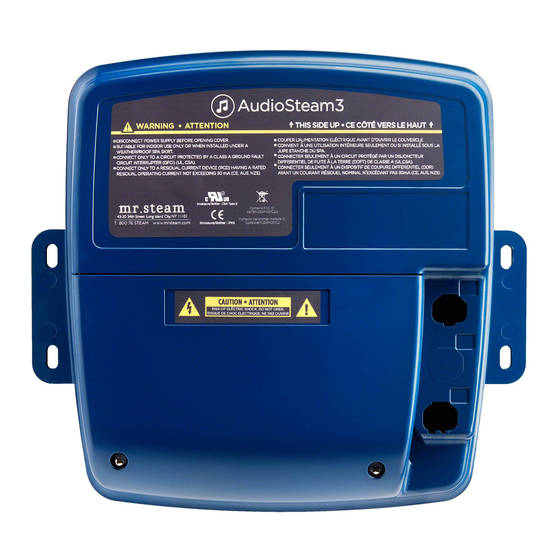

- Page 1 Installation, Operation and Maintenance Manual Installation, Operation, and Maintenance Manual AudioSteam3 AudioSteam3 ® ® steam ® Feel Good Inc. ®...
- Page 2 AudioSteam3 is damaged in any way, including when the power-supply cord or plug is damaged, liquid is spilled into or objects fall into the AudioSteam3 is exposed to rain or moisture, the AudioSteam3 does not operate normally, or the AudioSteam3 dropped.
- Page 3 • To prevent electric shock hazard and/or water damage to the AudioSteam3, all conduits must be plugged with the included foam blocks. • To prevent a shock hazard do not install the AudioSteam3 in a location where it can get wet. AudioSteam3 must be installed in a dry, indoor location.
-
Page 4: Table Of Contents
2. Installing AudioSteam3 ..... . . 6 AudioSteam3 Dimensions ......6 Locating and Installing AudioSteam3 . -
Page 5: General Information
Box Contents o t o A te AudioSteam3 AudioSteam3 General Installation Figure 1 shows how the AudioSteam3 interconnects with the steam generator, iSteam3, and audio speakers. IMPORTANT NOTE: AudioSteam3 only integrates with iSteam3. Speaker wire (100 ft max) Antenna (4 ft) -
Page 6: Installing Audiosteam3
Shock hazard. Do not place the control box in a location where it can get wet. Locating and Installing AudioSteam3 To prevent water from getting inside the device, AudioSteam3 should be mounted on two stable vertical surfaces (e.g., studs) as shown in Figure 5. Figure 3 Using screws and washers, firmly attach AudioSteam3 using the upper mounting holes, one at a time, on each side of the unit. -
Page 7: Connecting Audiosteam3
To remove the AudioSteam3 cover: 1. Using a Phillips-head screwdriver, remove the two cover screws from the front of the AudioSteam3 (Figure 6), and remove the cover from the unit. 2. Connect the outputs of AudioSteam3 as shown in Figure 7. -
Page 8: Connecting The Fm Antenna & Auxiliary Cord
(Figure 9). For best recep-tion, fully deploy the antenna in a vertical orienta-tion Auxiliary outside of the AudioSteam3 housing. Cord 2. Connect a 1/8” (3.5 mm) stereo audio cord (not included) to the auxiliary output, and route the... -
Page 9: Connecting Audiosteam3 To The Steam Generator
® AudioSteam3 ® Connecting AudioSteam3 to the Steam Generator To operate the AudioSteam via iSteam3, you must connect the AudioSteam3 (Figure 12) to an internal connector in the steam generator. Power Cord Grounded Outlet Control Cable Shock hazard. Power must be disconnected at the main electrical Connection Port supply before removing the steam generator cover. -
Page 10: Pairing A Bluetooth-Enabled Device
AudioSteam3. To pair a Bluetooth-enabled device to AudioSteam3: 1. Ensure that the mobile device is in range of AudioSteam3, and that it is powered on and Bluetooth is turned on. 2. Open the Bluetooth settings on your device. -
Page 11: Audiosteam3 Specifications
Storage temperature: MECHANICAL Weight: BLUETOOTH RECEIVER LINE INPUT Input voltage: AUDIO OUTPUTS APPLICABLE STANDARDS 25 W , 50 W peak 50 W , 100 W peak Harmonic distortion Harmonic distortion AUXILIARY INPUTS AudioSteam3 is compliant with the Radio Equipment Directive (RED) -
Page 12: Regulatory Statements
® ® ® AudioSteam3 5. Regulatory Statements FCC Compliance Statement Contains Transmitter Module FCC ID: A8TBM23SPKXYC2A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 13: About Audiosteam3
AudioSteam3 (without having to go through the pairing process again) when moved within range. • AudioSteam3 will store up to eight devices in its memory. If one of the last three paired devices is in range and has Bluetooth turned on, it will automatically connect to AudioSteam3. -
Page 14: Troubeshooting
Tap the FORWARD and BACK buttons (C and E) to select a track in the device’s playlist. d. Tap the PLAY button (D) to play or pause the track. 7. To turn off AudioSteam3 (Figure 19), tap the POWER icon (A), and then tap the MUSIC button (B). Figure 14... -
Page 15: Www.mrsteam.com Hello@Mrsteam.com
steam ® Feel Good Inc. ® www.mrsteam.com Products, information and specifications are subject to change without notice. Call Sales & Support at 1 800 76 STEAM (East Coast) or 1 800 72 STEAM (West Coast) for more information. steam ® www.mrsteam.com hello@mrsteam.com 43-20 34th Street, Long Island City NY 11101 1 800 76 STEAM 9410 S.
