User Manual for Wrist Oximeter

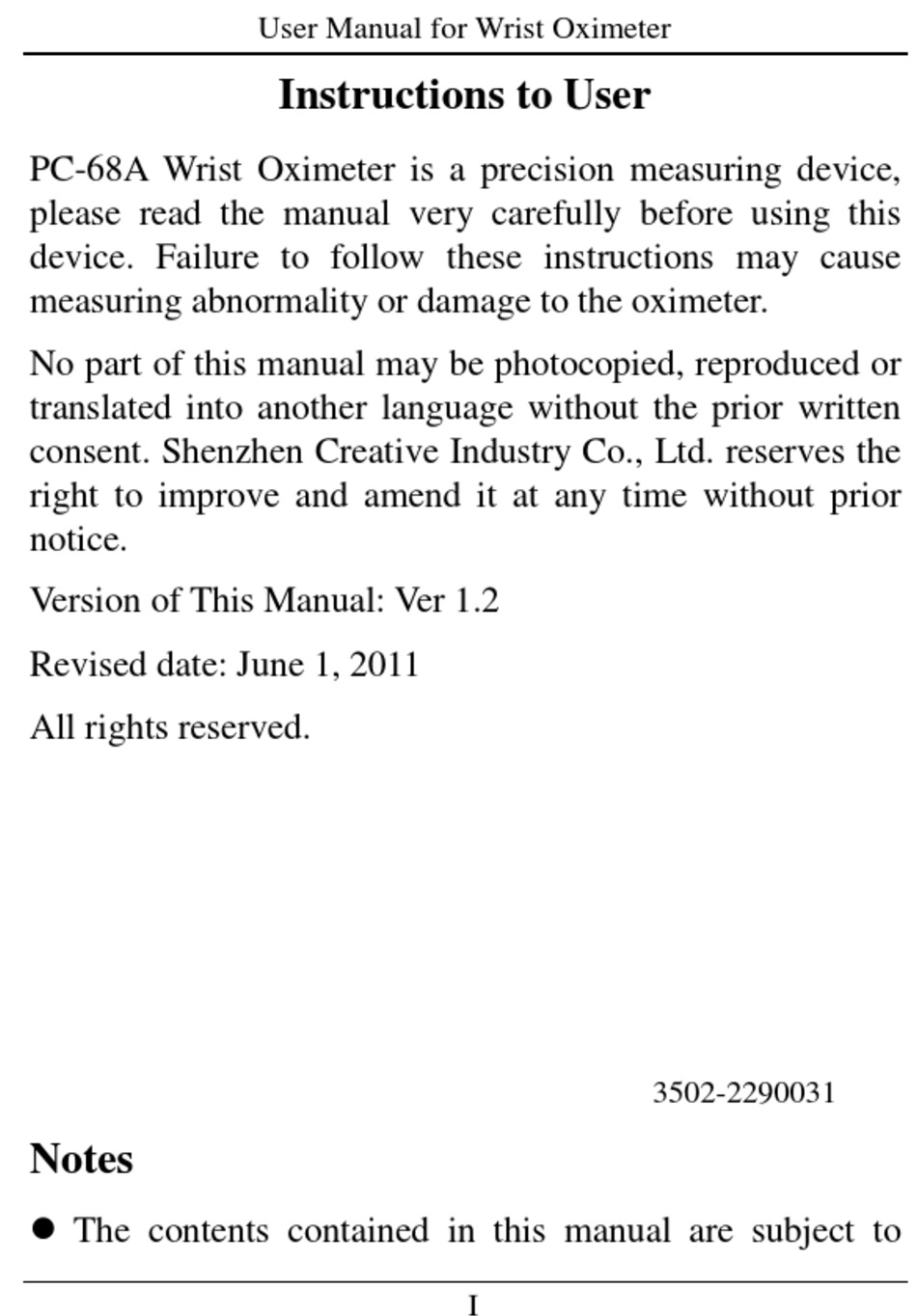

Instructions to User
PC-68A Wrist Oximeter is a precision measuring device,
please read the manual very carefully before using this
device. Failure to follow these instructions may cause
measuring abnormality or damage to the oximeter.
No part of this manual may be photocopied, reproduced or
translated into another language without the prior written
consent. Shenzhen Creative Industry Co., Ltd. reserves the
right to improve and amend it at any time without prior
notice.
Version of This Manual: Ver 1.2
Revised date: June 1, 2011
All rights reserved.
3502-2290031
Notes
The contents contained in this manual are subject to
I
Advertisement
Table of Contents
Related Manuals for Creative PC-68A
Summary of Contents for Creative PC-68A
- Page 1 User Manual for Wrist Oximeter Instructions to User PC-68A Wrist Oximeter is a precision measuring device, please read the manual very carefully before using this device. Failure to follow these instructions may cause measuring abnormality or damage to the oximeter.
- Page 2 User Manual for Wrist Oximeter change without prior notice. Information furnished by Creative is believed to be accurate and reliable. However, no responsibility is assumed by us for its use, or any infringements of patents or other rights of third parties that may result from its use.
- Page 3 User Manual for Wrist Oximeter Warnings An uncomfortable or painful feeling may appear if using the oximeter continuously on the same place for a long time, especially for poor microcirculation patients. It is recommended that the oximeter should not be applied to the same location for longer than 2 hours.
- Page 4 User Manual for Wrist Oximeter immediately. DO NOT operate the button on the front panel with sharp materials. High temperature or high pressure steam disinfection to the oximeter is not permitted. Refer to related chapter for instructions of cleaning and disinfection.
-
Page 5: Table Of Contents
User Manual for Wrist Oximeter Table of Contents 1 OVERVIEW ..............1 1.1 Appearance .............. 1 1.2 Name and Model ............2 1.3 Conformation ............3 1.4 Features ..............3 1.5 Intended Use ............4 1.6 Key of Symbols ............5 2 BATTERY INSTALLATION........ -
Page 6: Overview

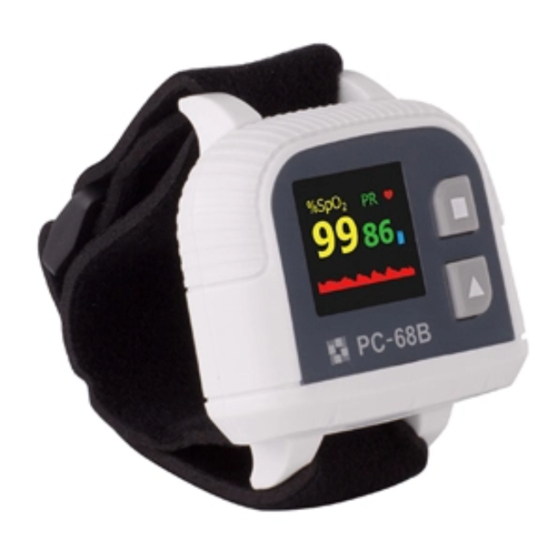

1 Overview 1.1 Appearance Figure 1 Front View 1. LCD screen 2. Set key: shift display modes, confirm the operation etc. 3. Scroll key: move display cursor, modify parameter values etc. -
Page 7: Name And Model
User Manual for Wrist Oximeter Figure 2 Frontal Side View 4. Buzzer 5. Data interface 6. Wristband Underlay Figure 3 Right Side View 7. SpO probe receptacle 1.2 Name and Model Name: Wrist Oximeter Model: PC-68A... -
Page 8: Conformation
User Manual for Wrist Oximeter 1.3 Conformation It comprises the main unit and SpO probe. 1.4 Features Wrist Oximeter can be used to monitor pulse oxygen saturation (SpO ) and pulse rate accurately. Simply put your finger into sensor, SpO value and pulse rate value will be displayed on screen and stored in the device. -
Page 9: Intended Use
User Manual for Wrist Oximeter monitoring continuously. 1.5 Intended Use This Wrist Oximeter is intended for measuring the pulse rate and functional oxygen saturation (SpO ). It is applicable for long-term measurement of adult’s SpO pulse rate in homes and clinics. -
Page 10: Key Of Symbols
User Manual for Wrist Oximeter 1.6 Key of Symbols Symbols Descriptions %SpO Pulse Oxygen Saturation Pulse rate icon(Unit: beats per minute) Low battery voltage Memory full. CE mark Serial number Date of manufacture Authorised representative European community Manufacturer (including address and date) With Type BF applied part Warning ─... -
Page 11: Battery Installation
User Manual for Wrist Oximeter 2 Battery Installation Figure 4 Battery Installation 1. Lift up the cloth covered on the battery cover. Then, use your index finger and middle finger to press against the battery cover. Meanwhile, slide it towards the side with probe (as shown in Figure 4). -
Page 12: Operation
User Manual for Wrist Oximeter Please take care when you insert the batteries, as the improper insertion may make the device not work. 3 Operation 3.1 Measuring Operation 1. Insert the external SpO probe connector into SpO probe receptacle properly. Figure 5 Sp0 Probe Connection 2. - Page 13 User Manual for Wrist Oximeter Finger tip sign Figure 6 Placement Demonstration 3. Next, insert your index finger into the probe until the fingernail tip rests against the stop at the end of the probe (Figure 7). Adjust the finger to be placed evenly on the middle base of the sensor (make sure the finger is in the right position).
- Page 14 User Manual for Wrist Oximeter Wrong Placement of the Probe: Finger out Not deep enough Figure 8 4. The oximeter will automatically start measurement in 2 seconds. Then the default screen will be displayed (Figure 9). User can read the values from the display screen. Figure 9 Default Screen ...
- Page 15 User Manual for Wrist Oximeter will be displayed, refer to section 3.2 for details; Longtime press “▲” key: turn on/off LCD display; 5. Prompt Information During monitoring, if there is no signal to be detected, the short lines will be prompted on the screen instead of the numerical values, as shown in Figure 10.
- Page 16 User Manual for Wrist Oximeter Memory full Figure 11 Memory Full Note: It is suggested that the data shall be uploaded to computer for saving, or the earliest records will be overwritten. 6. Working Mode The measurement will start automatically when the finger is inserted into the soft rubber of the sensor, so the data recording (SpO and PR values) starts...
-
Page 17: Alarm Limit Settings
User Manual for Wrist Oximeter measuring information again. If there is no signal to be detected (e.g. finger off) for 20 seconds, the device will be at idle state (i.e. blank screen and standby for measurement). When the device is at idle state, long time pressing any key will activate the LCD display, or once the finger is inserted in the soft rubber of the sensor, the measurement will start and LCD display will be... - Page 18 User Manual for Wrist Oximeter “%SpO Lo”: SpO lower alarm limit; “90”: SpO preset value; “ ”: selecting cursor; Key Operations: On SpO Lower Limit Setting screen (Figure 12A), press “■” key to move cursor to SpO value (Figure 12B).
- Page 19 User Manual for Wrist Oximeter Figure 11A Figure 11B Figure 12A Figure 12B “Lo BPM”: PR lower alarm limit; “60”: preset value; “Hi BPM”: PR higher alarm limit; “120”: preset value; “ ”: selecting cursor; -14-...
-
Page 20: Upload Data
User Manual for Wrist Oximeter Key Operations: Short time press “■” key: move the cursor upwards or downwards; Short time press “▲” key: increase the numerical value single time; Long time press “▲” key: increase the numerical value continuously;...
