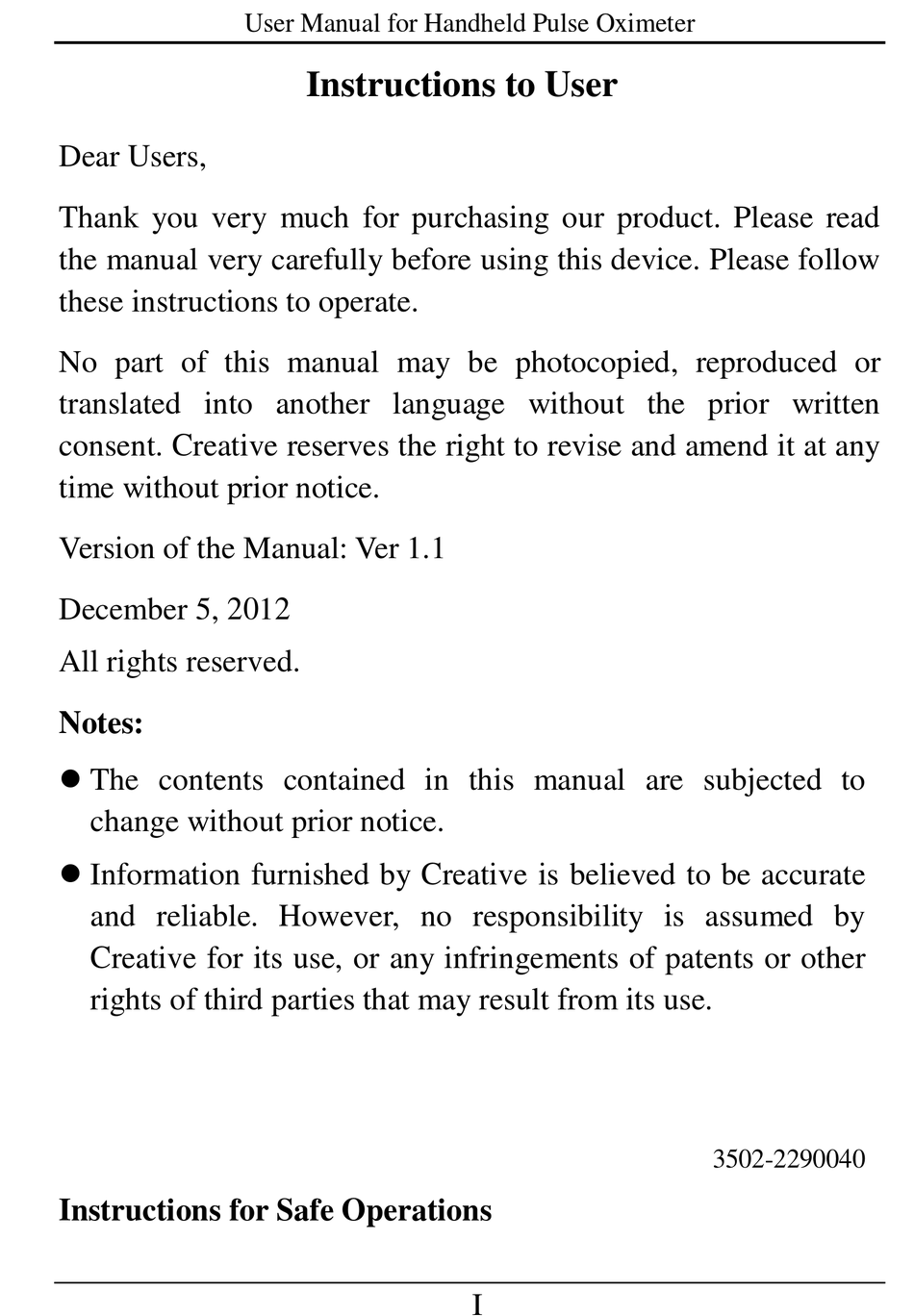

Dear Users,
Thank you very much for purchasing our product. Please read
the manual very carefully before using this device. Please follow
these instructions to operate.
No part of this manual may be photocopied, reproduced or
translated into another language without the prior written
consent. Creative reserves the right to revise and amend it at any
time without prior notice.
Version of the Manual: Ver 1.1
December 5, 2012
All rights reserved.
Notes:
The contents contained in this manual are subjected to
change without prior notice.
Information furnished by Creative is believed to be accurate
and reliable. However, no responsibility is assumed by
Creative for its use, or any infringements of patents or other
rights of third parties that may result from its use.
Instructions for Safe Operations
User Manual for Handheld Pulse Oximeter
Instructions to User
I
3502-2290040
Advertisement
Table of Contents
Related Manuals for Creative PC-66A
Summary of Contents for Creative PC-66A
- Page 1 No part of this manual may be photocopied, reproduced or translated into another language without the prior written consent. Creative reserves the right to revise and amend it at any time without prior notice. Version of the Manual: Ver 1.1 December 5, 2012 All rights reserved.
- Page 2 User Manual for Handheld Pulse Oximeter Check the device before using it to make sure that there is no visible damage that may affect user’s safety and its performance. When there is obvious damage, stop using the device. Necessary service must be performed by qualified service engineers ONLY.
- Page 3 User Manual for Handheld Pulse Oximeter To dispose the device or its accessories, the local law should be followed. Attentions Keep the oximeter away from dust, vibration, corrosive substances, explosive materials, high temperature and moisture. If the oximeter gets wet, please stop operating it. When it is carried from cold environment to warm and humid environment, please do not use it immediately.
-
Page 4: Table Of Contents
User Manual for Handheld Pulse Oximeter Table of Contents 1 Overview ................1 1.1 Appearance ..............1 1.2 Name and Model ............. 2 1.3 Structure ................3 1.4 Features ................3 1.5 Scope of Application ... Hiba! A könyvjelző nem létezik. 1.6 Working Environment ............. -
Page 5: Overview
User Manual for Handheld Pulse Oximeter 1 Overview 1.1 Appearance Data interface Reserved port Display screen Power/Back Navigation key Backlight/Mute Setting/OK probe connector Figure 1 1. Display screen: display SpO and PR values etc. data. 2. / (Navigation key): When on the system setup screen, press it to choose the setting item or adjust parameter values. -
Page 6: Name And Model
”: SpO Probe Connector. Key definitions: Longtime press: press for 2 seconds or longer; Mute mode: except the key-press sound, other sounds (i.e. beat sound and alarm sound) shall be off. 1.2 Name and Model Name: Handheld Pulse Oximeter Model: PC-66A... -
Page 7: Structure
User Manual for Handheld Pulse Oximeter 1.3 Structure It consists of the main unit and SpO probe. 1.4 Features It is light, small in size and easy to carry; Segment LCD display, with LED backlight; Monitor SpO and PR parameters simultaneously, and display pulse intensity bar graph as well;... -
Page 8: Installation Of Battery And Holder
User Manual for Handheld Pulse Oximeter Atmospheric pressure: 70kPa~106kPa 2 Installation of Battery and Holder 1） Open the rear panel with coin or an ordinary flat screwdriver, as shown in Figure 2. Figure 2 2） According to the polarity mark, insert three AA batteries into battery house, as shown in Figure 3. -
Page 9: Spo Probe Connection
User Manual for Handheld Pulse Oximeter 3） Close the battery cover and fasten it. 4） Fixing Holder Figure 4 Fixing Holder 3 SpO Probe Connection Connect the SpO probe to the right panel’s connector labeled “SpO ”. After starting the monitor insert one finger into the probe (index finger, middle finger or ring finger with proper nail length) according to demonstration, as shown in the following figure. - Page 10 User Manual for Handheld Pulse Oximeter Figure 5 Demonstration for using SpO probe (finger clip) Instructions of Operation 1. The finger should be put properly and correctly. 2. Do not shake the finger and keep at ease during using. 3. Do not put wet finger directly into sensor. 4.
-
Page 11: Operation
User Manual for Handheld Pulse Oximeter 4 Operation 4.1 Default Screen Longtime press “ ” key to start the Oximeter, then insert finger into rubber cushions of the probe, the screen will display the default screen, as shown in Figure 6. %SpO Figure 6 Default Screen Screen Description:... - Page 12 User Manual for Handheld Pulse Oximeter “ ”: Sound indication； When the icon becomes “ ”, the oximeter stays in mute mode. Prompt for Data Storage If the memory is full or the total number of the records reaches 256 pieces during measuring, the earliest records will be overwritten and the icon “...
-
Page 13: Indication For No Signal
User Manual for Handheld Pulse Oximeter 4.2 Indication for No Signal If No Signal icon “ ” prompts on screen (as shown in Figure 8), please check whether the probe connects well and whether the finger is in appropriate position. %SpO No signal icon Figure 8 No Signal... - Page 14 User Manual for Handheld Pulse Oximeter or may modify them. Screen Description: Icon “%SpO BPM” is for setting Low alarm limit of and High/Low alarms of PR; Icon “ ” is for setting date and time; Icon “ ”...
- Page 15 User Manual for Handheld Pulse Oximeter %SpO Figure 10A SpO alarm setting Figure 10B PR Low limit setting Figure 10C PR Hi limit setting screen Operation Instructions: Lo”: SpO “%SpO alarm setting; default value: “85%”; Read the following for the detailed setting method: a.
- Page 16 User Manual for Handheld Pulse Oximeter continuously; c. Press “ ” key to confirm the modification. d. Press “”/ “” (Navigation key) circularly, the display screen will be shift among SpO alarm setting screen, PR Low limit setting screen and PR Hi limit setting screen. You can follow the setting steps mentioned above to adjust PR Low/Hi limit;...
- Page 17 User Manual for Handheld Pulse Oximeter Figure 11A Year Setting Figure 11B Month Setting Figure 11C Day Setting Figure 11D Hour Setting Figure 11E Minute Setting Operation Instructions: ” ：Year Setting. 1.“ Read the following for the detailed setting method: a.
- Page 18 User Manual for Handheld Pulse Oximeter b. Press “”/ “” (Navigation key) to adjust year. “”：short time press it to increase the numerical value single time; longtime press it to increase the numerical value continuously; “”： short time press it to reduce the numerical value single time;...
- Page 19 User Manual for Handheld Pulse Oximeter %SpO %SpO Figure 12A Sound On Figure 12B Mute Setting Operation Instructions: Press “”/ “” (Navigation key) to turn the sound on or make the oximeter stay in mute mode. Default setting is “ON”; “ON”: the sound setting is ON, “OFF”: the sound setting is OFF, the oximeter stays in mute mode.
-
Page 20: Low Battery Promption
User Manual for Handheld Pulse Oximeter 4.4 Low Battery Prompt When the battery is too low, if you power up the oximeter, it will display as the figure below to indicate low battery. Please replace the batteries, or the oximeter may not work. Figure 14 4.5 Resume Default Setting When the oximeter is off, press the “... -
Page 21: Technical Specifications
User Manual for Handheld Pulse Oximeter 5 Technical Specifications Display mode：Segment LCD Display B. Power supply requirement: 3 ×LR6 (AA) alkaline battery or Ni-MH rechargeable batteries; Supply voltage: 4.5V Operating current: <50mA C. SpO Parameter Specifications Transducer: dual-wavelength LED sensor Measurement wavelength: Red light: 660 nm, Infrared light: 905 nm. - Page 22 User Manual for Handheld Pulse Oximeter Range: 0~20% Data Record The record interval is 2 seconds, that is the oximeter records a group of SpO value and PR value every 2 seconds. The length of a record is limited to 30 seconds at least and truncated 2 hours at most.
-
Page 23: Accessories
User Manual for Handheld Pulse Oximeter liquids: Ordinary equipment without protection against ingress of water. Electro-Magnetic Compatibility: Group I, Class B 6 Accessories 1. A probe 2. A holder 3. Battery（AA）× 3 4. A User Manual 5. A Quality Certificate 6. -
Page 24: Repair And Maintenance
User Manual for Handheld Pulse Oximeter 7 Repair and Maintenance 7.1 Maintenance The life of this device is 5 years. In order to ensure its long service life, please pay attention to the maintenance. A. Please change the batteries when the low-voltage indicator appears. -
Page 25: Troubleshooting
User Manual for Handheld Pulse Oximeter 8 Troubleshooting Trouble Possible Reason Solution 1. The finger is not The SpO placed inside 1. Place the finger and Pulse enough. properly and try again. Rate 2. The finger is 2. Let the patient keep display shaking or the calm. -
Page 26: Appendix
User Manual for Handheld Pulse Oximeter Appendix Key of Symbols Description Symbol %SpO Pulse oxygen saturation Pulse rate (Unit: beats per minute) Low battery voltage Symbols Memory full No signal on the Pulse strength bar-graph screen Date and time setup Conneting to PC Sound icon Mute icon... -
Page 27: Common Knowledge For Spo Measurement
User Manual for Handheld Pulse Oximeter Common Knowledge for SpO Measurement 1 Meaning of SpO is the saturation percentage of oxygen in the blood, so called O concentration in the blood; it is defined by the percentage of oxyhemoglobin (HbO ) in the total hemoglobin of the arterial blood. - Page 28 User Manual for Handheld Pulse Oximeter contrast, hemoximeters report fractional oxygen saturation – a percentage of all measured hemoglobin, including dysfunctional hemoglobin, such as carboxyhemoglobin or metahemoglobin. Clinical application of pulse oximeters: SpO is an important physiological parameter to reflect the respiration and ventilation function, so SpO monitoring used in clinical becomes more popularly, such as monitoring the...
- Page 29 User Manual for Handheld Pulse Oximeter Vascular dyes or external used color-up product such as nail enamel or color skin care Excessive patient movement Placement of a sensor on an extremity with a blood pressure cuff, arterial catheter, or intravascular line ...
- Page 30 User Manual for Handheld Pulse Oximeter...
