Summary of Contents for Amart Furniture SUMMIT 1900

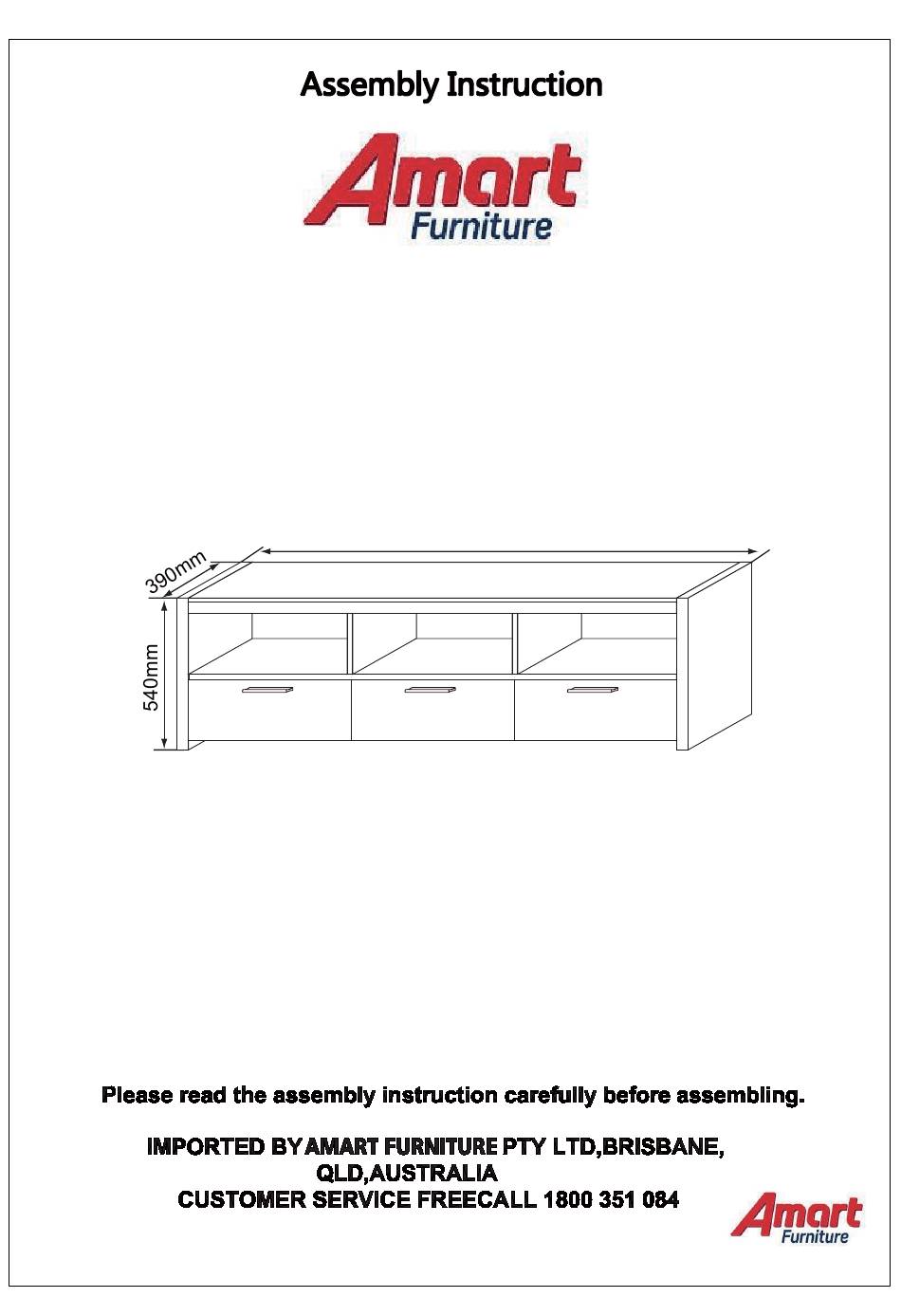

- Page 1 Item Code: 51835 SUMMIT 1900 ENTERTAINMENT UNIT 1900mm Item Code: 51835 2017-6-10 1-11...
- Page 2 3000MM WARNING Serious or fatal injuries may occur from furniture toppling over. product Place the heaviest items in lowest drawers the product to become unbalanced necessarily eliminate the risk of furniture toppling over. 2-11 Item Code: 51835 2017-6-10...
- Page 3 3-11 Item Code: 51835 2017-6-10...
- Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
- Page 5 (MM) 390x535x30 390x535x30 369x225x15 386x195x15 388x1840x15 388x1840x30 370x1840x15 235x1880x2.7 235x1880x2.7 390x1840x8 140x548x15 140x330x15 140x330x15 5-11 Item Code: 51835 2017-6-10...
- Page 6 321x555x2.7 60x314x15 233x608x15 16-1 16-2 233x608x15 233x608x15 16-3 Item Code: 51835 6-11 2017-6-10...
- Page 7 3xCL 3xCR 18xN STEP 1A:Install runner (CL) to panel (1)&(3) with screw (N) . B:Fix foot nail(F) to panel (1)&(3). CL/CR CL/CR ! Please note, for panel with two runners (panel (2)),the screws for runner locate differently on different sides, please follow the instruction.
- Page 8 STEP 3:Attach panel (2) to panel (5), with cam lock parts (C)&(D) . STEP 4A:Fix cam pin (I) to panel (6). TURN OVER B:Attach panel (6) to the body,using dowel (B) and cam lock parts (D)&(I). 8-11 Item Code: 51835 2017-6-10...
- Page 9 STEP 5A:Attach adjustable legs (E) to panel (7) with screws (L) . TURN OVER B:Attach panel (7) to the body with screw (A) and dowel (O). 12xB 12xD 12xI STEP 6:Attach panel (1)&(3) to the body with dowel (B) and cam lock parts (D)&(I). 9-11 Item Code: 51835 2017-6-10...
- Page 10 16xJ STEP 7:Join back panels (8)&(9) with filler (M), and attach back panels to the body with screw (J). 3xDL 3xDR 18xN 12xA 18xC 18xD STEP 8:Install drawers as shown in diagram. 1A:Fix cam lock (C) and handle(K) to 2:Join side panels (12)(13) and back drawer front (16) panel(11) with screws (A).
- Page 11 10xG STEP 9A:Attach sticker (G) to table top ,in order to secure the glass. Please ensure glass is lined up correctly when placing on top of unit. 16-1 16-2 16-3 B:Assemble drawers to the body. Please pay attention to identify 16-1,16-2 and 16-3. CAUTION: This Entertainment unit has a 45kg recommended weight limit.
- Page 12 NOTE Item Code: 51835 2017-6-10...
- Page 13 Furniture top Wallboard Bracket Item Code: 51835 2017-6-10...
- Page 14 SAFETY BRACKETS INSTRUCTIONS 1.Attach a bracket to the wallboard with the long screws provided. 2.Attach a bracket to the furniture frame under the top with the short screws provided. 3.Move the furniture into its final position. Thread a strap through the bracket as shown in the illustration, tighten strap until snug.
-
Page 15: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
