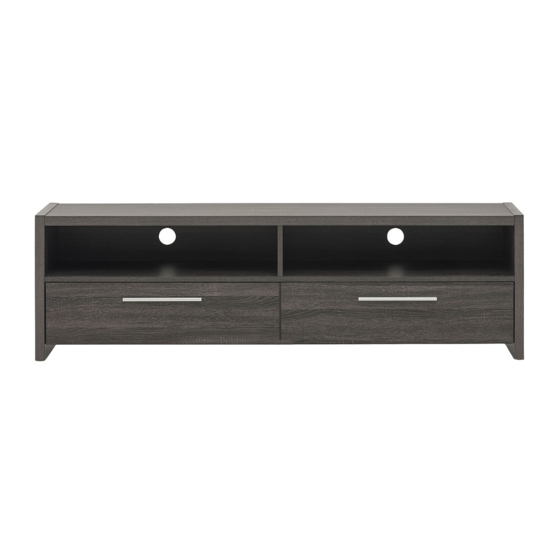

- Page 1 Item Code: 51834 SUMMIT 1500 ENTERTAINMENT UNIT 1500mm Item Code: 51834 2017-6-10 1-10...
- Page 2 3000MM WARNING Serious or fatal injuries may occur from furniture toppling over. product Place the heaviest items in lowest drawers the product to become unbalanced necessarily eliminate the risk of furniture toppling over. 2-10 Item Code: 51834 2017-6-10...
- Page 3 3-10 Item Code: 51834 2017-6-10...
- Page 4 13xC 23xD cam pin white foot nail round head screw dowel M7x53mm M8x30mm M3x16mm M4x30mm M3.5x14mm 10xI 19xJ mushroom head runner screw screw M3.5x14mm M4x12mm 24xN 2xCL runner runner runner 2xCR 2xDL 2xDR (MM) 390x445x30 4-10 Item Code: 51834 2017-6-10...
- Page 5 369x180x15 390x445x30 386x156x15 388x1440x15 388x1440x30 370x1440x15 385x1480x2.7 60x314x15 189x713x15 10-1 189x713x15 10-2 110x657x15 110x330x15 110x330x15 321x664x2.7 5-10 Item Code: 51834 2017-6-10...
- Page 6 Please note, for panel with two runners (panel (2)),the screws for runner locate differently on different sides, please follow the instruction. STEP 2:Attach panel (4) to panel (5), using screw (A) and dowel (B) . 6-10 Item Code: 51834 2017-6-10...
- Page 7 STEP 3:Attach panel (2) to panel (5), with cam lock parts (C)&(D) . STEP 4A:Fix cam pin (I) to panel (6). B: Attach panel (6) to the body,using dowel (B) and cam lock parts (D)&(I). 7-10 Item Code: 51834 2017-6-10...
- Page 8 STEP 5A:Attach adjustable legs (E) to panel (7) with screws (L) . TURN OVER B:Attach panel (7) to the body with screw (A) and dowel (G). 12xB 12xD STEP 6:Attach panel (1)&(3) to the body with dowel (B) and cam lock parts (D)&(I). 8-10 Item Code: 51834 2017-6-10...
- Page 9 4:Install runner(DL) to the bottom of drawer of panel(11)(12)and (13). with screws(N). 3B: Attach supporter (9) to back panel (11) with cam lock (C). 3C: Attach drawer front(10) to the drawer with cam lock (D). 9-10 Item Code: 51834 2017-6-10...
- Page 10 TV on the unit, please ensure the centrally located support legs are correctly adjusted to sit firmly on the floor in order to take the weight of your TV. Once this is done, your TV can be carefully placed on the unit. 10-10 Item Code: 51834 2017-6-10...
- Page 11 NOTE Item Code: 51834 2017-6-10...
- Page 12 Furniture top Wallboard Bracket Item Code: 51834 2017-6-10...
- Page 13 Do not over tighten. 4.Make sure the bracket is firmly attached to the wallboard and furniture, and the strap is snug. Furniture top Wallboard Bracket Item Code: 51834 2017-6-10...
-
Page 14: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
