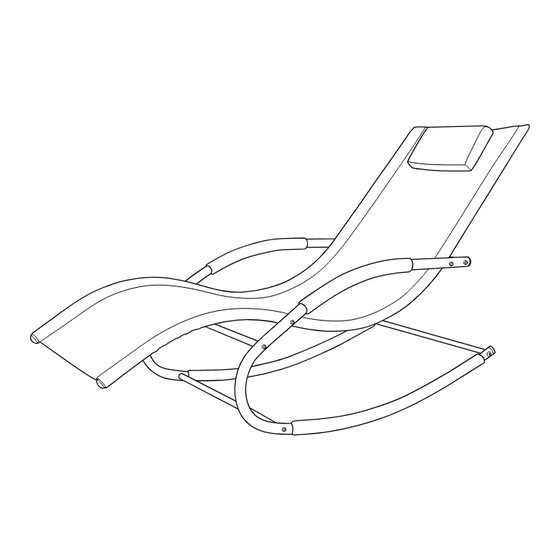

RELAX A LOUNGER
ASSEMBLY INSTRUCTIONS
WARNING
This product has been designed for one (1) average adult. To prevent injury and damage to this unit, PROHIBIT jumping on it.
This product is designed for home use and not intended for commercial use.
Recommended # of people needed for handling: 2 (however it is always better to have an extra hand.)
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
WW - 12 / 19 / 2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the RELAX A LOUNGER and is the answer not in the manual?

Questions and answers

Summary of Contents for Lifestyle Solutions RELAX A LOUNGER

  • Page 1 RELAX A LOUNGER ASSEMBLY INSTRUCTIONS WARNING This product has been designed for one (1) average adult. To prevent injury and damage to this unit, PROHIBIT jumping on it. This product is designed for home use and not intended for commercial use.
  • Page 2 PARTS Part 1 Part 2 Part 3 QTY:2 QTY:2 QTY:2 Part 4 Part 5 Part 6 QTY:4 QTY : 2 QTY:1 Part 7 QTY:1 2/12...
  • Page 3 HARDWARE Hex Key Bolt Bolt Bolt Washer M6 X 60mm M6 X 45mm M6 X 20mm QTY : 4 PCS QTY : 1 PC QTY : 4 PCS QTY : 8 PCS QTY : 4 PCS 3/12...
  • Page 4 Step 1 : Headrest Footrest Push-in Push-in 4/12...
  • Page 5 Step 2 : Headrest Footrest 5/12...
  • Page 6 Step 3 : Slot-in Headrest Footrest Slot-in 6/12...
  • Page 7 Step 4 : × 1 × 8 Do not fasten the bolts! 7/12...
  • Page 8 Step 5 : Do not fasten the bolts! × 1 × 4 × 4 Headrest Footrest 8/12...
  • Page 9 Step 6 : Do not fasten the bolts! × 1 × 4 9/12...
  • Page 10 Step 7 : × 1 Fasten all bolts! 10/12...
  • Page 11 Step 8 : 11/12...
  • Page 12: Installation Complete

    INSTALLATION COMPLETE : Need assistance? Please call : 866-626-7826 For prompt, reliable service; please have your assembly manual ready. 12/12...
