Bed Assembly Instructions

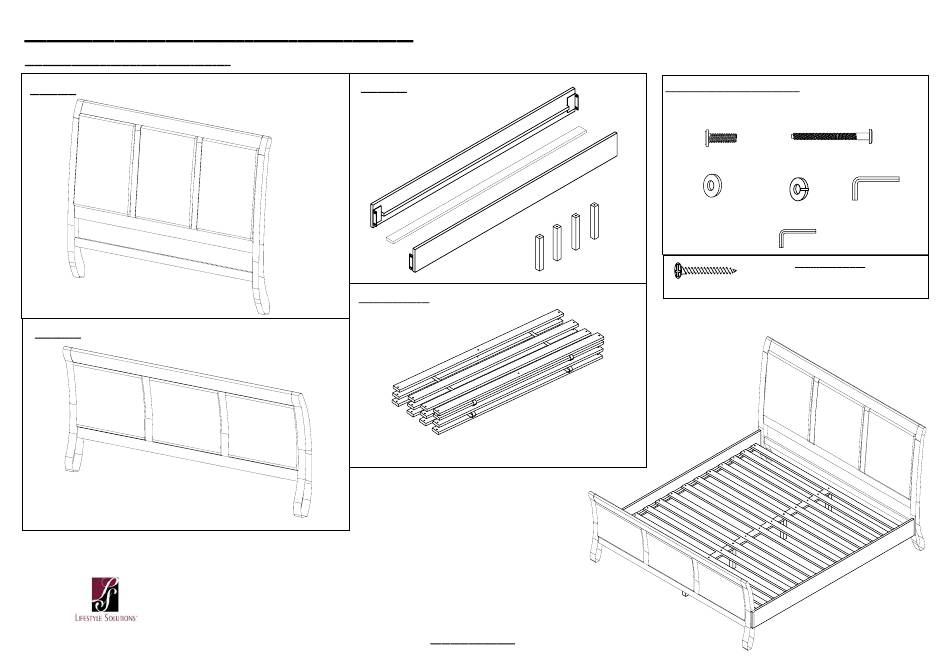

Parts And Fittings Packing Detail
Box # 1
Box # 2
The Fusion Of Function And Comfort With Style
Box # 3
2 pcs. Bed side rails
1 pc. Head Board
1 pcs. Slat Support
4 pcs Support Leg
Parts (Slats Box)
- 13 pcs Slats
1 pc. Foot Board
PROVIDENCE BED
Page 1 of 2
Hardware Pack In Box #1
Bolt
Bolts M6 x 70mm - 4pcs.
M8 x 25mm - 8 pcs
Spring Washer
5mm Allen Key 1 pc.
Washer - 8 pcs.
- 8 pcs
4mm Allen Key 1 pc.
Slat Hardware
32mm Screw - 26pcs.
(Wrapped in separate plastic bag)
A complete assembled view of
a Conventional Bed
