EASTERN KING/ CALIFIRNIA KING BEi
ASSEMBLY INSTRUCTION

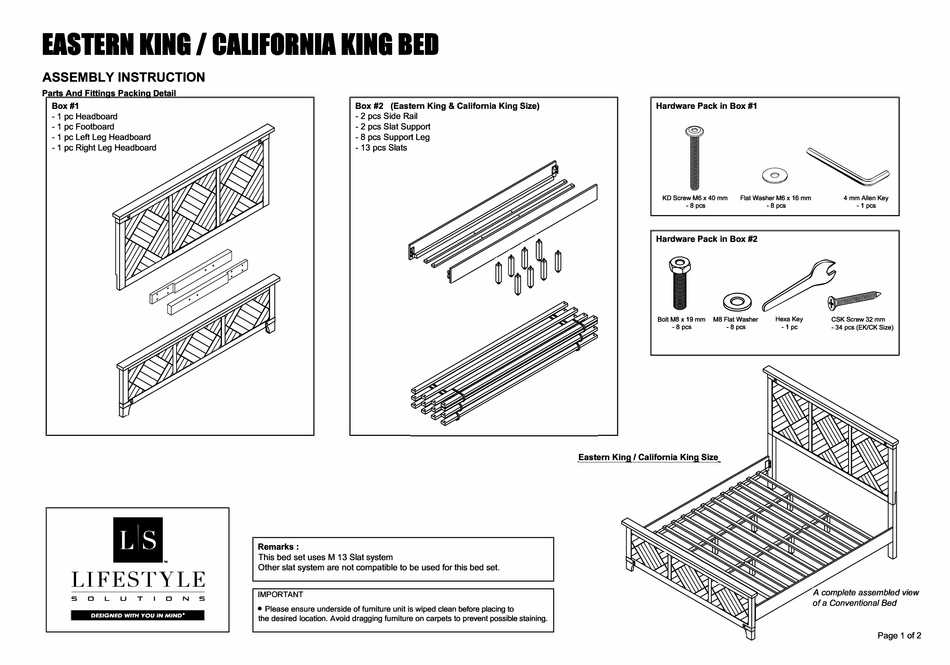

Parts And Fittings Packing Detail
Box#1
- 1 pc Headboard
- 1 pc Footboard
- 1 pc Left Leg Headboard
- 1 pc Right Leg Headboard
■.
LIFESTYLE
S
O
L
U
T
I
O
N
S
DESIGNED WITH YOU IN MIND
"'
Box #2 (Eastern King & California King Size)
- 2 pcs Side Rail
- 2 pcs Slat Support
- 8 pcs Support Leg
- 13 pcs Slats
Remarks:
This bed set uses M 13 Slat system
Other slat system are not compatible to be used for this bed set.
IMPORTANT
• Please ensure underside of furniture unit is wiped clean before placing to
the desired location. Avoid dragging furniture on carpets to prevent possible staining.
Hardware Pack in Box #1
KD Screw M6 x 40 mm
m m m \\ m
Hardware Pack in Box #2
I
Bolt M8 x 19 mm
-8pcs
Eastern King / California King Size
'#'
T
0
Flat Washer M6 x 16 mm
4 mm Allen Key
-8pcs
-8pcs
-1 pcs
@
��
Hexa Key
M8 Flat Washer
CSK Screw 32 mm
-8pcs
-1 pc
-34 pcs (EK/CK Size)
A complete assembled view
of a Conventional Bed
Page 1 of2
