Summary of Contents for SODECA CAS

  • Page 1 CAS – CAS/ATEX CAS-S Dokumentacja techniczno - ruchowa User manual Code: 1143691 www.sodeca.com Doc. Num: 0000006331 (2016-12-05)
  • Page 2 Rys. 2 Rys. 1 CAS-S Rys. 2 Rys. 3 Rys. 4 Napięcie Połączenie znamionowe Z asilanie silnika 1/2 D ≥ D 230 / 400 Trójkąt 400 / 690 230 / 400 Gwiazda...
  • Page 3 Rys. 5 (Modele 50 Hz ) Model ędkość (r/min) 230V 400V 690V (kW) (m3/h) CAS-S CAS-S CAS CAS-S 242-2T-0,33 2710 1,29 0,75 0,25 2710 1,92 1,11 0,37 CAS CAS-S 242-2T-0,5 CAS CAS-S 248-2T-0,75 2760 2,57 1,49 0,55 43,5 46,5 CAS CAS-S 248-2T-1...
  • Page 4 Rys. 6 Model ędkość (r/min) 230V 400V 690V (kW) (m3/h) CAS/ATEX-242-2T-0,33 2740 1,73 1,00 0,25 30,0 CAS/ATEX-242-2T-0,5 2770 2,08 1,20 0,37 31,0 CAS/ATEX-248-2T-0,75 2710 2,94 1,70 0,55 43,5 CAS/ATEX-248-2T-1 2820 3,46 2,00 0,75 45,0 CAS/ATEX-248-2T-1,5 2850 4,50 2,60 1,10 46,5...
  • Page 5 Rys. 7 Modele (60 Hz) Model ędkość (r/min) 220 – 277V 380 – 480V (kW) (m3/h) CAS-S CAS-S 3396 1,39 0,25 242-2T-0,33 CAS-S 242-2T-0,5 3288 1,92 1,11 0,37 CAS-S 3360 2,42 0,55 43,5 46,5 248-2T-0,75 CAS-S 248-2T-1 3426 1,73 0,75...
  • Page 6: Opis Produktu

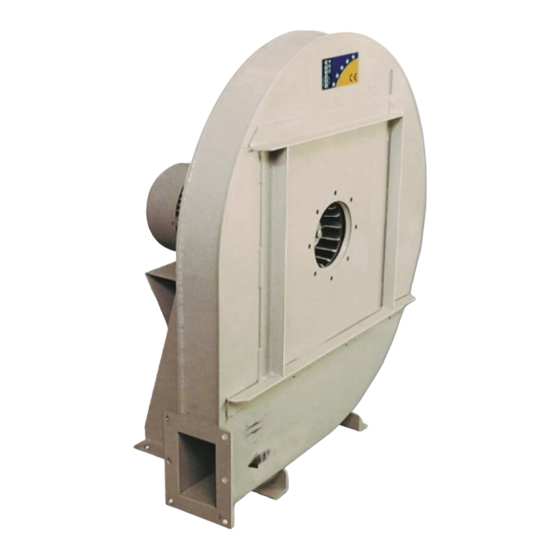

    2. Opis produktu CAS: Promieniowy wentylator wysokociśnieniowy, w obudowie i z wirnikiem z blachy stalowej, z pojedyńczym wlotem. CAS/ATEX: Promieniowy wentylator wysokociśnieniowy, z pojedyńczym wlotem, z certyfikatem ATEX. CAS-S: Promieniowy wentylator wysokociśnieniowy, z pojedyńczym wlotem, z montowanym na włocie tłumikiem hałasu.
  • Page 7 6. Montaż ż ż i podł ł ł czenie ą ą ą Wentylatory mogą być instalowane tylko przez wykwalifikowanego technika, który posiada wiedzę w zakresie montażu, przeglądów technicznych i konserwacji tego typu urządzeń oraz korzysta z odpowiednich narzędzi. Mechanic zne •...
  • Page 8: Product Definition

    1. Start All fans produced by SODECA, hereinafter the manufacturer, and the full line of accessories, have been manufactured in accordance with the strictest standards in relation to quality assurance, systems and production processes. Their project, testing, manufacture and control structure has been configured in line with EU standards and regulations, especially in reference to current safety standards.
  • Page 9: Maintenance

    6. Installation and Assembly This equipment may only be installed by a qualified technician who is familiar with the installation, monitoring and maintenance of this type of equipment, and uses suitable tools. Mechanical • To ensure safe operation, the equipment must be firmly fixed. •...
  • Page 10 Crta. de Berga , Km. 0,7 08580-SANT QUIRZE DE BESORA (Barcelona – Spain) Tel. +34 93 8529111 Fax.+34 93 8529042 comercial@sodeca.com www.sodeca.com SODECA W POLSCE nkontakt tel.: +48 58 661 35 28 +48 58 667 81 92 tel.kom.: +48 530 753 690 e-mail: sodeca@scrol.pl...
