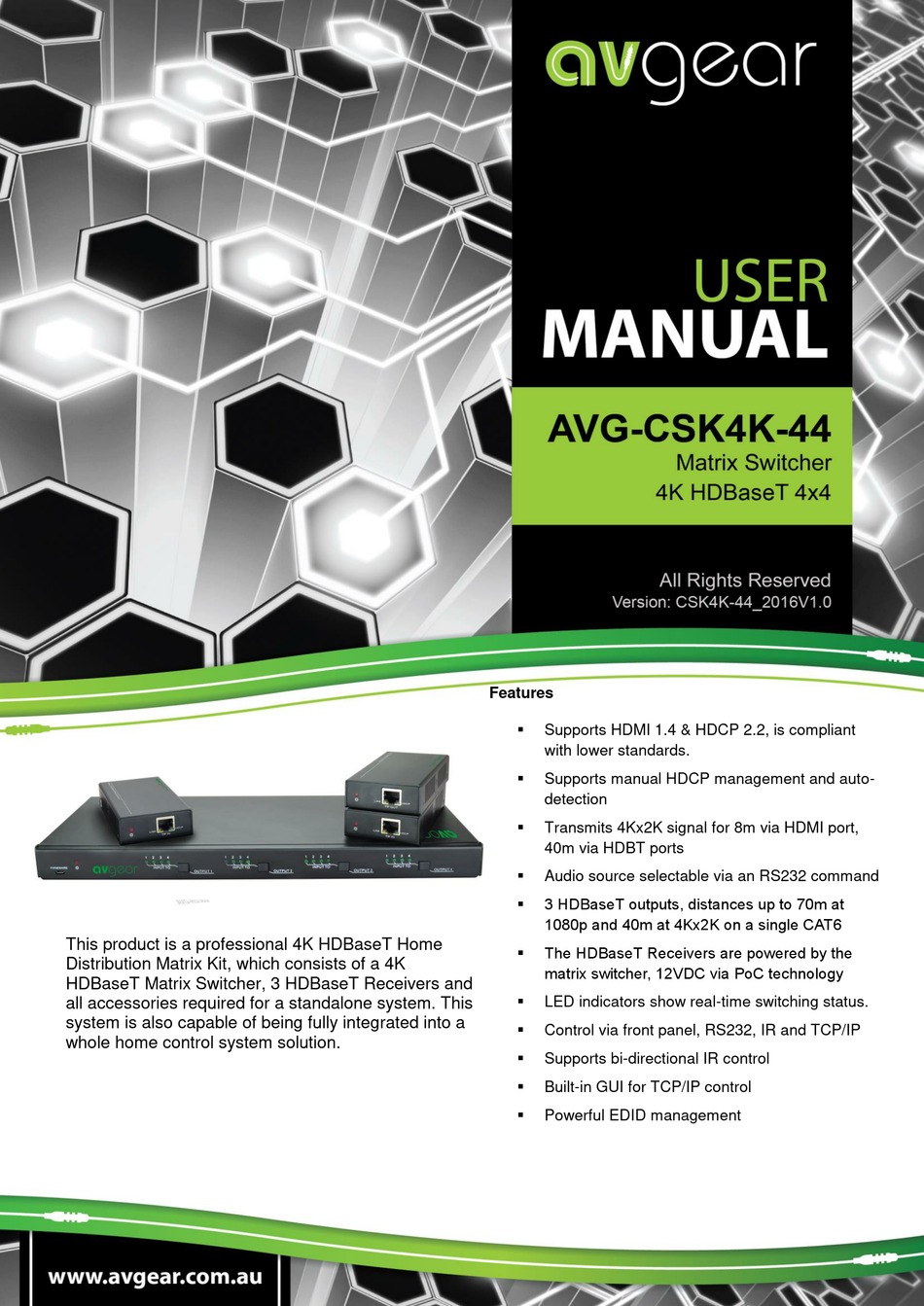

AVG-CSK4K-44

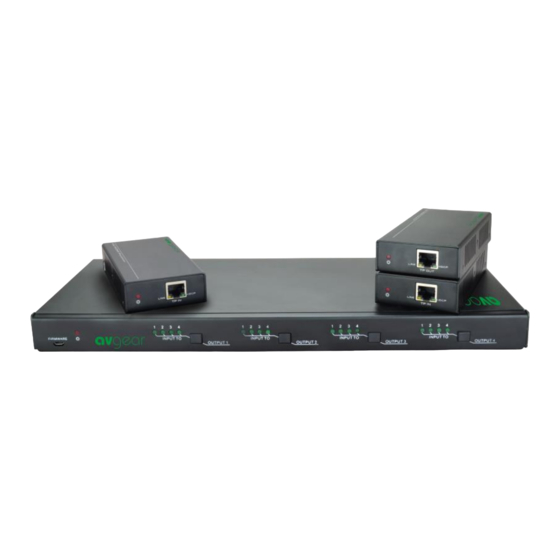

This product is a professional 4K HDBaseT Home
Distribution Matrix Kit, which consists of a 4K
HDBaseT Matrix Switcher, 3 HDBaseT Receivers and
all accessories required for a standalone system. This
system is also capable of being fully integrated into a
whole home control system solution.
Features
Supports HDMI 1.4 & HDCP 2.2, is compliant
with lower standards.
Supports manual HDCP management and auto-
detection
Transmits 4Kx2K signal for 8m via HDMI port,
40m via HDBT ports
Audio source selectable via an RS232 command
3 HDBaseT outputs, distances up to 70m at
1080p and 40m at 4Kx2K on a single CAT6
The HDBaseT Receivers are powered by the
matrix switcher, 12VDC via PoC technology
LED indicators show real-time switching status.
Control via front panel, RS232, IR and TCP/IP
Supports bi-directional IR control
Built-in GUI for TCP/IP control
Powerful EDID management

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVG-CSK4K-44 and is the answer not in the manual?

Questions and answers

Related Manuals for AVGear AVG-CSK4K-44

Summary of Contents for AVGear AVG-CSK4K-44

  • Page 1 AVG-CSK4K-44 Features  Supports HDMI 1.4 & HDCP 2.2, is compliant with lower standards.  Supports manual HDCP management and auto- detection  Transmits 4Kx2K signal for 8m via HDMI port, 40m via HDBT ports  Audio source selectable via an RS232 command 3 HDBaseT outputs, distances up to 70m at ...
  • Page 2 AVG-CSK4K-44 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operation instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as at July 2017. Any changes of functions and operational parameters will be updated in future manual versions.
  • Page 3 AVG-CSK4K-44 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.

  • Page 4: Table Of Contents

    Introduction ......................1 Introduction to the AVG-CSK4K-44 .............. 1.1 Features ....................... 1.2 What’s in the Box ..……………………………………………………………………2 Product Appearance of the AVG-CSK4K-44 ............3 4K HDBaseT Matrix Switcher ............... 3.1 HDBaseT Receiver ..................3.2 System Connection ....................4 System Applications ..................4.1 Connection Diagram ..................

  • Page 5: Introduction

    AVG-CSK4K-44 1. Introduction 1.1. Introduction to the AVG-CSK4K-44 This AVG-CSK4K-44 is a professional 4K HDBaseT Home Distribution Matrix Kit, which consists of a 4K HDBaseT Matrix Switcher, 3 HDBaseT Receivers and it’s accessories. The 4K HDBaseT Matrix Switcher consists of 4 HDMI, 3 IR IN, 1 IR CONTROL, 4 IR OUT, 3 HDBaseT OUT, 1 HDMI OUT, 1 SPDIF OUT, 1 L&R RCA OUT, TCP/IP and...

  • Page 6: What's In The Box

    AVG-CSK4K-44 2. What’s in the Box  1 x 4K HDBaseT Matrix Switcher  3 x HDBaseT Receivers  1 x Power Adapter (DC 24V 2.71A)  1 x Power Cord  4 x IR Emitters  3 x IR Receivers ...

  • Page 7: Product Appearance Of The Avg-Csk4K-44

    AVG-CSK4K-44 3. Product Appearance of the AVG-CSK4K-44 3.1 4K HDBaseT Matrix Switcher 1. Front Panel ① Name Description ② FIRMWARE Micro USB port for updating firmware  Power Indicator OFF: No power; ③  RED: DC power present or Standby Mode...

  • Page 8: Hdbaset Receiver

    AVG-CSK4K-44 Receiver. There are 4 IR OUTPUT sockets marked on the IR matrix  HDBaseT: The HDBT RJ45 outputs deliver HD video, Audio and PoC to the HDBaseT Receiver up to 70m ④  HDMI: Connect an HDMI cable from the Matrix...
  • Page 9 AVG-CSK4K-44 2. Rear Panel Name Description  OFF: No power; Power ①  RED: DC power present (PoC). Indicator The RJ45 socket has two LED status indicators. Plug in the Pre- installed CAT cable in to the HDBT RJ45 socket ...

  • Page 10: System Connection

    AVG-CSK4K-44 4. System Connection 4.1 System Applications The new 4K Home Distribution Matrix Kit is designed for the residential market delivering HD Video, Audio to 4 zones with total control and simplicity. Usage Precautions: 1) The 4K Home Distribution kit should be installed in a clean and dust free environment.

  • Page 11: Connection With Hdbaset Receiver

    AVG-CSK4K-44 7) Plug the IR Receivers 3.5mm jack into the IR IN sockets on the HDBaseT Receivers and plug in the IR Emitters to the IR OUT sockets (1~4) on the Matrix Switcher to make up the IR Matrix 8) Plug the phoenix connector in to the RS232 socket on the matrix, this will enable...

  • Page 12: System Operations

    AVG-CSK4K-44 5. System Operations 5.1 IR Control 5.1.1 IR Remote Description Connect an IR receiver to the IR CONTROL port of the Matrix Switcher, users can control the matrix through the included IR remotes. Here is a brief introduction to the IR remote.

  • Page 13: Switching I/O Connections

    AVG-CSK4K-44 5.1.2 Using the IR Remote 5.1.2.1 Switching I/O connection 1. To switch one input to an output: Example: Input 1 to Output 3 →Press INPUTS 1 + OUTPUTS 3 + ENTER NOTE: Default status, on first boot up this matrix assigns the IR outputs to the corresponding HDMI input, meaning, IR out 1 is directly associated to HDMI input 1 and so on.

  • Page 14: Clear Operation

    AVG-CSK4K-44 2. EDID invoking: There are five types of embedded EDID data. The chart below illustrates the detailed information of the embedded EDID data: No. EDID Data 1080P 2D 2CH 1080P 3D 2CH 1080P 2D Multichannel 1080P 3D Multichannel 3840x2160 2D（30Hz）...

  • Page 15: Controlling A Far-End Device From The Matrix

    AVG-CSK4K-44 5.1.4 Controlling a Far-end Device from the Matrix location Connect an IR receiver to the IR IN on the Matrix Switcher. Use the IR Remote of the far-end device to control the device locally. Connect an IR receiver with IR carrier to the IR IN port of the Matrix Switcher, users can control a far-end output display via its IR remote locally.

  • Page 16: Controlling A Local Device Remotely

    AVG-CSK4K-44 Controlling a Local Device remotely Note: Send command “%0901.” to enter infrared carrier enforcing mode if the IR Receiver connected to IR IN of the receiver does not have an IR carrier.  Multiple to Multiple: (IR Matrix) The 4 “IR OUT” ports and the 3 “IR IN” ports on the far-end receivers make up a...

  • Page 17: Rs232 Control

    AVG-CSK4K-44 IR Matrix The IR signal is sent by an IR remote, then it is input to the HDBaseT receiver, then to the corresponding zone of the matrix through the twisted pair, finally it is transferred to the IR OUT port and received by the appropriate source device.

  • Page 18: Installation/Removal Of Rs232 Control Software

    AVG-CSK4K-44 5.2.2 Installation/Removal of the RS232 Control Software Installation Copy the control software file to the computer connected with the  Matrix Switcher. Removal Delete all the control software files in the corresponding file path.  Basic Settings Firstly, connect the Matrix Switcher with an input device and an output device. Then, connect it with a computer which has installed RS232 control software.

  • Page 19: Rs232 Communication Commands

    AVG-CSK4K-44 5.2.4 RS232 Communication Commands Note: 1) Please disconnect all twisted pairs before sending command EDIDUpgrade[X]. 2) In the above commands, “[”and “]” are symbols for easy reading and do not need to be typed into the actual operation command.
  • Page 20 AVG-CSK4K-44 Command Function Feedback Example AV: 01->01 … … Query the input channel to each output channel AV: 04->04 Status. one by one. IR: 01->01 … … IR: 04->04 Save the present operation to the preset Save[Y]. Save To FY (Y=0-9) command [Y], range is from 0 to 9.
  • Page 21 AVG-CSK4K-44 Command Function Feedback Example [y]=1~5, correspond to the 5 embedded EDID data separately Upgrade one of the 5 embedded EDID data, x is the serial number for the EDID data: 1. 1080P 2D 2CH 2. 1080P 3D 2CH 3. 1080P 2D Multichannel Please send the EDID UpgradeIntEDID[x].

  • Page 22: Tcp/Ip Control

    AVG-CSK4K-44 Command Function Feedback Example Out 2 1920x1080 Out 3 1920x1080 Out 4 1920x1080 Check the status of digital audio for output 1 2 3 4 %9977. channels. Audio Y Y Y Y Check the HDCP compliance status of the In 01 02 03 04 %9978.
  • Page 23 AVG-CSK4K-44 Same network subnet as the switcher  Controlled by PC(s) in LAN Connect the Matrix Switcher, a router and several PCs to setup a LAN (as shown in the following figure). Set the network subnet of the Matrix Switcher to the same as the router’s, then PCs within the LAN are able to control the Matrix Switcher.
  • Page 24 AVG-CSK4K-44 Step5. Connect the Matrix Switcher and PC(s) to the router. PC(s) within the LAN are then able to control the Matrix Switcher asynchronously. The PC’s are now able to control the device via GUI. 5.3.2 GUI for TCP/IP control The 4K Home Distribution Matrix Kit comes with a built-in GUI for convenient TCP/IP control.
  • Page 25 AVG-CSK4K-44 Users: Display or modify credential settings, front panel lock, and GUI version. If modified, press Save to store the settings, or press Cancel to leave unchanged. Interface: Set title bar label and button labels, press Save to save the settings Configuration: Set HDCP Compliance status for every input, and manage EDID.

  • Page 26: Gui Update

    AVG-CSK4K-44 Network: Query and configure network settings including MAC address, IP address, subnet mask, and Gateway Note: Log in as user to access the main interface. 5.3.3 GUI Update The GUI for the 4K Home Distribution Matrix Kit supports online updates at .

  • Page 27: Firmware Update Through The Usb Port

    AVG-CSK4K-44 Here is the main configuration interface of the Webserver: Figure 5- 19 TCP/IP Configuration 5.3.5 GUI Update The GUI for the 4x4 HDMI Matrix Switcher supports online updates via http://192.168.0.178:100. Type the username and password (the same as the GUI log-in settings, a modified password will be available only after rebooting) to log in to the configuration interface.
  • Page 28 AVG-CSK4K-44 Step4. Click Connect USB. Click Open to load the upgrade file, then click Updata to start the Step5. firmware upgrade. Note: To ensure communication, the COM number of the PC should be 1~9.

  • Page 29: Specifications

    AVG-CSK4K-44 6. Specifications 6.1 4K HDBaseT Matrix Switcher Video Input Input 4 HDMI Input Connector Female HDMI Input Level T.M.D.S. 2.9V~3.3V Input Impedance 100Ω (Differential) Supports HDMI 1.4 & HDCP 2.2 and is backwards compatible with all previous HDMI Standard standards.

  • Page 30: Hdbaset Receiver

    AVG-CSK4K-44 Control 4 IR OUT 3 IR IN Control Ports 1 IR EYE 1 TCP/IP (female RJ45) 1 RS232 (3-pin pluggable terminal block) Panel Control Front panel buttons RS232 Control 3-pin pluggable terminal block Extended IR receiver TCP/IP Control Web-based GUI...

  • Page 31: Panel Drawing

    AVG-CSK4K-44 7. Panel Drawing 7.1 4K HDBaseT Matrix Switcher 7.2 HDBaseT Receiver...

  • Page 32: Troubleshooting & Maintenance

    AVG-CSK4K-44 8. Troubleshooting & Maintenance Problems Causes Solutions Check whether the cables are The connected cables may not be connected correctly and in working connected correctly or faulty Colour loss or no video signal output condition Failed or loose connection...
