AVG-CS-HDMI44
Thanks very much for purchasing this 4K HDMI
4x4 Matrix! It is a four input by four output HDMI
matrix switcher with HDCP 2.2 and 4K@60Hz
4:2:0 video support and it can be controlled via
front panel buttons, IR remote and RS232
commands.
Features
Supports HDMI resolutions up to
4K@60Hz 4:2:0, including 1080p 3D
video.
Fully compliant with the HDMI 1.4 and
HDCP 2.2 specifications.
Smart EDID management to match
the connected displays.
Supports front panel buttons, IR
remote and RS232 control.
Advertisement
Table of Contents
Related Manuals for AVGear AVG-CS-HDMI44
Summary of Contents for AVGear AVG-CS-HDMI44

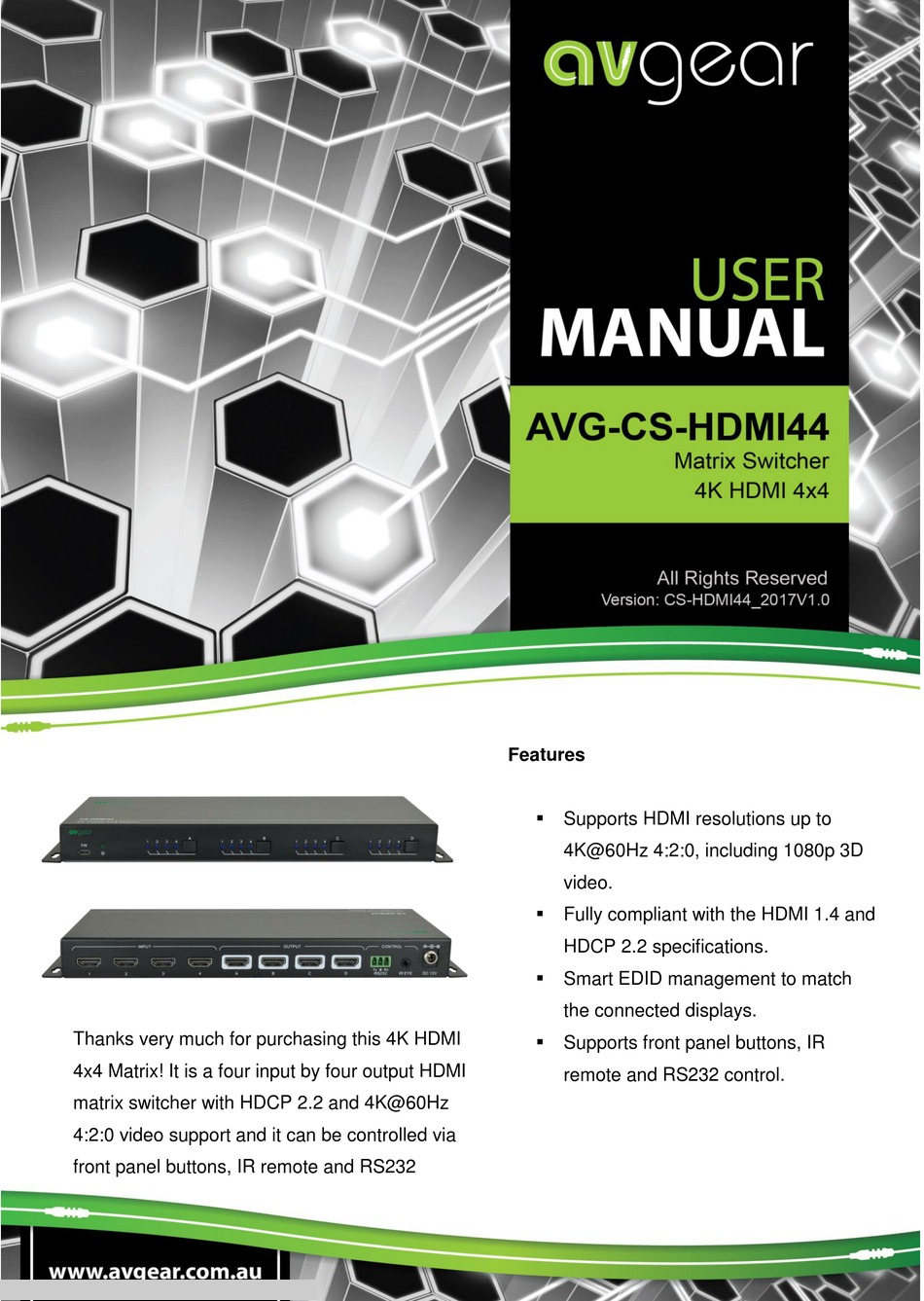

- Page 1 AVG-CS-HDMI44 Features Supports HDMI resolutions up to 4K@60Hz 4:2:0, including 1080p 3D video. Fully compliant with the HDMI 1.4 and HDCP 2.2 specifications. Smart EDID management to match the connected displays. Thanks very much for purchasing this 4K HDMI ...
- Page 2 AVG-CS-HDMI44 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operational instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as at November 2017. Any changes of functions and operational parameters will be updated in future manual versions.
- Page 3 AVG-CS-HDMI44 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures during installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.
-
Page 4: Table Of Contents
Introduction ......................1 Introduction to the AVG-CS-HDMI44 ............1.1 Features ....................... 1.2 What’s in the Box ..……………………………………………………………………2 Product Appearance of the AVG-CS-HDMI44 ............3 Front Panel ....................3.1 Rear Panel ....................3.2 System Connection ....................4 Usage Precautions ..................4.1 Connection Diagram .................. -
Page 5: Introduction
Smart EDID management to match the connected displays. Supports front panel buttons, IR remote and RS232 control. 2. What’s in the Box 1 x AVG-CS-HDMI44 4K HDMI 4x4 Matrix 4 x Round Plastic Feet 1 x RS232 Cable (3-pin to DB9) ... -
Page 6: Product Appearance Of The Avg-Cs-Hdmi44

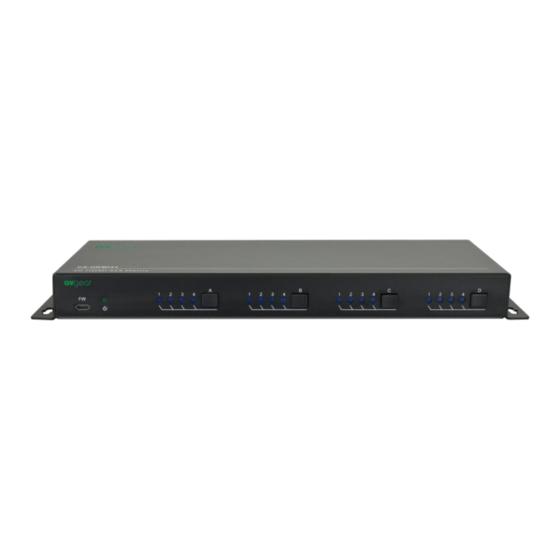

AVG-CS-HDMI44 3. Product Appearance of the AVG-CS-HDMI44 3.1. Front Panel Name Description ① FIRMWARE Micro USB port for performing firmware updates. ② POWER LED The LED illuminates green when power is applied. A series of four LEDs, one of which illuminate blue to indicate ③... -
Page 7: Rear Panel
AVG-CS-HDMI44 3.2. Rear Panel Name Description Connect your sources to any of the four HDMI input ports ① INPUTS (1~4) (Blu-ray Disc™ or DVD players, gaming consoles, etc.). OUTPUTS ② Four HDMI output ports to connect your displays to. (A~D) RS232: 3-pin phoenix connector for RS232 control. -
Page 8: System Connection
AVG-CS-HDMI44 4. System Connection 4.1 Usage Precautions Verify all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets and power cords should be insulated and safe. -
Page 9: Connection Procedure
AVG-CS-HDMI44 4.3 Connection Procedure Step 1. Connect HDMI sources (e.g. DVD) to HDMI INPUTS with HDMI cables. Step 2. Connect HDMI displays (e.g. HDTV) to HDMI OUTPUTS with HDMI cables. Step 3. Connect the RS232 ports of the control device (e.g. a PC) and AVG-CS- HDMI44 to enable serial control. -
Page 10: Front Panel Control
AVG-CS-HDMI44 5. Front Panel Control Repeatedly press the OUTPUT button to cycle through the various inputs for the corresponding output. 6. IR Remote Control Press the STANDBY (1) button to enter or exit Standby mode. To switch the selected input for one or more of the... -
Page 11: Rs232 Control
AVG-CS-HDMI44 7. RS232 Control If the HDMI matrix needs to be controlled from a PC using an RS232 connection, the third party RS232 control software package, such as CommWatch.exe, whose installation and usage is described below. Installation: Copy the control software file to the computer connected with the matrix. - Page 12 AVG-CS-HDMI44 RS232 Commands Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none System Command: Command Example and Command Description Response /*Type; /*Type; Report system model. CE-MX44 /%Lock; /%Lock; Lock front panel buttons.
- Page 13 AVG-CS-HDMI44 Signal Switching: Command Example and Command Description Response 2All. [x]All. Switch input [x] AV to all output. x=1~4. 02 To All. Switch all input signal to the corresponding All#. All#. output channel. All Through. All$. All$. Switch off all output.
- Page 14 AVG-CS-HDMI44 EDID Management: Command Example and Command Description Response Set the audio format of input [x] to PCM. EDIDPCM1. EDIDPCM[x]. x=1~ 4. EDIDPCM1 EDIDG[x]. Get the EDID data from output [x]. x=1~ 4. EDIDG1. EDIDMInit. EDIDMInit. Reset factory default EDID to all input ports.
-
Page 15: Specification
AVG-CS-HDMI44 8. Specification Video Input (4) HDMI Input Input Connector (4) female type A HDMI HDMI Version HDCP Version Video Output Output (4) HDMI Output Connector (4) female type A HDMI HDMI Version HDCP Version General Maximum Video Resolution 4K@60Hz 4:2:0 Maximum Bandwidth 10.2 Gbps... -
Page 16: Panel Drawing
AVG-CS-HDMI44 9. Panel Drawing 269.0 mm 244.0 mm 10. Troubleshooting Q1: There is no video present on one of the displays. A1: Check the cable connections. Try replacing the HDMI cable with a known good one. Verify that the Link LED is illuminated.
