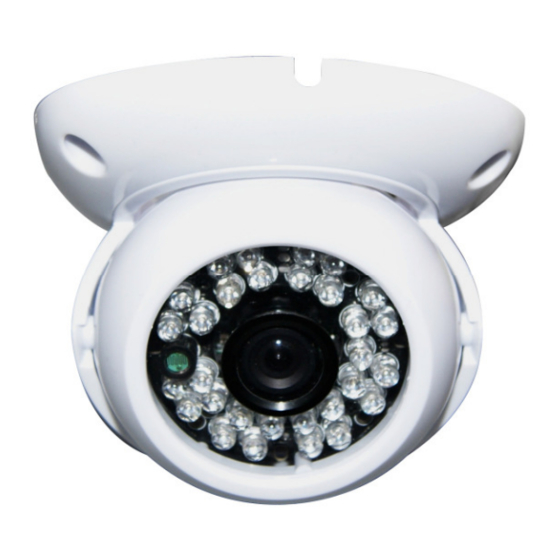

Digital Equipment DGT-DP-1089SH25 User Manual

Specification
Model DGT-DP-1089SH25
Pick up Element 1/3"CMOS
Effective Picture
728(H)×488(V)
Elements (H×V)
Horizontal Resolution
600TV Line
Minimum Illumination 0.1Lux
S/N Ratio More than 48dB
Scanning System 2:1 interface
Synchronous System Internal, Negative sync.
Auto Electronic Shutter PAL: 1/50s~1/100,000s
Gama Characteristic 0.45
IR Distance
25 Meters (with ￠ 5 X30PCS Infrared LED)
IR Status Under 10Lux by CDS
IR Power On
CDS AUTO Control
Video Output 1Vpp, 75
Auto Gain Control Auto
DC12V (+/-10%)/400mA
Power / / / / C urrent
Lens Board Lens 3.6mm / F2.0
Dimension (mm) ￠ 1 00x 70(H)
Weight (g) 300
Storage Temperature
-30~+60 ℃ RH95% MAX
Operating Temperature
-10~+45 ℃ RH95% MAX
Packing List
No Name
1. DGT-DP-
Plastic IR Dome Cameras
1089SH25
2. User Guide DGT-DP-
1089SH25
Franchiser：
Model Number
1
1
DGT-DP-1089SH25
Color Camera
Plastic IR Dome Camera
Notes : : : :
B efore providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
