Specification
Model
DGT-PD-EAP1
Pick up Element
1/3" SUPER HAD Color Sony CCD
Effective Picture Elements
PAL:795(H)x596(V)
(H×V)
Horizontal Resolution
Color 650TVL, Black 700TVL
Minimum Illumination
0.001 Lux
S/N Ratio
50dB
Scanning System
2:1 interface
Synchronous System
Internal, Negative sync.
Auto Electronic Shutter
PAL: 1/50s~1/100,000s
Gama Characteristic
Video Output
1Vpp, 75
Auto Gain Control
Auto
Power / / / / C urrent
DC12V(+/-10%) / 8 00mA
Lens
5-60 mm dynamic varifocal lens
Dimension (mm)
￠ 1 21 x 177(H)
Weight (g)
2800
Storage Temperature
-30~+60 ℃ RH95% MAX
Operating Temperature
-10~+45 ℃ RH95% MAX
Packing List
No
Name
1.

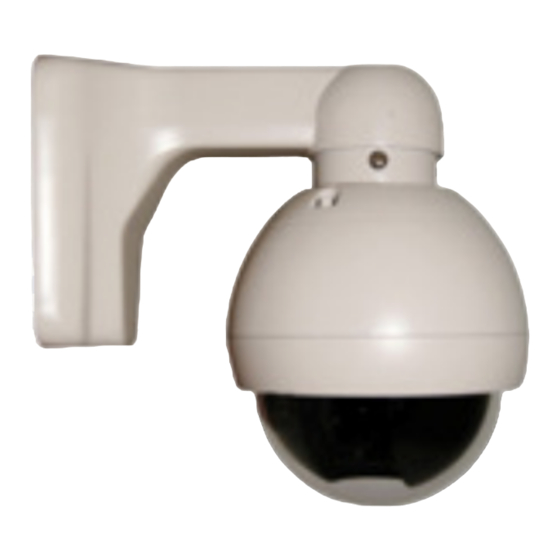

Vandalproof Mini PTZ Speed Dome
DGT-PD-EAP1
camera
2.
User Guide
DGT-PD-EAP1
0.45
Franchiser：
Model
Number
1
1
DGT-PD-EAP1
Vandalproof Mini PTZ Speed Dome
camera
Notes : : : :
B efore providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
