Specification
Model
DGT-DV-673SHT30
Pick up Element
1/3" SONY EXview HAD CCD
Effective Picture Elements
PAL:1020(H)x596(V)
(H×V)
Horizontal Resolution
700 TV Line
0.001 Lux
Minimum
Illumination
0Lux (with IR LED ON)
S/N Ratio
52dB
Scanning System
2:1 interface
Synchronous System
Internal, Negative sync.
Auto Electronic Shutter
PAL: 1/50s~1/100,000s
Gama Characteristic
IR Distance
30 Meters (with ￠ 5 X36 PCS Infrared LED)
Video Output
1Vpp, 75
Auto Gain Control
Auto
Power / / / / C urrent
DC12V(+/-10%) / 5 00mA
2.8-12mm Manual Zoom Lens
Dimension (mm)
￠ 1 31 x 93(H)
Weight (g)
Storage Temperature
-30~+60 ℃ RH95% MAX
Operating Temperature
-10~+45 ℃ RH95% MAX
Packing List
No
Name
1.
Vandalproof
DGT-DV-
IR Dome Color Camera
673SHT30
2.
DGT-DV-
User Guide
673SHT30
II
0.45
800
Franchiser：
Model
Number
1
1
DGT-DV-673SHT30
Color Camera

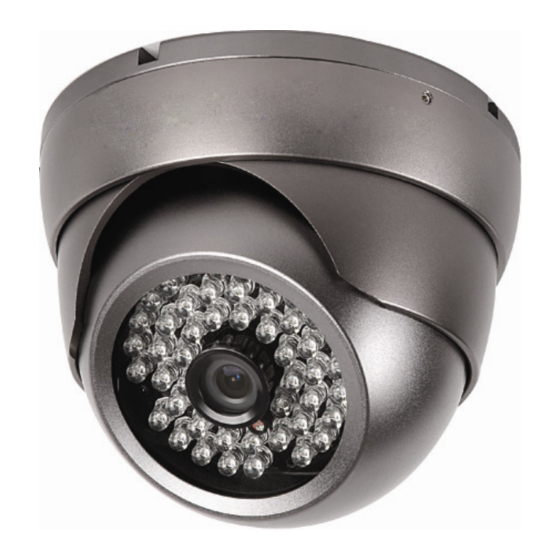

Vandalproof IR Dome Color Camera
Notes : : : :
B efore providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
