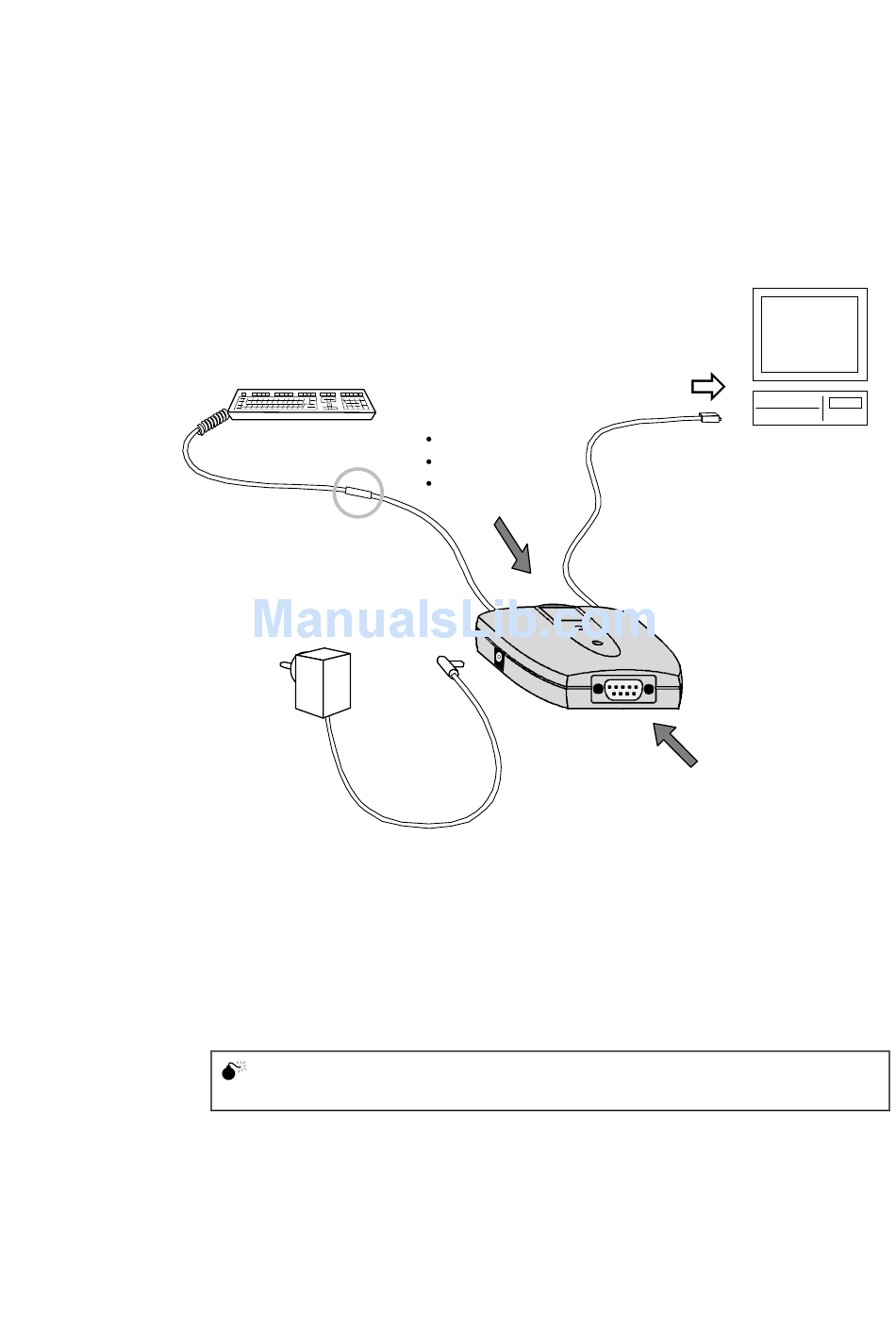

2. Switch off the host system and connect up the MicroBar NX
Keyboard wedge—All except Wyse, DEC 220 / 320 / 420
5V power supply
(if required)
1. Switch off the host system.
2. Disconnect the keyboard from the host computer.
3. Use the appropriate keyboard wedge cables to connect the MicroBar
NX between the keyboard and the host computer.
4. If your system requires an external power supply, connect the power
supply (jack or modular plug) to the MicroBar NX.
Do not switch on the host computer or plug the external power supply into the
mains socket.
