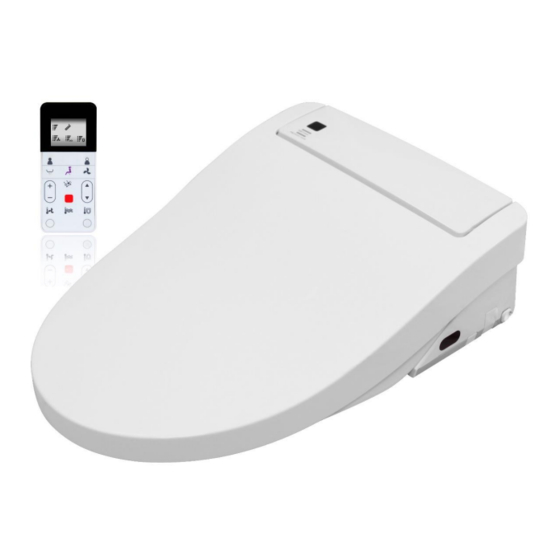

ECOWAY KOMFY300 User Manual
  1. Manuals
  2. Brands
  3. ECOWAY Manuals
  4. Toilets
  5. KOMFY300
  6. User manual

ECOWAY KOMFY300 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

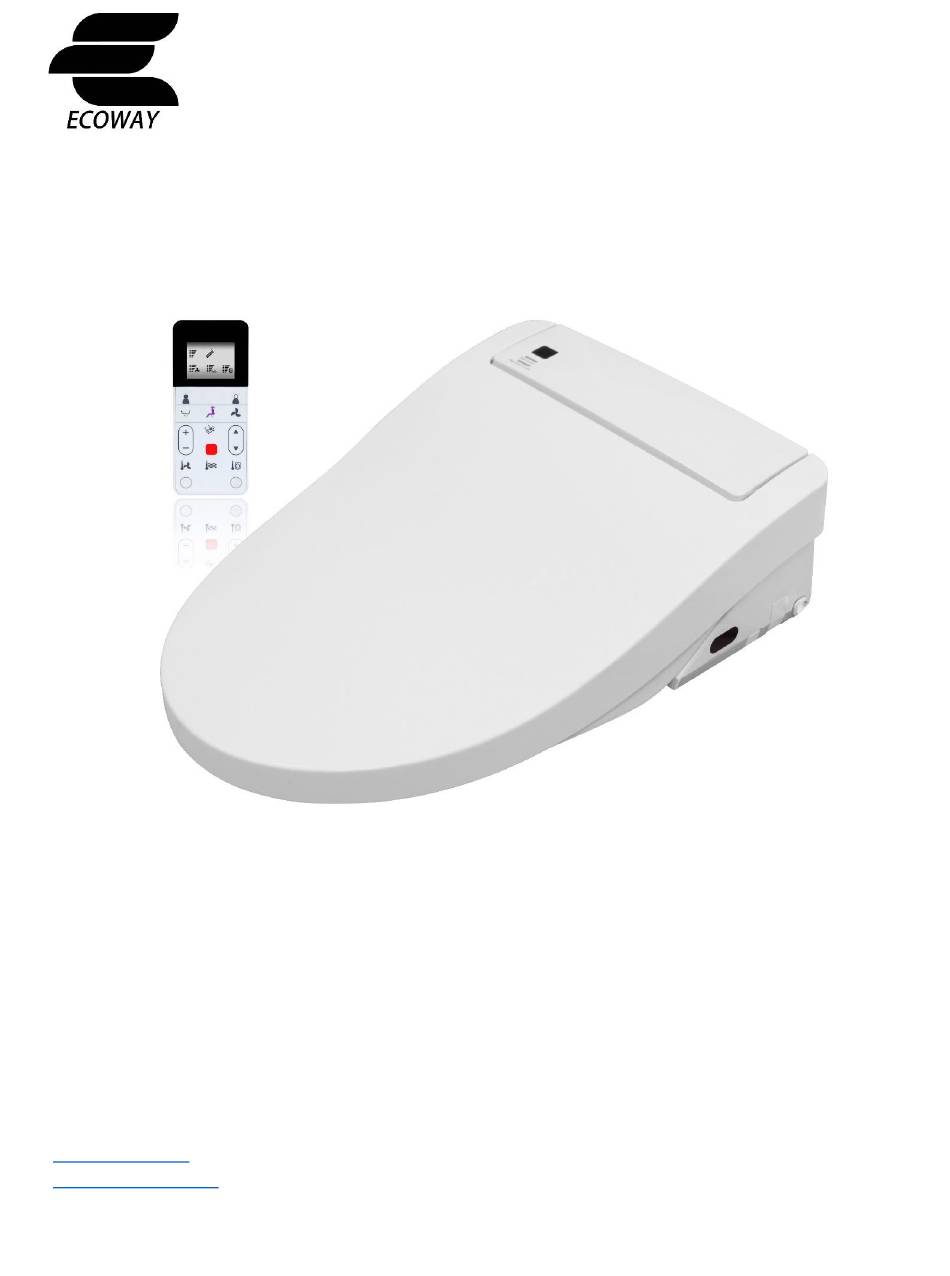

KOMFY300 USER'S MANUAL
Ecoway Trading (Canada) Inc.
174 Torbay Rd. L3R 1G6
Markham, Ontario
www.eco-way.ca
service@eco-way.ca
1 833 3ECOWAY (1 833 332 6929)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KOMFY300 and is the answer not in the manual?

Questions and answers

Related Manuals for ECOWAY KOMFY300

Summary of Contents for ECOWAY KOMFY300

  • Page 1 KOMFY300 USER'S MANUAL Ecoway Trading (Canada) Inc. 174 Torbay Rd. L3R 1G6 Markham, Ontario www.eco-way.ca service@eco-way.ca 1 833 3ECOWAY (1 833 332 6929)

  • Page 2: Table Of Contents

    Part – 5: PACKING LIST ..........................19 Part – 6: TECHNICAL SPECIFICATIONS ..................... 20 Dear customer, Thank you for buying an ECOWAY brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

  • Page 3: Part 1: Before Putting Into Operation

    PART 1: BEFORE PUTTING INTO OPERATION Important safety instructions • Read thoroughly and retain for future use. • The power source required by the appliance must be installed by an authorized electrician. Otherwise, there exists a risk of an accident, injury or damage to the appliance. •...

  • Page 4: Important Safety Measures

    • Only use tap water or potable well water/underground water. Do not use seawater. Doing so may cause irritation to the skin and malfunction. • When using the product in a bathroom, install a fan or ventilation port and ensure good air flow through the bathroom.
  • Page 5 Risk of death/injury by electrical shock This is an electrical product. Do not install it where water is likely to get on the product or where with humidity high enough that water is likely to form on the surface of this product. •...
  • Page 6 Health concerns • Preliminary studies in females suggest that overuse of continuous spraying can increase the possibility of vaginal mucosa drying and potential reduction in desirable microbial organisms. • Although these studies have not been validated, please consult your healthcare provider for concerns regarding whether these circumstances may apply to you.

  • Page 7: Part - 2: Installation

    Part – 2: INSTALLATION Carefully read the entire user's manual before putting your bidet seat into operation and store it in a safe place for future reference. The appliance must be installed by an authorized service technician or another responsible person. Installation space Before proceeding with the installation, carefully measure and make sure that the unit measurements match the user’s toilet.

  • Page 8: Installing Base-Plate

    Installing base-plate 1. Install the Expansion Screws into the installation holes in the toilet. 2. Then install the Base Plate, Pressing Plate, Gasket and Screw as per the drawing and tighten the Screws. Note: Unfold the installation paperboard, place the paperboard over the toilet bowl from the tip, and then insert the base plate to the paperboard breach to make sure base plate align with paperboard breach.

  • Page 9: Installation Of Water Supply Pipe

    Installation of water supply pipe Step-2: Bottom side connecter Step-1: Left side connecter If the toilet has two holes; for power line and Install the 3-way connecter onto the angle valve, and water supply, let two supplies across the hole to then connect the large hole of water supply pipe and plug in device’s connector which is under the water pipe of toilet pipe to the 3-way connecter.
  • Page 10 Power plug verification • Insert the power plug into power socket, and press protection button. When indicator light is on, the device is powered on. • Press the leakage test button if first time use the device. Protection switch bumps to show that protection function works normally Self-inspection •...

  • Page 11: Part - 3: Description Of The Appliance & Control Panel

    Part – 3: DESCRIPTION OF THE APPLIANCE & CONTROL PANEL Description of the appliance WATER RELEASE WATER INTAKE BUTTON REMOVE BUTTON SIDE BUTTONS POWER CORD REMOTE CONTROL RECEPTION POWER INDICATOR ECO-MODE INDICATOR NOZZLE SEAT SENSOR REAR WASH SPRAY AIR DRYER BASE PLATE AUTOMATIC NIGHT LIGHT NOZZLE...

  • Page 12: Side Buttons And Functions

    Side Buttons and Functions 1. Press and hold Power button to switch the unit between ON and OFF mode. 2. When the unit is ON, press the Power button once to switch between Function and ECO mode. 1. When user is seated on the unit, press “Front cleansing button”...

  • Page 13: Part - 4: Remote Control Operation

    Part – 4: REMOTE CONTROL OPERATION 1: INSTALLING THE REMOTE-CONTROL UNIT Please do not install and use the product in moist places such as a steam room, or in a place where it can easily get wet. 2. Remove the 1.

  • Page 14: 2: Description Of The Remote Control

    2: DESCRIPTION OF THE REMOTE CONTROL SIGNAL INDICATOR USER CODE USER CODE FRONT WASH REAR WASH WARM AIR DRY MASSAGE WATER PRESSURE NOZZLE POSITION STOP BUTTON SEAT TEMPERATURE AIR TEMPERATURE ENERGY SAVE MODE NOZZLE CLEANSING WATER TEMPERATURE 12 | P a g e...

  • Page 15: 3: Operations And Instructions

    3: OPERATIONS AND INSTRUCTIONS Rear/Front Cleansing and Drying Rear / Front Cleansing 1. When user is seated on the unit, press “REAR/FRONT” button. 2. Water comes out of the wand to clean the rear/front portion of body. 3. After cycle of cleaning completes, the process will stop automatically. Drying 1.
  • Page 16 Massage; Nozzle Position; Water Pressure Adjustment Massage 1. Press “MASSAGE” button to initiate massage function. 2. The nozzle moves back and forth to extend the cleaning scope. 3. Press “MASSAGE” button again to stop the function. Nozzle Position Adjustment 1. To position the spray nozzle forward press 2.
  • Page 17 ECO Mode 1. Press ENERGY SAVER button, LCD screen shows ENERGY SAVER icon. 2. Users can select from these presets “OFF”, “3”, “6”, “9” *If user select 6 then the system will stay in ECO mode for 6 hours then goes back to Function mode. 3.
  • Page 18 Nozzle Cleaning Nozzle Manual-Cleaning Press “NOZZLE CLEANING” button once, the wand will stretch out, user can wipe it down with a soft cloth. Nozzle Self-Cleaning Press and hold “NOZZLE CLEANING” button for three seconds, the nozzle starts self-rinsing for 90 seconds.

  • Page 19: 4: Operation Modes

    User Setting Memory User settings 1. Press and hold “USER 1” or “USER 2” button to save the parameters including current water pressure, nozzle position, air dry temperature, water temperature and seat temperature. 2. Press “USER 1” or “USER 2” button to apply saved parameters. 4: OPERATION MODES Night Light Provides visibility in a subtle manner.

  • Page 20: Part - 5: Maintenance & Cleaning

    Part – 5: MAINTENANCE & CLEANING Cleaning the unit Cleaning the nozzle 1. Turn off the power before cleaning the unit. 1. Press the NOZZLE CLEANING button on the 2. Gently wipe dirt and stains with a dry soft cloth remote control, or REAR CLEANSING button or sponge.

  • Page 21: Part - 5: Packing List

    Part – 5: PACKING LIST 1.Base Plate 2.Screw (2 pcs) 3.Gasket (2 pcs) 4.Pressing plate (2 pcs) 5.Expansion Screw (2 pcs) Water Pipe (1 pcs) 3-way Connector (1 pcs) USER MANUAL User WARRANTY CARD Manual Warranty INSTALLATION PAPERBOARD Card KOMFY-300 REMOTE CONTROL 19 | P a g e...

  • Page 22: Part - 6: Technical Specifications

    Part – 6: TECHNICAL SPECIFICATIONS Item Komfy-300 KV8100 Rated power supply AC110-220V ~ 50/60Hz Maximum power consumption 1000 W Power cord length 1.8 m (5.9ft) Water Pressure Minimum Water Pressure is 0.07 MPa (20L/min flush), Maximum Water Pressure is 0.8 MPa (Static). Water Tank capacity 600ml Heater capacity...
