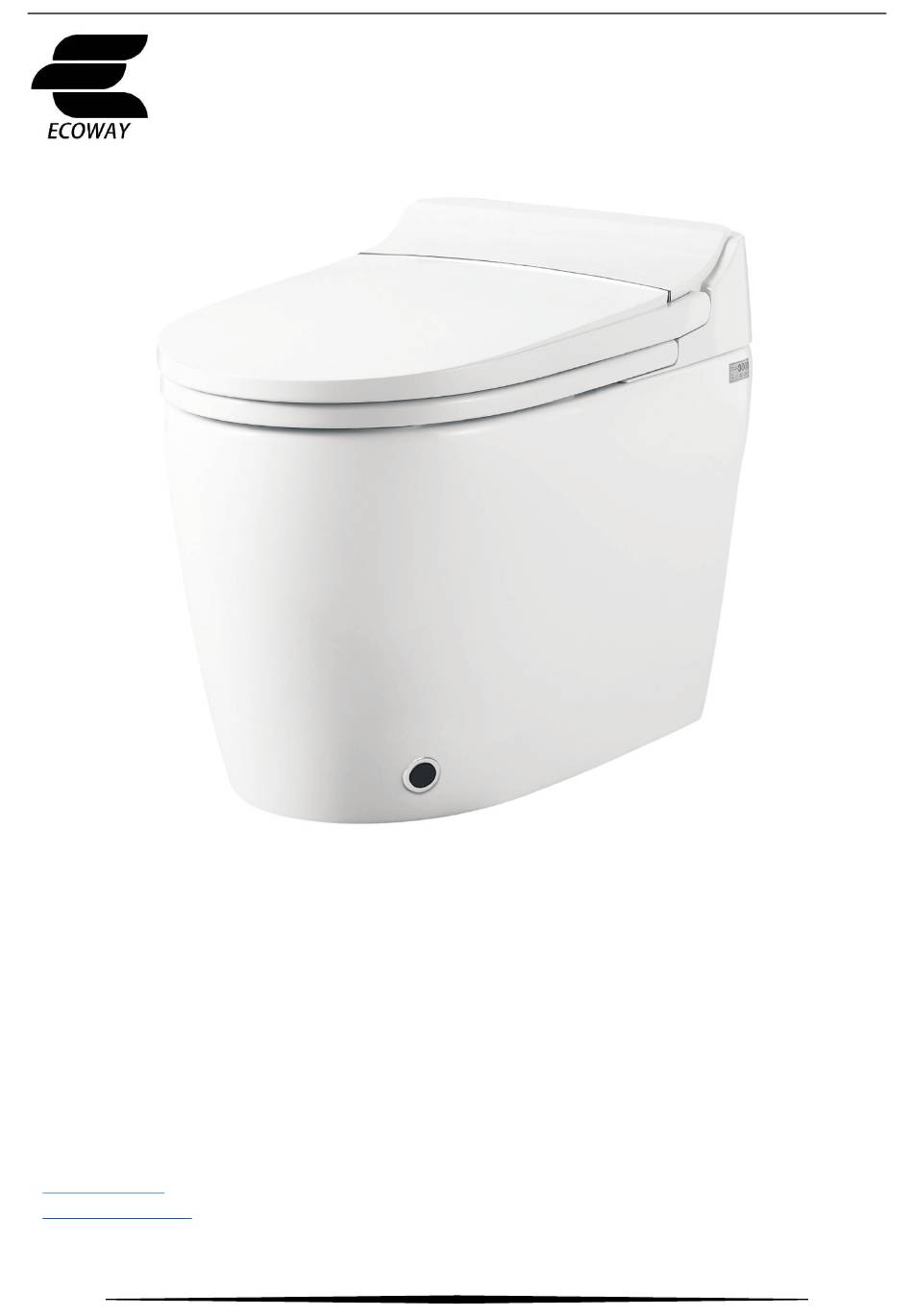

- Page 1 TITANDT300 2050 USER MANUAL Ecoway 174 Torbay Rd. L3R 1G6 Markham, Ontario www.eco-way.ca service@eco-way.ca 1 833 3ECOWAY (1 833 332 6929)
-
Page 2: Table Of Contents
Contents SAFETY PRECAUTIONS BEFORE INSTALLATION Installation Space Water pressure Installation Drawing Plan INSTALLATION Floor drain gasket and bowl unit Water supply Seal the bowl unit Connect power cord Checklist and trial run NAMES OF PARTS WHAT’S IN THE BOX FUNCTIONS OVERVIEW SIDE BUTTON OPERATION When user is sitting on the unit When user is not sitting on the unit... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS IMPORTANT Read all instructions and warnings before using Symbols and meanings WARNING May cause death or serious injury CAUTION May result in injury or property damage The following symbols are used to indicate important safety instructions for the use of the product Symbol Meaning This symbol indicates a prohibited use of the product... - Page 4 WARNING Do not use the unit if a malfunction occurs. Always unplug the power plug from the outlet. Close the water shutoff valve to stop water supply Possible malfunctions: Water is leaking from a pipe or the tank The product is cracked or broken The product makes a strange noise or emits a strange odor The product emits smoke The product is abnormally hot...
- Page 5 WARNING Beware of irritation or burn Improper use of the toilet seat may cause irritation or burn. When sitting for a long time on the toilet seat, switch the toilet seat temperature adjustment to "OFF". When any of the following persons use a heated seat or warm air drying, someone should switch the toilet seat temperature adjustment to "OFF"...
- Page 6 WARNING Periodically remove dust and dirt from the power plug and make sure it is securely plugged into the wall outlet. Failure to do so may cause fire, over-heating or short circuiting Pull the plug out from the outlet and wipe clean with a dry cloth. Always unplug the power plug from the outlet before removing the top unit.
- Page 7 CAUTION Do not use the product if the top unit is unstable. Doing so may cause the top unit to come loose and fall, resulting in injury. • If the product is damaged, do not touch the damaged section. Doing so may cause electrical shock or injury. Replace it immediately. •...
- Page 8 If a water leak should occur, always close the shutoff valve. When the ambient temperature is likely to drop to 0°C (32°F) or lower, prevent damage to the pipes and hoses due to freezing. Frozen water pipes could cause the top unit and the pipes to break, resulting in a water leak. •...
-
Page 9: Before Installation
BEFORE INSTALLATION INSTALLATION SPACE Ensure there is enough space around the unit, confirm the bathroom door or shower door will not hit the unit when they open. Ensure the minimum distance from the wall to the center of the floor drain is 305mm or 12” long. A GFI plug is required close to the unit. -
Page 10: Installation
INSTALLATION FLOOR DRAIN GASKET AND BOWL UNIT 1. Install wax ring on floor drain and seal well. (see figure 1) 2. Carefully install bowl unit on socket. (see figure 2) Wax Ring Ground Sewage pipe Figure 1 WATER SUPPLY 1. Turn off water shut off valve 2. -
Page 11: Seal The Bowl Unit
SEAL THE BOWL UNIT Seal the gap between toilet and the ground, to further prevent water and odor leakage. Evenly apply a layer of general-purpose sealant (not included with the unit) around bottom of toilet, smooth the sealant with finger. Allow the sealant to dry for at least 24 hours. -
Page 12: Checklist And Trial Run
Front and rear wash Massage Water temperature Water pressure Nozzle position Nozzle self-cleansing Air dryer Air temperature Seat temperature Flushing A trial run is mandatory for safety purposes, if any malfunction has occurred, contact your dealer or Ecoway directly at service@eco-way.ca. -
Page 13: Names Of Parts
NAMES OF PARTS There could be minor difference between actual product and above graphic, due to production batches. -
Page 14: What's In The Box
WHAT’S IN THE BOX Remote control Main unit (battery included) Angle valve (Filter Wax Ring screen inside) Power back up Connection pipe battery Printing materials: User manual, Warranty card FUNCTIONS OVERVIEW FEATURED FUNCTIONS: HYGIENE SAFETY COMFORT Rear wash Overheat protection Warm air drying Front wash Low temperature burn protection... -
Page 15: Side Button Operation
SIDE BUTTON OPERATION WHEN USER IS SITTING ON THE UNIT Press once to start rear cleansing, regular cleansing time is 90 seconds, press again within 90 seconds to activate pulsate cleansing, again to stop pulsate cleansing..When rear cleansing finishes, unit will start warm air-drying for 240 seconds by default Press once to start front cleansing, regular cleansing time is 90 seconds, press again with 90 seconds to activate pulsate cleansing, again to stop pulsate cleansing. -
Page 16: Remote Control Operation
REMOTE CONTROL OPERATION 。 � ． ． ＠ ， 包 复 Note: Remote control could be different from above graphic, due to production batches, please refer to actual product. - Page 17 BUTTONS AND FUNCTIONS Works both if the sensor is covered or not for children and elderly usage, also works when child seat is used. Press once to start child cleansing, regular cleansing time is 90 seconds and warm air-drying is 240 seconds. Press again to activate pulsate cleansing, again to stop pulsate cleansing.
- Page 18 Press once to turn on high and low massage function. Press again to turn it off. High and low massage function: water pressure will alternate between high and low in one cleansing cycle. High/Low massage Press to switch between warm air-drying temperature levels. ○○○○○: 0 light on - wind temperature is at room temperature ●○○○○: 1 light on...
-
Page 19: Customizing The Titandt300
CUSTOMIZING THE TITANDT300 Press once to initiate flush. Press and hold the button for 2 seconds to enter auto-settings menu. First light indicator will start flashing, other lights will be ON or OFF based on the setting status. Top right indicator light will be ON/OFF indicating status of the chosen setting. Under auto-setting menu, press FLUSH/AUTO SETTING button to switch between settings, then press BACK/OFF or FRONT/ON button to turn settings ON or OFF. -
Page 20: Maintenance
MAINTENANCE REGULAR MAINTENANCE Cleaning the unit Gently wipe dirt and stain s with a dry soft cloth or sponge, do not apply any chemical solutions to the unit. Cleaning the nozzle Works when user not sitting on the unit. Press female clean button by side button, the nozzle will stretch out and self-cleaning function will initiate. When self-cleaning function turns on, the nozzle will not spray water. -
Page 21: Specifications
SPECIFICATIONS 2050 TitanDT300 Item Rated power supply AC120V ~ 60Hz Maximum power consumption 1050 W Type of water heater Instantaneous Power cord length 0.8 m (2.62ft) Waterproof level IPX4 Rear cleansing Approx. 0.5 - 0.9 L/min (Approx. 0.13 - 0.24 gal/min) Spray Front cleansing Approx.
