Summary of Contents for Dream On Me MAPLE DOUBLE DRESSER

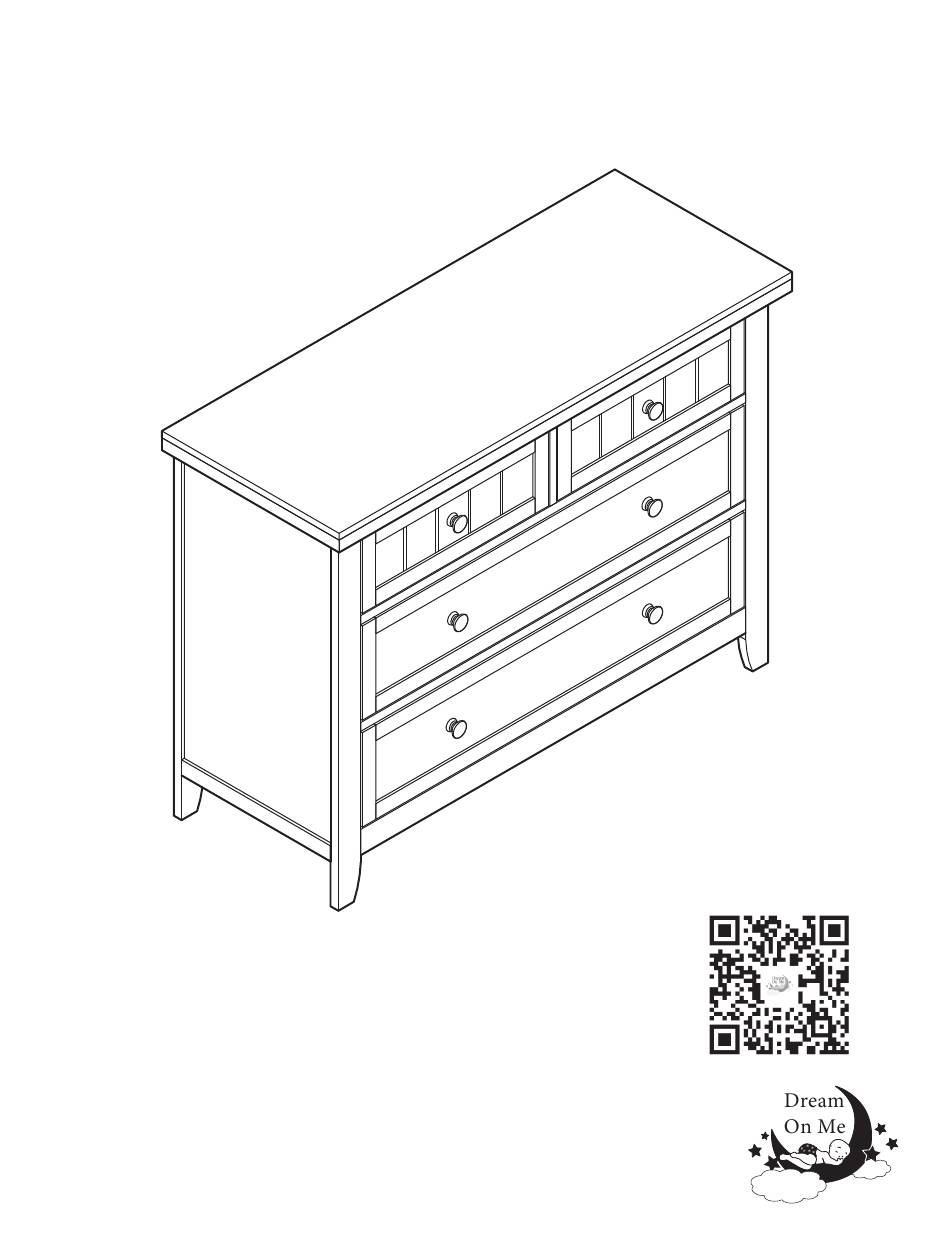

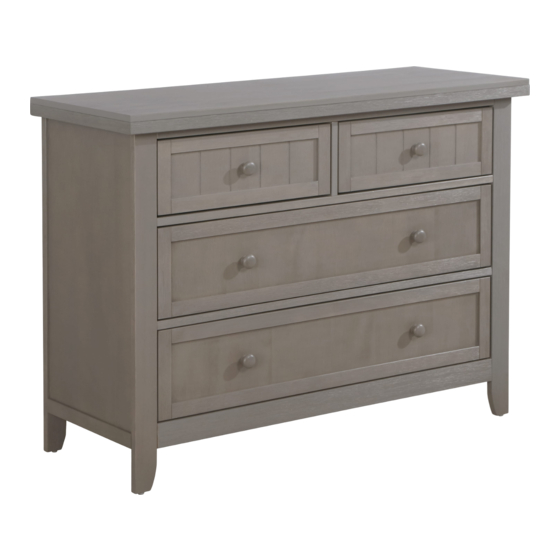

- Page 1 MAPLE DOUBLE DRESSER Owner’s Manual Scan the QR code to register your product https://dreamonme.com/customercare/registration/ Read all instructions before assembling and using product. IMPORTANT - Keep instructions for future use. 0222R1-598...
-
Page 2: Safety Tips
SAFETY TIPS Small parts may Adult Assembly present choking Required. hazard prior to assembly. DO NOT use the Please read the product if it is instructions damaged, broken, thoroughly. Identify all and/or components are parts & hardware. missing or broken. To protect your parts Improper or unsafe use during assembly,... -
Page 3: Limited Warranty
LIMITED WARRANTY: • Dream On Me warrants its product to be free from defects in material and workmanship and agrees to remedy any such defect. • This warranty covers 1 year from the date of original purchase. - Page 4 OR SHARP EDGES BEFORE AND AFTER ASSEMBLY AND FREQUENTLY DURING USE. • DO NOT USE THIS DRESSER IF ANY PARTS ARE MISSING, DAMAGED OR BROKEN. CONTACT DREAM ON ME - 1532 S. WASHINGTON AVE, PISCATAWAY, NJ 08854 FOR REPLACEMENT PARTS.
- Page 5 PARTS If there are any missing parts, please contact Dream On Me before using the product. Dresser Top Panel Dresser Left Dresser Center Dresser Right Side Panel Panel Side Panel Dresser Top Dresser Bottom Dresser Top Dresser Center Back Panel...
- Page 6 PARTS (cont.) If there are any missing parts, please contact Dream On Me before using the product. Top Drawer Base Top Drawer Left Top Drawer Back Panel (x2) Panel (x2) Panel (x2) Center and Bottom Center and Bottom Center and Bottom...
- Page 7 HARDWARE If there are any missing parts, please contact Dream On Me before using the product. Bolt 1-3/4” (×16) Bolt 1”(×12) Wooden Dowel 1-1/8” (×13) Curve Washer (×16) Screw 1”(×34) Wooden Dowel 3/4” (×8) Knob (×6) Screw 3/4” (×6) Allen Key (x1)
- Page 8 DRESSER ASSEMBLY - DRESSER FRAME ASSEMBLY 1a. Place the Dresser Top Back Panel (5) on a soft surface, insert the Wooden Dowel (C) into three insertions on Center Panel (3) as shown in the diagram. 1b. Align the Center Panel (3) on the Top Back Panel (5), attach them with the Bolt (A), by inserting them from below, into the...
- Page 9 DRESSER ASSEMBLY - DRESSER FRAME ASSEMBLY 2a. Align the above made assembly, Dresser Right Side Panel (4), Left Side Panel (2), as shown in the illustration. 2b. Insert all the Bolts (A) into the Curve Washer (D), attach all the parts by inserting the assembled (10) Bolts (A).
- Page 10 DRESSER ASSEMBLY - DRESSER FRAME ASSEMBLY 3a. Align the Dresser Center Rail II (9) into the above assembled Frame as shown in the illustration. 3b. Insert the Bolts (B) on both sides, inside the Dresser Center Rails (8 and 9) from outside the frame and tighten them.
- Page 11 DRESSER ASSEMBLY - DRESSER FRAME ASSEMBLY 4a. Align the Dresser Top Panel (1) on the previously assembled frame. Refer to the diagram carefully and insert the two Wooden Dowels (C) each into the insertions on shorter right, center and left side on the top. 4b.
- Page 12 DRESSER ASSEMBLY - TOP DRAWER ASSEMBLY (12) 5a. Keep one of the Top Drawer Front Panels (11) on a soft surface, align the Front Panel (11), one of the Top (14) Drawer Left and Right Panels (14 and 12). Attach them by inserting the Screws (E) from outside as shown in the illustration.
- Page 13 DRESSER ASSEMBLY - TOP DRAWER ASSEMBLY (15) 5d. Align one of the Top Drawer Back Panels (15) as shown onto the previously assembled frame and attach them using Screws (E) as shown in the illustration. 5e. Attach the Knob (G) onto the Top Drawer Front Panel (11) by inserting the Screw (H) from behind the Panel by passing it through the Knob.
- Page 14 DRESSER ASSEMBLY - CENTER AND BOTTOM DRAWER ASSEMBLY (17) 6a. Align one of the Center and Bottom Drawers Front Panels (16), Center and Bottom Drawers Right Panels (17) and Center and Bottom Drawers Left Panels (19) as shown in the illustration on a (19) (16) softer surface.
- Page 15 DRESSER ASSEMBLY - CENTER AND BOTTOM DRAWER ASSEMBLY (18) 6d. Align one of the Center and Bottom Drawers Back Panels (18) onto the above made assembly and attach them using the Screws (E) on all four sides. 6e. Attach the Center and Bottom Drawers Support Rails (21) at the center using the two Wooden Dowels (F) at the top of...
- Page 16 DRESSER ASSEMBLY - DRAWERS INSERTION 7a. Insert the assembled top, center and bottom drawers into the grooves present. 7b. Ensure the right alignment of drawers before inserting into the frame. www.dreamonme.com/help...
- Page 17 ANTI-TIP SAFETY HARDWARE INSTALLATION Determine the desired location of the FURNITURE dresser. Find a wall stud behind the WALL furniture piece and position one of the Brackets (J) vertically on the stud WALL approximately 1" below the top of FURNITURE the dresser piece.
- Page 18 FURNITURE CARE INSTRUCTIONS ROOM CLIMATE CONTROL: • Wood, when first cut contains more than 50 percent water. When it is prepared for furniture construction it is placed in a Kiln and the moisture content is brought down to 8 to 10 percent. Wood is porous and responds to its environment. If the room has high humidity it will absorb it and expand and if the humidity is low it will lose moisture and shrink.
- Page 19 • Clean with a damp, not wet, cloth. Use only a mild soap. Do not use the abrasive cleaners. • Do not scratch or chip the finish. • Inspect the product periodically, contact Dream On Me Inc for replacement parts or questions. • Do not store the product or any parts in extreme temperatures and conditions such as a hot attic or a damp, cold basement.
- Page 20 1532 S. WASHINGTON AVENUE PISCATAWAY, NJ 08854 www.dreamonme.com Follow Us @dreamonmeinc to get your nursery featured on our social media. Enter our monthly giveaway! Chat with us! Scan the QR code to register. Scan the QR code to Live Chat.
