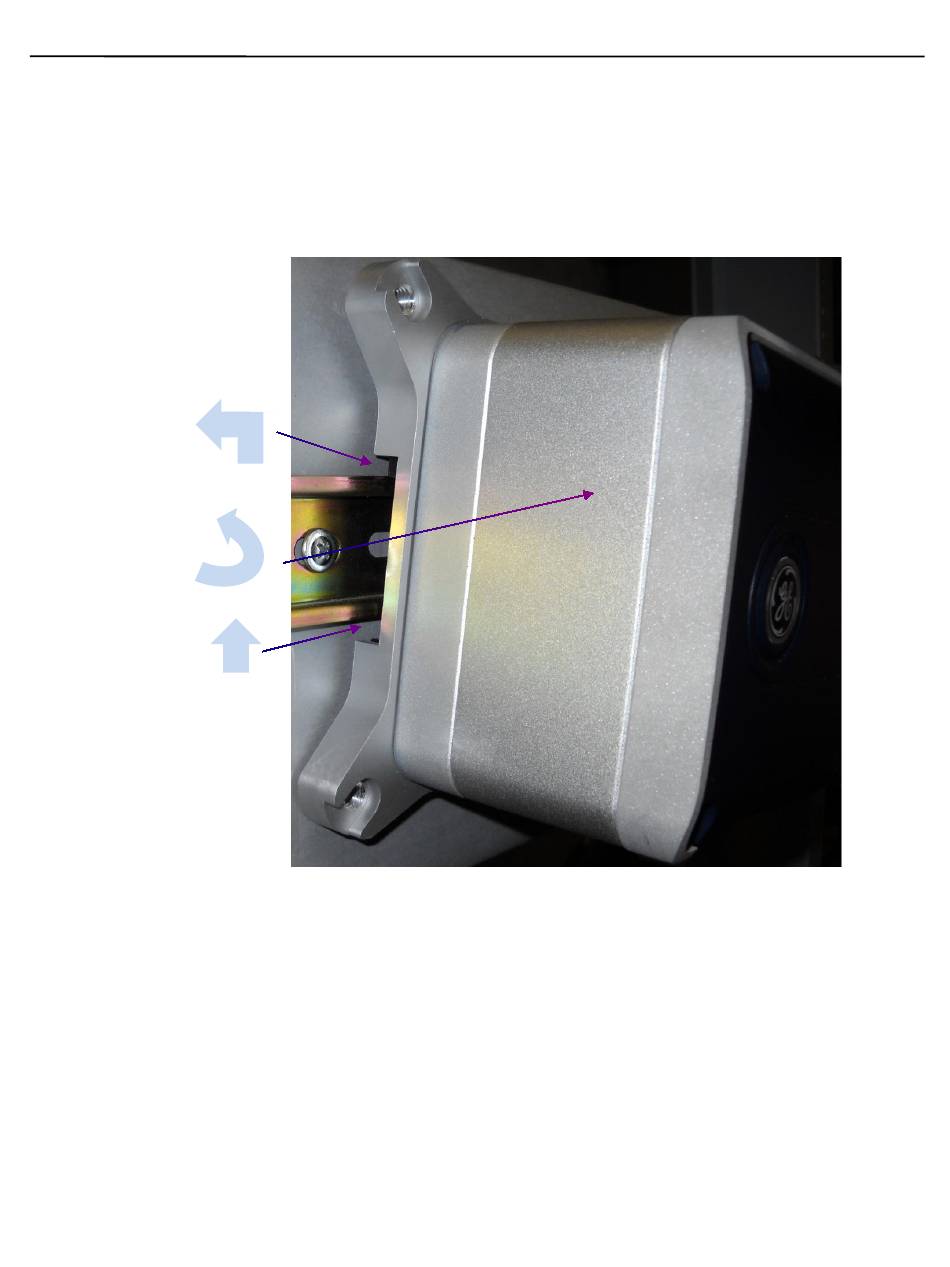

2. Install the unit on the DIN Rail.
a. Start with the top of the unit rotated approximately 20º from the panel.
b. Engage the spring-loaded latches at the bottom of the black DIN rail clip (attached to the
adaptor) on the DIN rail.
c. Rotate the unit up and press it upward to engage the top (static) latches with the rail.
d. Press the unit into place.
c.
b.
a.
