Alula RE206M Manual

Resolution Compatibles
Tilt Sensor
is a full-featured security transmitter typically
used to sense the tilt of overhead garage doors and
windows. It will alarm when the sensor is tilted more
than 45 degrees.

Features

• Industry-leading wireless range and battery life

Enroll

by placing the panel into wireless enrollment
mode and then sending an enrollment signal from the
sensor.

Sending an Enrollment Signal

Remove the battery tab and cover to trip
tamper. Select desired Loop:
• Loop 1: Tilt Alarm when tipped to vertical
• Loop 2: Tilt Alarm when tipped to flat
• Loop 3: Not used
• Loop 4: Tamper
Install
by mounting the sensor to the
inside of a door or window using the
mounting screw locations. For garage
door installations, the sensor should be
mounted to the top panel of the overhead
door. This ensures that the sensor
closes only when the door is fully
closed, and is best for RF range.

Tilt Detection

sensor exceeds a 45 degree angle.
If the sensor rotates further than
135 degrees, it is likely to remain
in a non-alarm state. For best
results, the sensor should rotate
within 90 degrees to ensure an
alarm state occurs.
Use the panel installation guide to verify proper system setup.

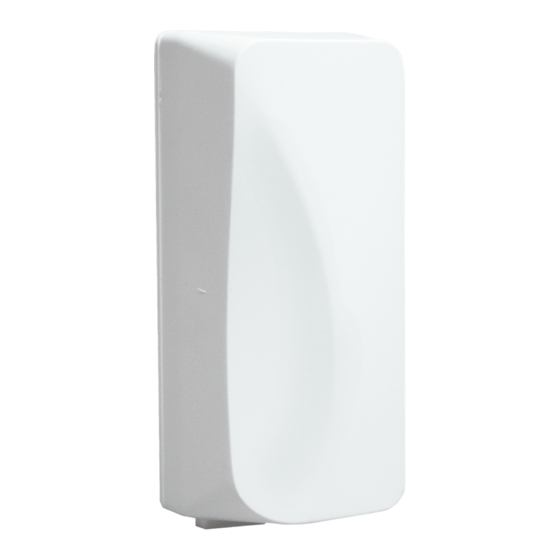

RE206M Tilt Sensor
Honeywell & 2GIG Compatible
occurs when the
Mounting
Screw
Holes
Cover-Securing
Screw Hole
