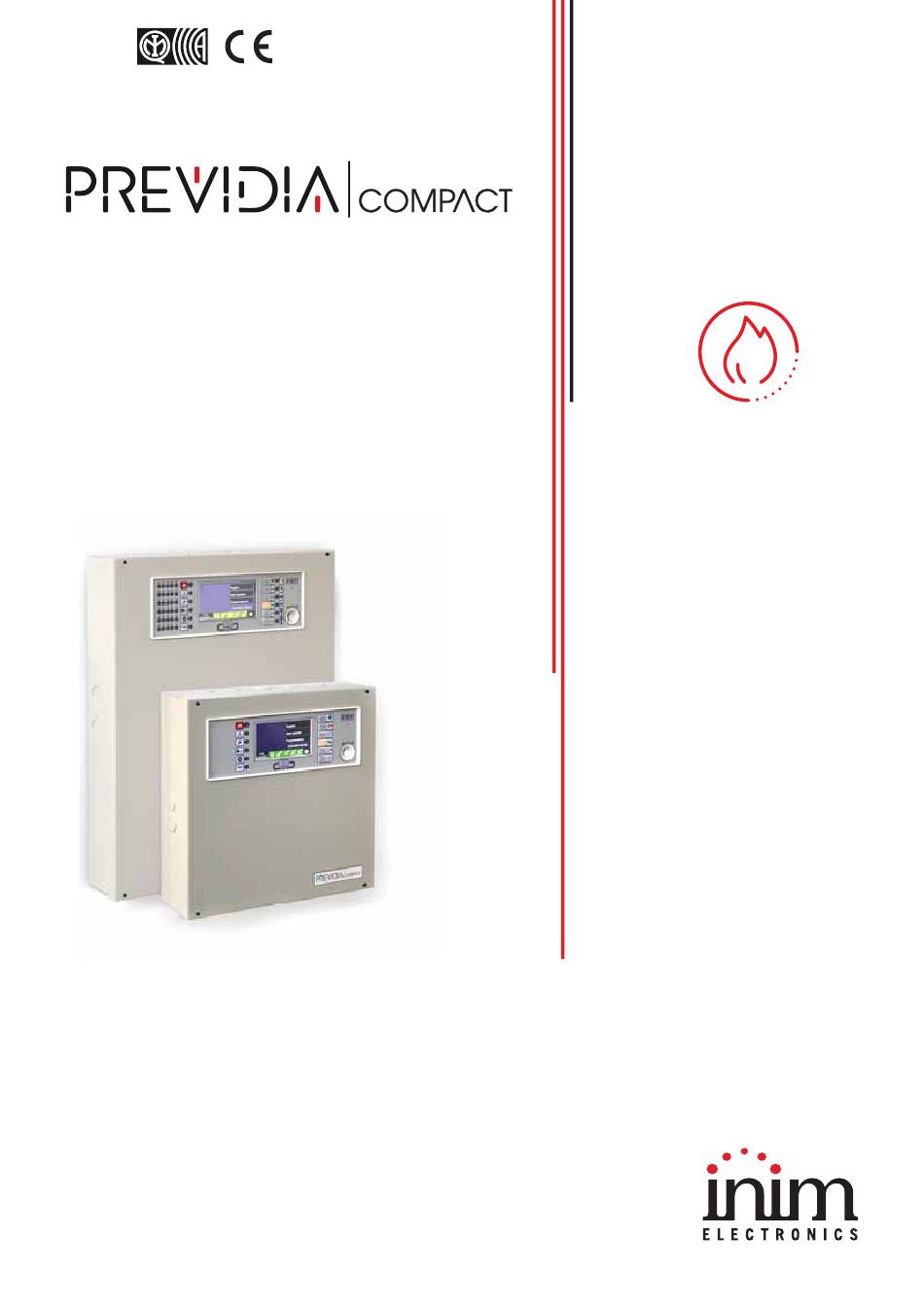

- Page 1 Installation manual EN 54-2 EN 54-4 EN 54-21 EN 12094-1 0051 0051-CPR-1498 0051-CPR-1499 ANALOG-ADDRESSABLE FIRE ALARM CONTROL PANEL, INSTALLATION MANUAL EXTINGUISHANT SYSTEM CONTROL PANEL, ALARM TRANSMISSION AND FAULT WARNING ROUTING EQUIPMENT...
- Page 2 INIM Electronics s.r.l. (Seller, Our, Us) warrants the original purchaser that this product shall be free from defects in materials and workmanship under normal use for a period of 24 months. As INIM Electronics s.r.l. does not install this product directly, and due to the possibility that it may be used with other equipment not approved by Us; INIM Electronics s.r.l.
- Page 3 Installation manual Table of contents Warranty.......................... 2 Limited warranty......................2 Copyright........................2 Table of contents ......................3 Chapter 1 General information ....................5 Manufacturer's details ........................5 Supplied Documentation .......................5 About this manual ..........................5 Operator classification - Access Levels ..................6 CE Mark...............................6 Chapter 2 General Description.....................8 Previdia Compact Models......................8...
- Page 4 Fire detection and extinguishant system Table of contents...
- Page 5 Web: www.inim.biz The personnel authorized by the manufacturer to repair or replace the components of this system have authorization to work only devices marketed under the INIM Electronics brand. Supplied Documentation Previdia Compact User's Manual: contains the identification of the parts on the front plate and the end-user operating instructions for use.
- Page 6 Fire detection and extinguishant system Note: The notes contain important information relating to the text. Attention: The “Attention” prompts indicate that total or partial disregard of the procedure could damage the device or its peripherals. EN54: Such indications indicate that the information and instructions refer to European standards. Cables: Such indications state the types and specifications of the cables which must be used for the wiring in accordance...
- Page 7 1.5.2 Directive 2014/53/EU Hereby, INIM Electronics S.r.l. declares that these Previdia Compact are in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Following paragraph explains how to download the complete Declaration of Conformity.
- Page 8 Each control panel model comes in a metal cabinet that is packed in a cardboard box. The cabinets used for the Previdia Compact series differ in size and colour: • small cabinet, dimensions 325x325x80mm, capacity to house 2 batteries of 1,5A – 7Ah, in light grey or red •...
- Page 9 Note: The control panels described in this manual have been designed and manufactured to the highest standards of quality, reliability and performance adopted by INIM Electronics. The components selected for this product will operate properly within their specifications when the environmental conditions outside the product enclosure comply with Class 3k5 (EN 60721-3-3).
- Page 10 Fire detection and extinguishant system Touchscreen display Status LED LED and function button LED and multiple-alarm button Previdia Compact in large cabinet Access-key slot Buzzer MicroSD card holder Reset button Button to reset default settings (factory settings) Programming jumper connector Ethernet port Mini USB port Connector for PREVIDIA-...
- Page 11 Installation manual Previdia Compact in small cabinet Back of the motherboard Output connection terminals number name maximum current: function 1, 5 500mA Positive Port A (positive and A+, A- 2, 3 negative) Hornet+ network terminal Port B (positive and 6, 7 B+, B- negative) 4, 8...
- Page 12 Fire detection and extinguishant system Output connection terminals number name maximum current: function + L1.O - 9, 10 Output 500mA Terminals of loop 1 + L1.I - 12, 13 Input + L2.O - 14, 15 Output 500mA Terminals of loop 2 + L2.I - 17, 18 Input...
- Page 13 Installation manual Stand-by Manual Blinking Flow switch extinction ACTIVATION from flow sensor Manual Automatic Condition sufficient? Blinking Pre- extinction PRE-EXTINCTION Pre-extinction time started Stop extinction active Stop extinction Stop extinction MANUAL AUTOMATIC “EXTERNAL” “HOLD” “ADD” “ABORT” Activation Activation Stop active extinction Stop extinction...
- Page 14 Fire detection and extinguishant system The following table contains a description of the functions associated with the extinction that can be programmed for the control panel inputs and outputs (on-board or on loops, through supervised outputs, such as those of the EM312SR modules).
- Page 15 Installation manual Refer to the Configuration Manual for the programming details of the other functions. EN12094-1: In compliance with the requirements of standard EN 12094-1, if the “Stop extinction-Abort” function is used in a Previdia Compact control panel, the “Stop Extinction-Hold” and “Stop Extinction-Add” functions cannot be activated, and vice versa.
- Page 16 Fire detection and extinguishant system PREVIDIA-C-COM, serial and IP interface module The PREVIDIA-C-COM optional board, available in two models, allows the Previdia Compact to interface with third-party devices external to the control panel. The communication channels and functions connected to them depend on the model of the board: •...
- Page 17 Installation manual Technical specifications PREVIDIA-C-COM PREVIDIA-C-COM-LAN Supply voltage 19-30 V Consumption @ 27.6V 15mA 40mA 200mA max. RS485 Operating temperature from -5°C to +40°C SD card capacity Maximum 32 Gbyte Previdia Compact REP Repeater For installations requiring a system control point other than the point where the Previdia Compact control panel is installed, there are two repeater panel models, that is, devices that allow you to remotely view the information available on the user interface of the control panel.
- Page 18 Fire detection and extinguishant system Technical specifications Supply voltage 19-30 V stand-by 110mA Consumption @ during mains failure 80mA 27.6V maximum 130mA Operating temperature from -5°C to +40°C Dimensions 210 x 132 x 32mm Weight 330g The repeaters can be connected to the system via the Hornet+ network (paragraph 3.7 Connecting the Hornet+ network) or via a TCP-IP connection and can also be associated with Previdia Max control panels.
- Page 19 Installation manual Inim Cloud fire The INIM Electronics Cloud service provides Previdia users with an additional way of managing control panels via the Internet. The connection of control panels to the Cloud service is achieved via a web interface (App or any browser) without any need to configure the network on which the control panel is installed.
- Page 20 Fire detection and extinguishant system Chapter 3 Installation Note: The installation of these control panels must be carried out in full compliance with the local fire regulations, the laws and regulations in force, and in accordance with the instructions and relevant guidelines.
- Page 21 Installation manual Mounting the PREVIDIA-C-DIAL and PREVIDIA-C-COM optional modules The PREVIDIA-C-DIAL and PREVIDIA-C-COM modules must be mounted inside the cabinet. Attention: The module installation procedure must be carried out after disconnecting the control panel power supply (220V and batteries). If only one of the optional modules is to be installed, the procedure to be followed is as follows: Open the control panel cabinet by removing the metal front plate and the plastic support of the motherboard (paragraph 2.2 - [O]).
- Page 22 Fire detection and extinguishant system 6. Replace the plastic support and replace the lid. Control panel wiring Attention: Take care to remove all sources of power, including the batteries before starting any wiring operations. Note: The ends of wires must not be soft soldered in points where they are subject to clamping. 3.3.1 Mains connection EN54: The power-supply system of Previdia Compact control panels is EN54-4 compliant.
- Page 23 Installation manual Previdia Compact in small cabinet Note: The end of a stranded wire must not be consolidated with soft soldering points where wire subjected to contact pressure. 2. Crimp the earth line wire to the eyelet terminal [B]. 3. Attach the wire with the eyelet to the control panel using the ground connection screw [C].
- Page 24 Fire detection and extinguishant system Previdia Compact in large cabinet Previdia Compact in small cabinet Connecting the “I/O” terminals Each of the 4 IN/OUT channels of the control panel (terminals 19-20, 21-22, 23-24, 25-26) can be configured as: • supervised output •...
- Page 25 Installation manual Connection of polarized devices (sounders, etc.) to channels configured as outputs I/Ox I/Ox 1KOhm - 1W 1KOhm - 1W brown, black, red brown, black, red The polarities refer to the active status of the output, the polarities invert for stand-by status. EN54: If the control panel default settings are left unchanged, the I/O 1 output will result as being configured as a type C output for the connection of audible/visual signalling devices.
- Page 26 Fire detection and extinguishant system Connection of devices with alarm and fault outputs to channels configured as input The wiring diagram illustrates a connection made to one of I/Ox the “I/O” channels [A], configured as input. The connected device [B] is equipped with a normally closed fault signalling output [C] and a normally open alarm signalling output [D].
- Page 27 Installation manual Loop connections The connection circuits of the peripheral detection/activation devices are defined as “loops”. These loops start from the output terminals, run through the entire protected area connecting in parallel all the system devices before re-entering on the input terminals. The loop utilizes the same two wires for the power supply to devices and for two-way communication.
- Page 28 Fire detection and extinguishant system Cables: 4 wire shielded cable Typical impedance 12Ohm Maximum length 1000m (between two successive control panels) Compliant with local laws and regulations in force Previdia Compact Previdia Compact Previdia Max Port-A Port-B Repeater Previdia Compact Previdia Compact REP Connecting the land-line (PSTN) The control panel can only be connected via the optional Previdia-C-DIAL board.
- Page 29 Installation manual The “I/O” terminals on-board the control panel [A] and the outputs supervised on the loop modules can be used to create an E-type output (output for the activation of alarm signalling on a remote signalling device, as prescribed by standard EN54-2).
- Page 30 Fire detection and extinguishant system Installation...
- Page 31 Installation manual System test INIM Electronics recommends that the entire system be checked completely at regular intervals. For the instructions for system testing and maintenance refer to the Manual for system configuration, commissioning and maintenance. Replacement and disposal of used devices When replacing obsolete devices, disconnect the devices concerned then complete the connections of the new devices in compliance with the instructions printed on the respective leaflets.
- Page 32 Fire detection and extinguishant system ISO 9001 Quality Management certified by BSI with certificate number FM530352 Centobuchi, via Dei Lavoratori 10 63076 Monteprandone (AP) Italy Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz WEEE DCMIINE0PREVIDIAC-110-20200114...
