Configuration manual
Internal layout of the
[A]
selected cabinet
Internal module
[B]
detected
[C]
Position empty
Address and firmware
[D]
revision of detected
module
Map of the entire
[E]
control panel
Layout of the selected
[F]
cabinet
Buttons to carry out
[G]
setting changes or to
exit without saving

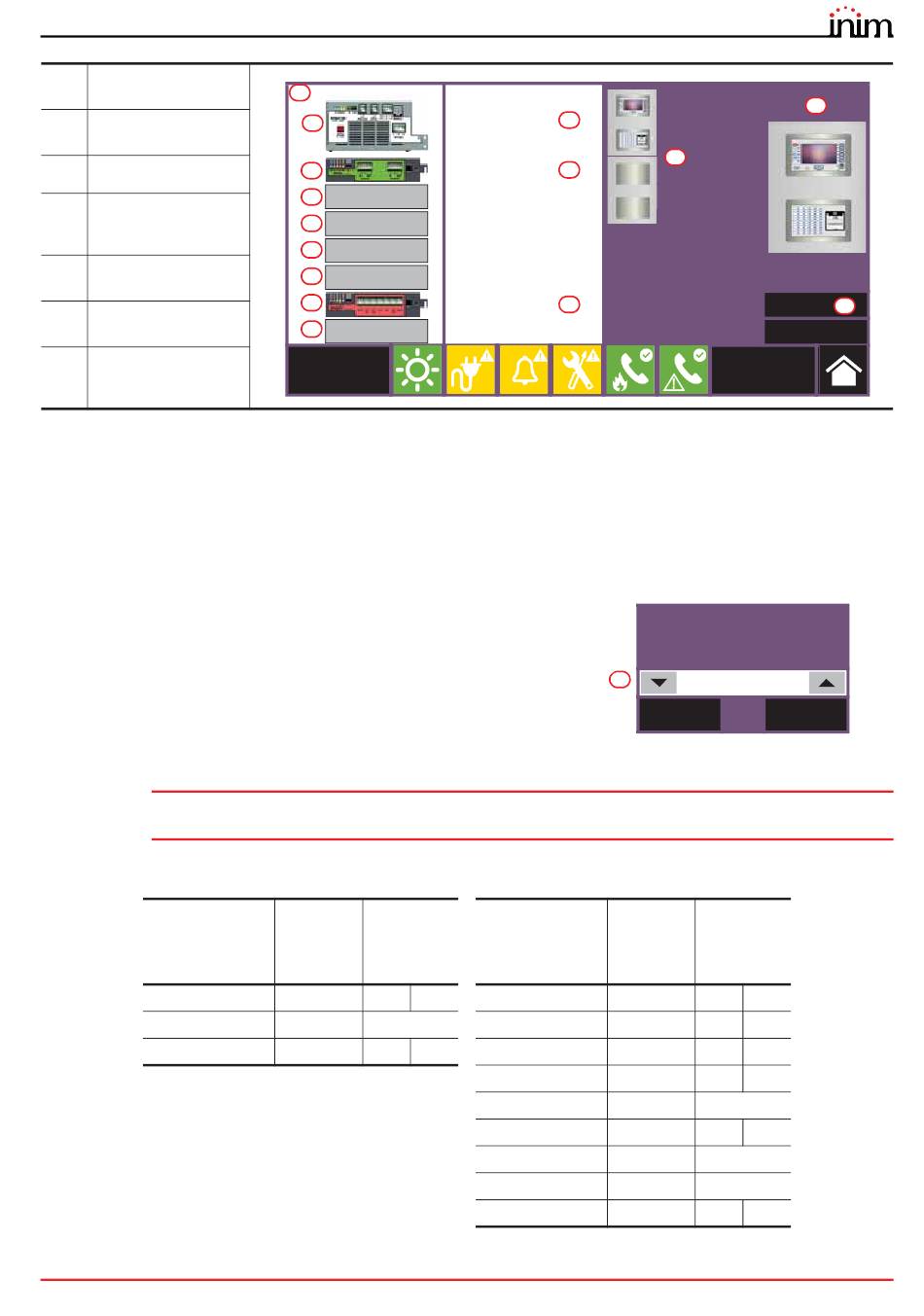

Selection of one of the cabinets from the control panel layout ([E]) will show it both on the left ([A]), where the installed
IFM modules with their addresses and firmware revision are shown, and on the right ([F]), where the installed FPM
external modules are shown. From this section you can access the configuration phase of each module by tapping on
the icon which represents it.
2.4

Addressing IFM and FPM modules

In order for the control panel to identify each module individually, it is
necessary to assign an address to each one. It is possible to assign the same
address to modules of different types, however, modules of the same type
must have different addresses.
To assign an address to a module, it is necessary to tap on the module
shown in the section it belongs to (internal IFM modules on the left [A]; FPM
front-plate modules on the right [F]).
A window will open ([H]), select the desired address in the programming
field, then tap on Set.
Note:
Addresses which exceed the maximum number of modules supported by the control panel will not be
considered valid.
Following is a table containing the addresses allowed for each type:
FPM Module
FPMLED
FPMLEDPRN
FPMEXT
Configuration
A
N.01 FW:1.0.0.
B
B N.02 FW:1.0.0.
C
C
C
C
B
N.12 FW:1.0.0.
C
Access level:3
Address
Maximu
m
fro
number
to
m
7 1 7
1 /
5 1 5
D
D
D
Module xxx
Address
H
Esc
Maximu
IFM Module m
number
IFM24160 4
IFM2L 8
IFM4R 16
IFM4IO 16
IFMDIAL 1
IFM16IO 4
IFMNET 1
IFMLAN 1
IFMEXT 24
F
E
G
Set
Esc
