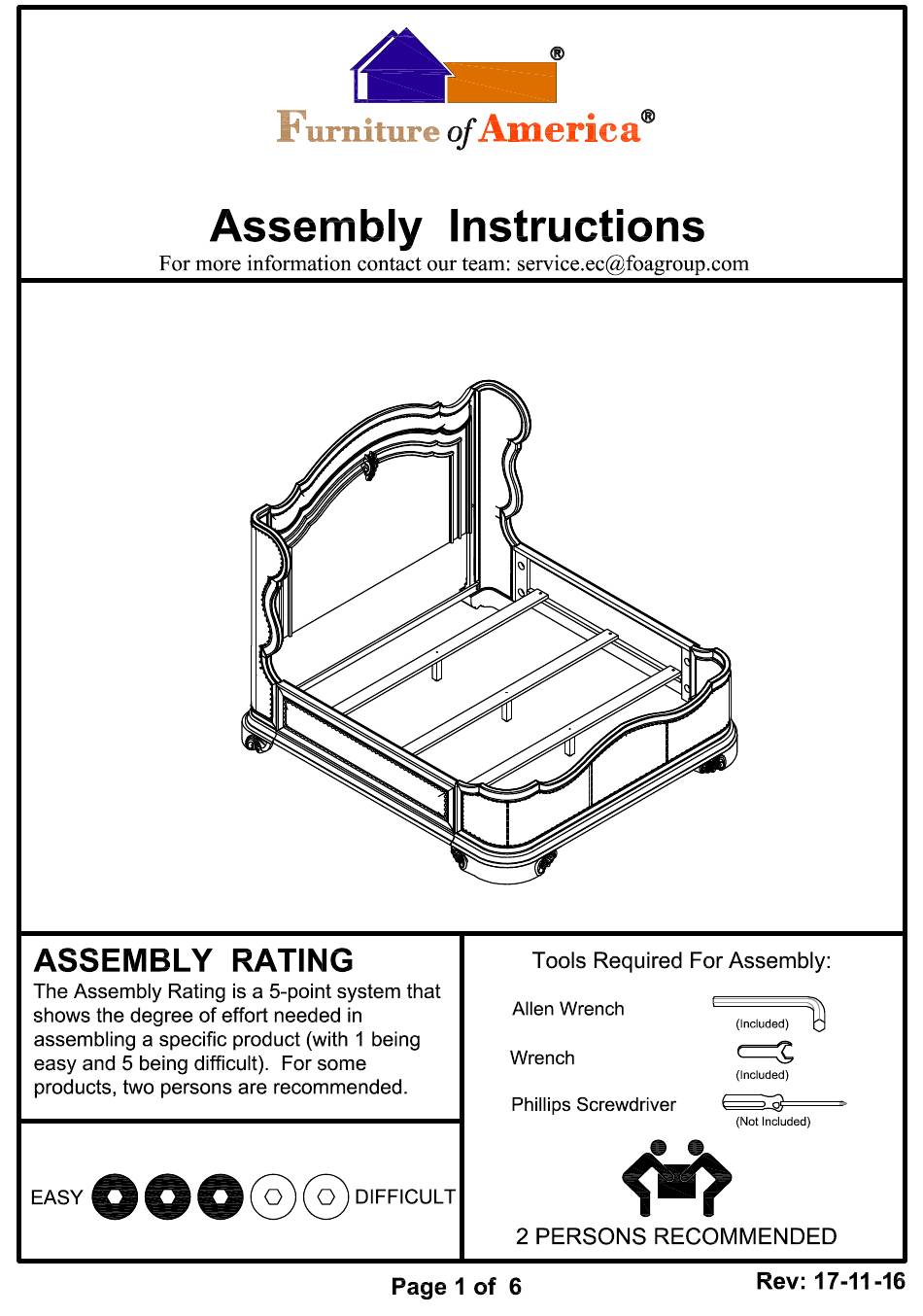

- Page 1 CM7859Q...
- Page 4 Prepare 8 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align headboard legs (#2R/L) to the holes of the headboard (#1). Secure with bolts (#A). Prepare 4 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align headboard support (#5) to the holes of the headboard (#1), then secure with bolts (#A).
- Page 5 Attach threaded pins (#F) to the holes of the headboard (#1) and footboard (#3). Align side rails (#4) to the threaded pins (#F) that are attached to headboard (#1) and footboard (#3). Secure by using nylon washer (#H), then hex nut (#G). Attach support legs (#7) into each slats (#6).
- Page 6 Align slats (#6) to the side rails (#4), then secure with screws (#E).
- Page 7 CM7859EK/CK...
- Page 10 Prepare 8 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A). Align headboard legs (#2R/L) to the holes of the headboard (#1). Secure with bolts (#A). Prepare 4 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A).
- Page 11 Attach threaded pins (#F) to the holes of the headboard (#1) and footboard (#3). Align side rails (#4) to the threaded pins (#F) that are attached to headboard (#1) and footboard (#3). Secure by using nylon washer (#H), then hex nut (#G). Attach support legs (#7) into each slats (#6).
- Page 12 Align slats (#6) to the side rails (#4), then secure with screws (#E).
