VERSION # 19-08-02
1 / 9

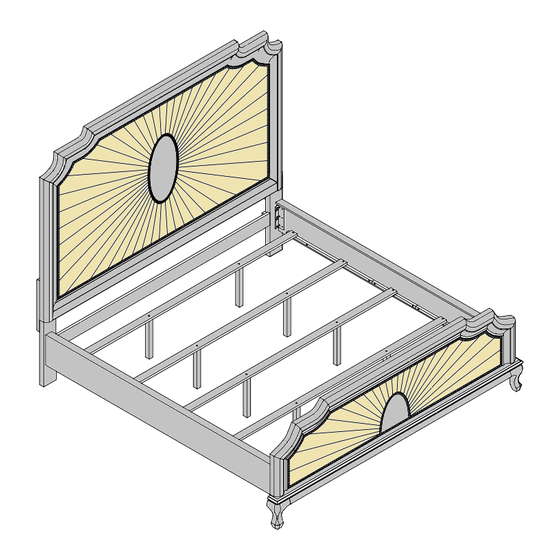

MODEL #
CM7864CK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - Persons
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7864CK
Summary of Contents for Furniture of America CM7864CK
- Page 1 MODEL # CM7864CK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - Persons Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 9...
- Page 5 CM7864CK #1 1pc #2 2pcs #3 1pc #4 1pc #5 2pcs #6 4pcs #7 8pcs #8 2pcs Ø1/4" #A 16pcs #B 4pcs #C 20pcs #D 20pcs Bolt #E 1pc #F 8pcs #G 12pcs #4 x 5 / 9...
-
Page 6: Exploded View
Exploded View 6 / 9... - Page 7 ASSEMBLY INSTRUCTIONS Align HB legs (#2R/L) to the headboard (#1) and HB support (#3), then secure by using bolts (#A) with washers (#C,D). Part #1 x1pc Part #2 x2pcs Part #3 x1pc Hardware #A x16pcs Hardware #C x16pcs Hardware #D x16pcs Part #4 x1pc Align legs (#5) to the footboard (#4),...
- Page 8 ASSEMBLY INSTRUCTIONS Align side rails (#8) to the headboard (#1) and footboard (#4), then secure by using bolts (#G). Part #8 x2pcs Hardware #G x12pcs Part #6 x1pc Attach support legs (#7) to the slats (#6). Part #7 x2pcs 8 / 9...
- Page 9 ASSEMBLY INSTRUCTIONS Align slats (#6) to the side rails (#8), then secure by using screws (#F). Hardware #F x8pcs 9 / 9...
