Forward
Thank you for purchasing Plug-On XLR Transmitter TX3-XLR. This
product offers wide frequency range, 96 channels, OLED display, +48V
phantom power and silent function. By converting the microphone from
wired to wireless, TX3-XLR provides stable, reliable and portable
wireless audio solutions for video recording, journalistic shooting, audio
recording, etc. Please read this manual carefully before using to make
sure the correct operation and exert the optimum function.
Product Features
• UHF Frequency Range: 514MHz-596MHz
• There are 96 wireless channels which can be freely switched without
interference
• High and stable sound quality like broadcast
• The maximum wireless distance up to 60m
• With OLED display to show the parameters setting
• With output volume control and silence function
• The power of transmitter is adjustable
(Note: as the max. support frequency is 514MHz-596MHz which includes the 96
wireless channel's frequency, there are parts of frequency may not be ultilized.)
Warning
Do not disassemble. Should repairs become necessary, this product
must be sent to an authorized maintenance center.
Always keep this product dry. Do not use in rain or in damp
conditions.
Keep out of reach of children.
Do not use the flash unit in the presence of flammable gas. In
certain circumstance, please pay attention to the relevant warnings.
Do not leave or store the product if the ambient temperature reads
over 40℃.
Turn off the flash trigger immediately in the event of malfunction.
Observe precautions when handling batteries
- Use only batteries listed in this manual. Do not use old and new batteries or batteries
of different types at the same time.
- Read and follow all warnings and instructions provided by the manufacturer.
- Batteries cannot be short-circuited or disassembled.
- Do not put batteries into a fire or apply direct heat to them.
- Do not attempt to insert batteries upside down or backwards.
- Batteries are prone to leakage when fully discharged. To avoid damage to the
product, be sure to remove batteries when the product is not used for a long time or
when batteries run out of charge.
- 07 -
-
Should liquid from the batteries come into contact with skin or clothing, rinse
immediately with fresh water.

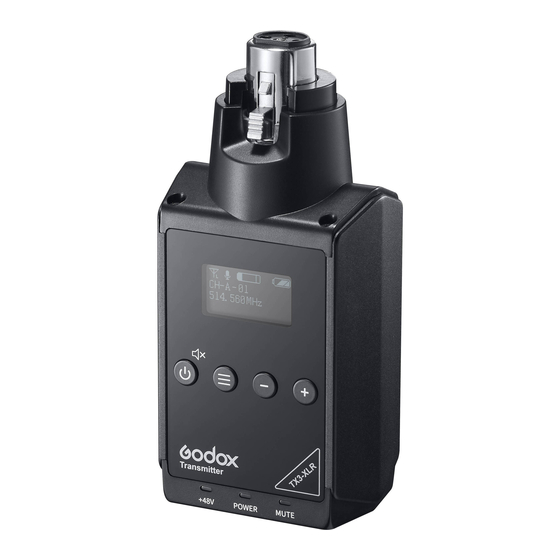

Names of Parts
1
2
3
4
1. XLR audio input jack
2. OLED Display
3. Power/Mute Button
4. Menu Button
5. Menu +/-
6. +48V Switch LED Indicator
- Green light：ON
- Red light：OFF
7. Power Indicator
- Green light: full battery level.
- Red light: Low battery level.
8. Audio Indicator
- Green light:Sound directivity mode.
- Red light: Silent mode.
9. Body
10. Battery Compartment
11. Battery Switch
12. XLR Locking Ring
