Summary of Contents for National Instruments NI-9866

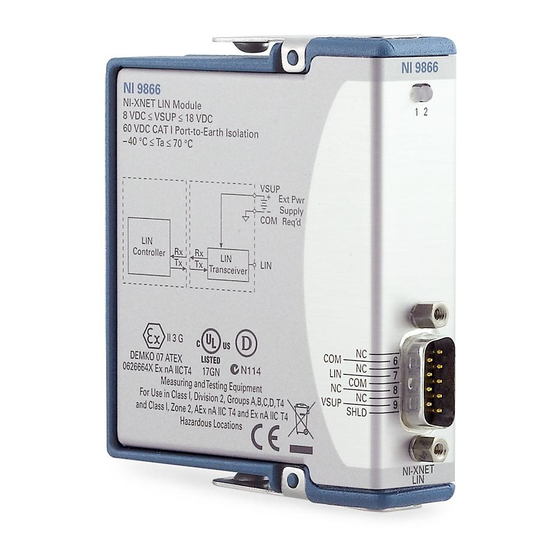

- Page 1 NI-9866 Getting Started 2022-07-06...
-
Page 2: Table Of Contents
NI-9866 Specifications........ -
Page 3: Overview
Safety Guidelines for Hazardous Locations The NI-9866 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4 Gc and Ex nA IIC T4 hazardous locations; and nonhazardous locations only. - Page 4 II 3G and is suitable for use in Zone 2 hazardous locations, in ambient temperatures of -40 °C ≤ Ta ≤ 70 °C. If you are using the NI-9866 in Gas Group IIC hazardous locations, you must use the device in an NI chassis that has been evaluated as Ex nC IIC T4, Ex IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.
-
Page 5: Wiring The Ni 9866
Caution You must use a UL listed ITE power supply marked LPS with the NI-9866. The NI-9866 requires an external power supply of +8 to +18 V to operate. Supply power to the NI-9866 V pin from the LIN bus. -
Page 6: Cabling Requirements For The Ni 9866
NI-9866 Getting Started Connector Signal Name Table 1. Pin Assignments for the NI-9866 Cabling Requirements for the NI 9866 This section deals with cabling specifications, termination resistors, cable lengths, and the number of LIN nodes that can exist in a system. -
Page 7: Ni 9866 Hardware Overview
NI-9866 Getting Started NI 9866 Hardware Overview The NI-9866 has one full-featured LIN port that is isolated from the other modules in the system. The port has a LIN controller that is fully compliant with the LIN 1.3/2.0/2.1/2.2 Specification. The port also has an NXP TJA1028 LIN transceiver that is fully compatible with the LIN 1.3/2.0/2.1/2.2 and SAE J2602 standard and supports... -
Page 8: Physical Characteristics
NI-9866 Getting Started Physical Characteristics Dimensions Visit ni.com/dimensions and search by module number. Weight Approx. 144 g (5.0 oz) Safety Voltages Connect only the voltages that are within these limits: Supply voltage range (Vsup) +8 V DC to +18 V DC... -
Page 9: Environmental
NI-9866 Getting Started Note For safety certifications, refer to the product label or the Product Certifications and Declarations section. Hazardous Locations U.S. (UL) Class I, Division 2, Groups A, B, C, D, T4; Class I, Zone 2, AEx nA IIC T4 Gc Canada (C-UL) Class I, Division 2, Groups A, B, C, D, T4;... -
Page 10: Electromagnetic Compatibility
NI-9866 Getting Started Operating shock 30 g, 11 ms half sine; 50 g, 3 ms half sine; 18 shocks at 6 orientations Electromagnetic Compatibility This product meets the requirements of the following EMC standards for electrical equipment for measurement, control, and laboratory use: EN 61326 (IEC 61326): Class A emissions;... -
Page 11: 电子信息产品污染控制管理办法（中国 Rohs
NI product. Product registration facilitates technical support and ensures that you receive important information updates from NI corporate headquarters is located at 11500 N Mopac Expwy, Austin, TX, 78759-3504, USA. © National Instruments © 2022 National Instruments Corporation.
