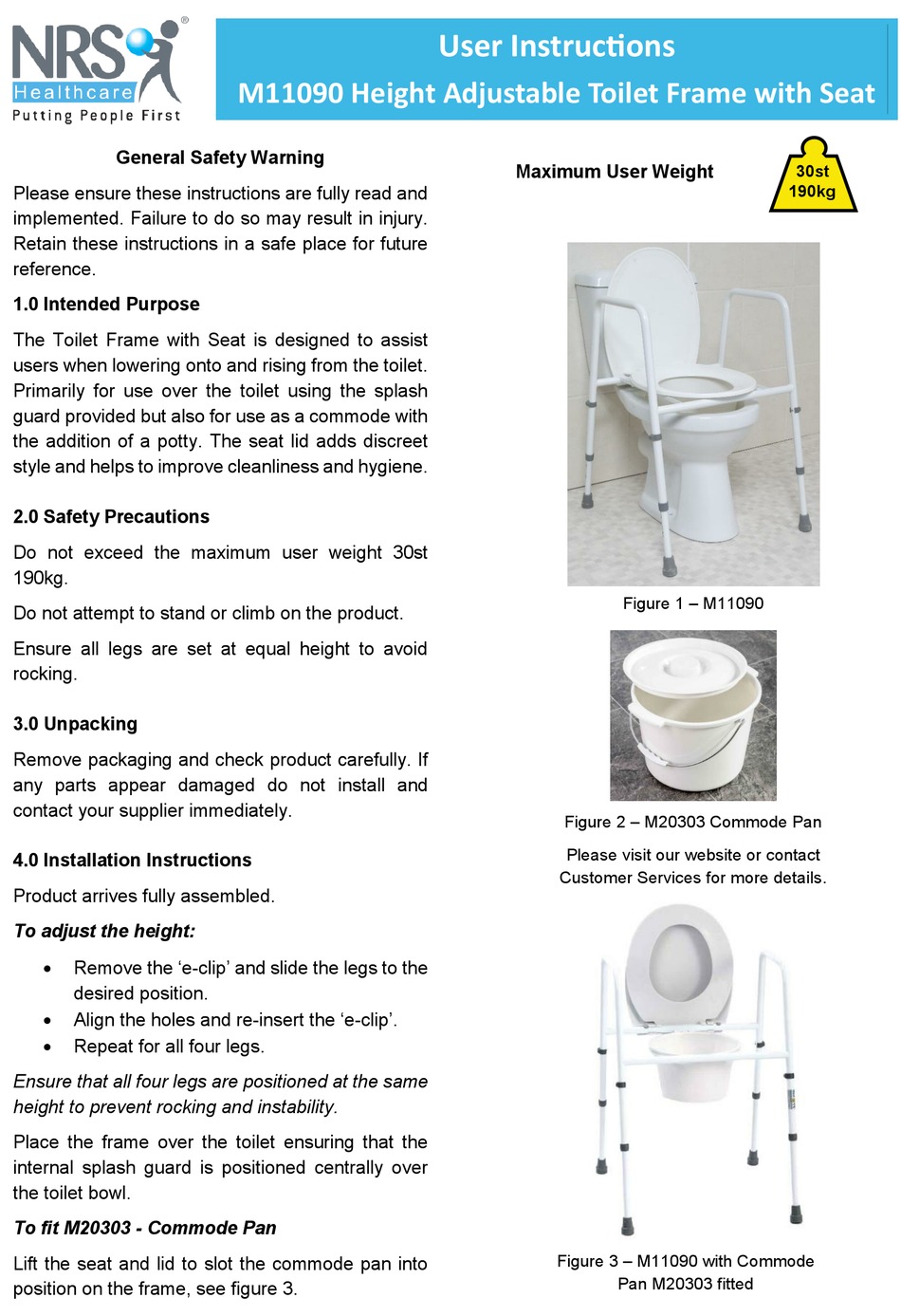

NRS Healthcare M11090 User Instructions

General Safety Warning
Please ensure these instructions are fully read and
implemented. Failure to do so may result in injury.
Retain these instructions in a safe place for future
reference.
1.0 Intended Purpose
The Toilet Frame with Seat is designed to assist
users when lowering onto and rising from the toilet.
Primarily for use over the toilet using the splash
guard provided but also for use as a commode with
the addition of a potty. The seat lid adds discreet
style and helps to improve cleanliness and hygiene.
2.0 Safety Precautions
Do not exceed the maximum user weight 30st
190kg.
Do not attempt to stand or climb on the product.
Ensure all legs are set at equal height to avoid
rocking.
3.0 Unpacking
Remove packaging and check product carefully. If
any parts appear damaged do not install and
contact your supplier immediately.
4.0 Installation Instructions
Product arrives fully assembled.
To adjust the height:

Remove the 'e-clip' and slide the legs to the
desired position.

Align the holes and re-insert the 'e-clip'.

Repeat for all four legs.
Ensure that all four legs are positioned at the same
height to prevent rocking and instability.
Place the frame over the toilet ensuring that the
internal splash guard is positioned centrally over
the toilet bowl.
To fit M20303 - Commode Pan
Lift the seat and lid to slot the commode pan into
position on the frame, see figure 3.
M11090 Height Adjustable Toilet Frame with Seat
User Instructions
Maximum User Weight
Figure 2 – M20303 Commode Pan
Please visit our website or contact
Customer Services for more details.
Figure 3 – M11090 with Commode
Figure 1 – M11090
Pan M20303 fitted
30st
190kg
