Intermec CK1 Quick Start Manual

What Is the Battery Charger?
The CK1 Battery Charger (P/N 073660) is an accessory for the CK1 Handheld Computer. You
use the battery charger to charge the CK1 battery (P/N 073659).
This guide explains how to install and use the battery charger. Before using the battery
charger, please read this guide thoroughly and save it for future reference.
What You Need
To use the battery charger, you need one of the following AC power supplies:
Region Part Number
Australia 073855
Europe 073853
United Kingdom 073852
United States 073854
You must use the appropriate Intermec power supply with this device or
equipment damage may occur.
Attention: Vous devez utiliser la source d'alimentation Intermec
adéquate avec cet appareil sinon vous risquez d'endommager
l'équipement.

Charging Batteries

You can charge the CK1 battery (P/N 073659) in the CK1 battery charger. The battery charger
fully charges the battery in about 5 hours.

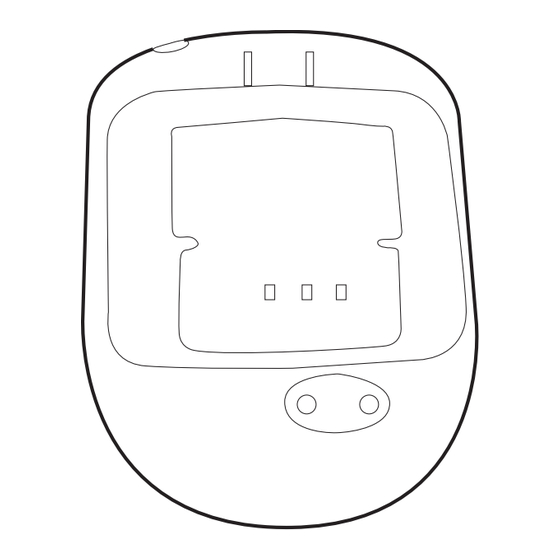

To charge batteries
•
With the contacts on the battery aligned with
the contacts on the charger, slide the battery
into the slot.
The Charging light for that slot changes to green
or red to indicate the battery charge status. See
"Understanding the Lights" to learn what the
Charging light colors mean.
CK1 Battery Charger Quick Start Guide
Understanding the Lights
This table explains what the different colors of the Charging and Power lights mean.
Light Color Description
Charging Red The battery charger is charging the battery.
Battery
Green The battery is fully charged.
contacts
Power Off The battery charger is not receiving power. Make sure the AC
power supply is connected properly.
Green The battery charger is connected to AC power and is ready to
charge.
Power
light
Charging
light
